System Diagram
System Diagram

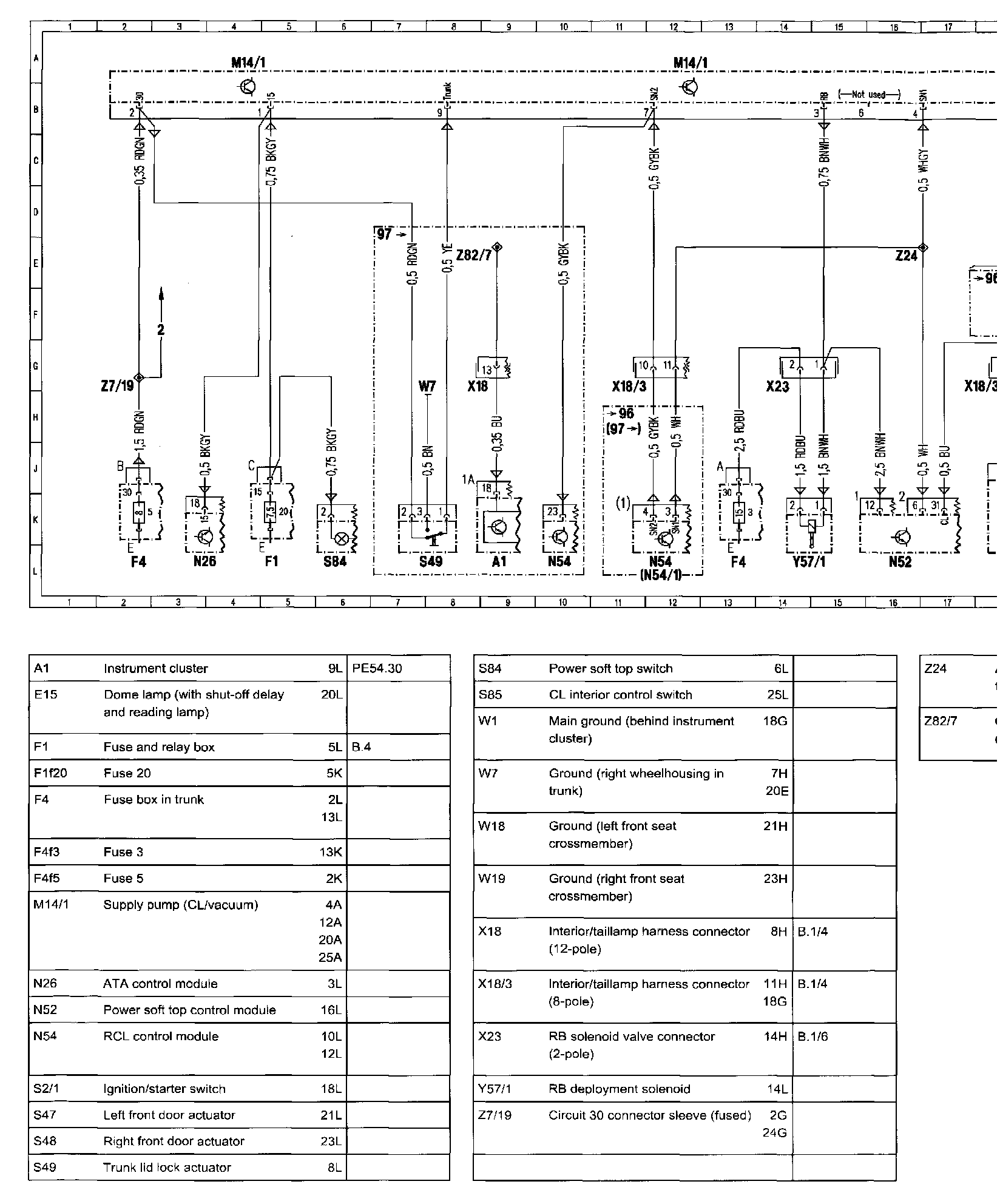

Wiring Diagram
qkhDPE80.20-U-2000YA:

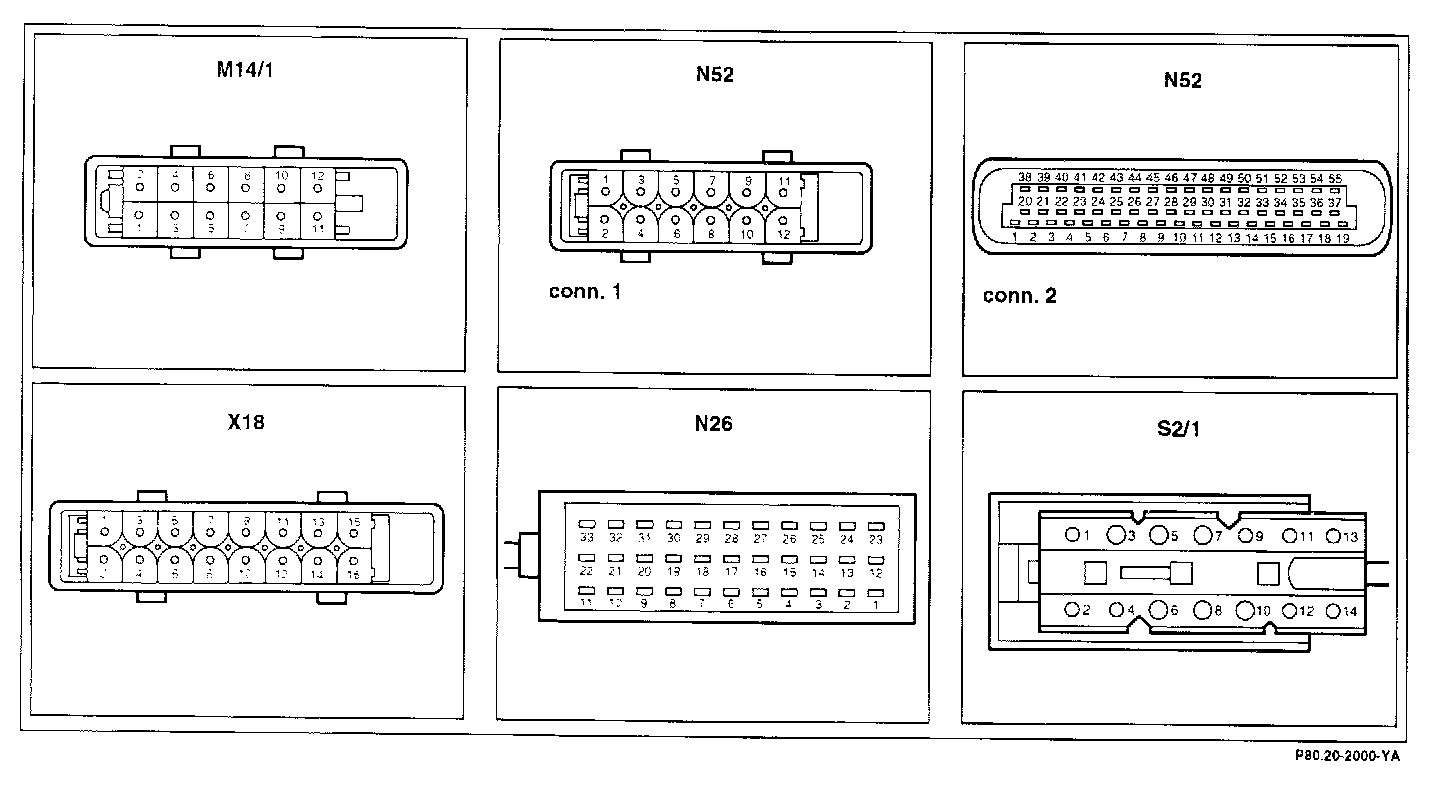

Connector Assignment:
Pin Information:
All values measure to ground unless otherwise noted.
