Auto Dimming Inside Rear View Mirror PE68.49-U-2000YB
Auto Dimming Inside Rear View Mirror PE68.49-U-2000YB

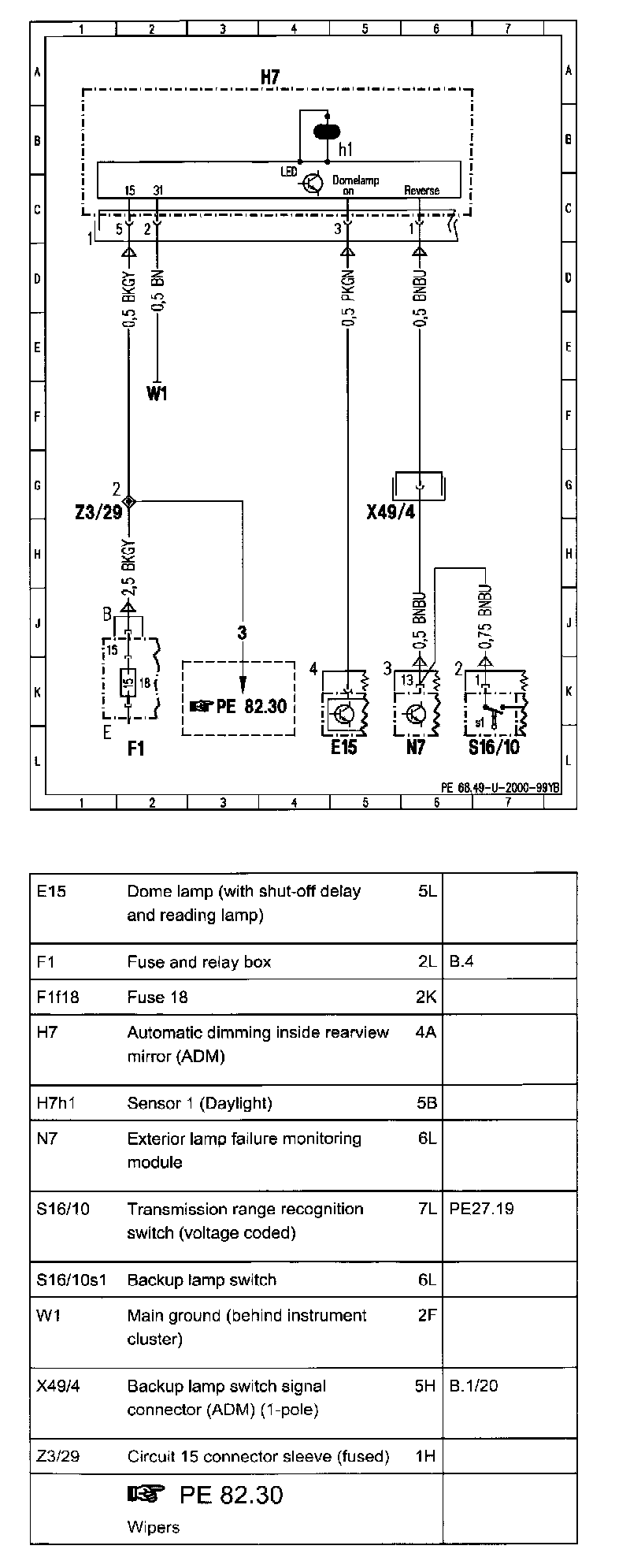

Wiring Diagram
PE68.49-U-2000YB:
Connector Assignment:

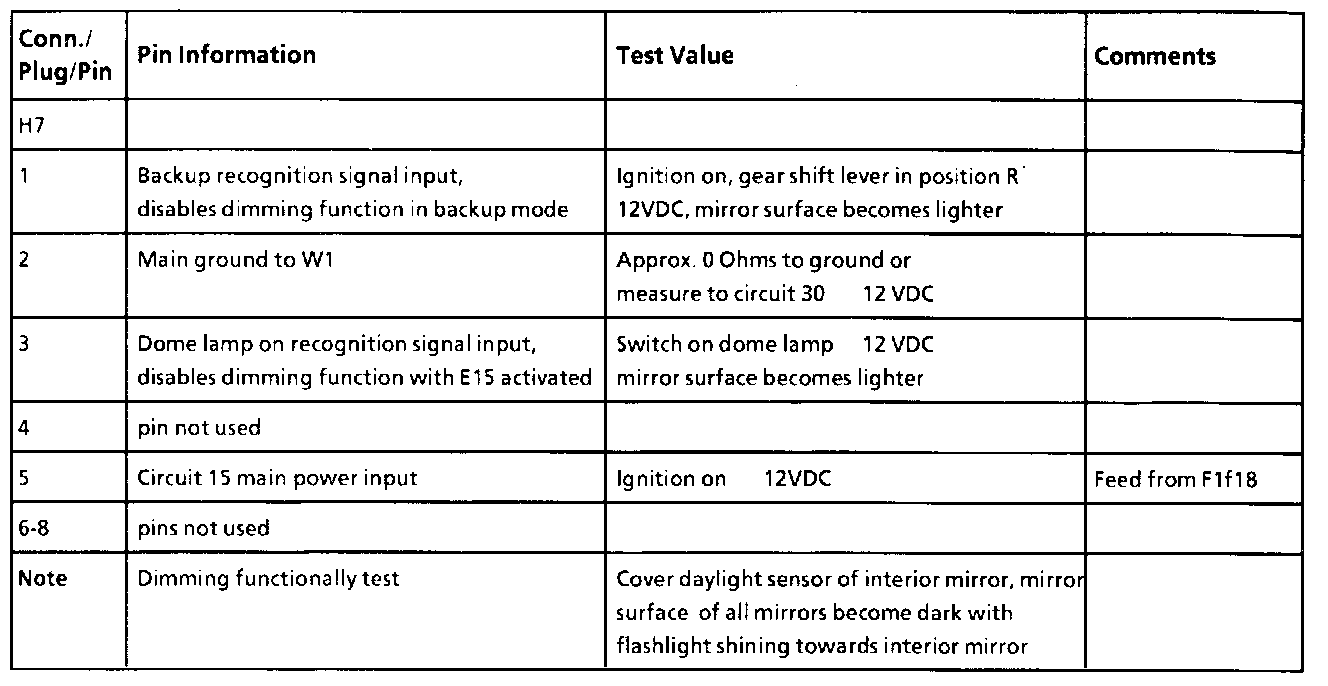

Pin Information:
All values measured to ground unless otherwise noted.
