Base Module PE54.21-U-2400YE
Base Module PE54.21-U-2400YE
Base Module
����1�PE54.21-U-2400YE:

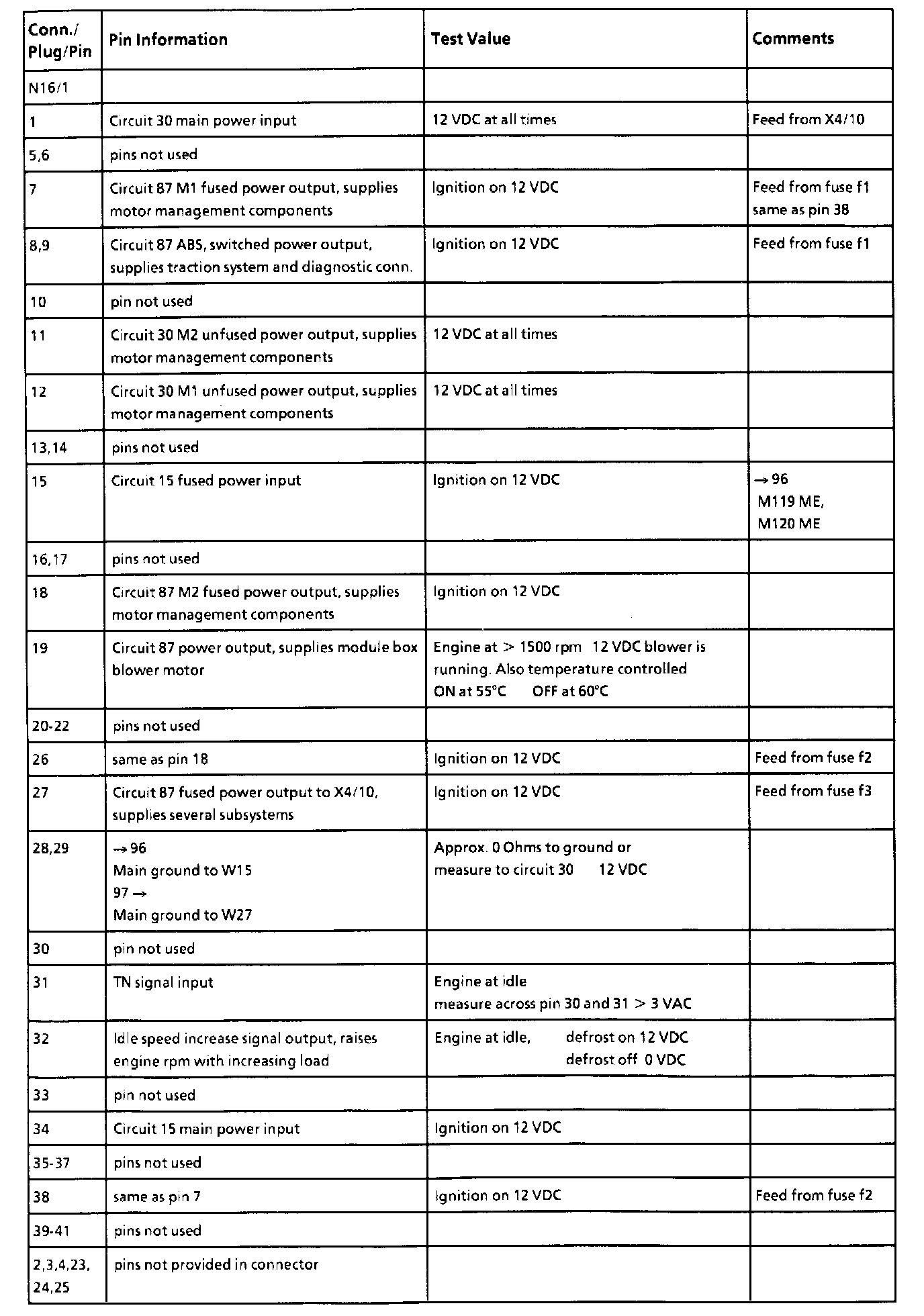

Connector Assignment:
Pin Information:
