System Diagram

Starter, Generator PE15.00-U-2000YD

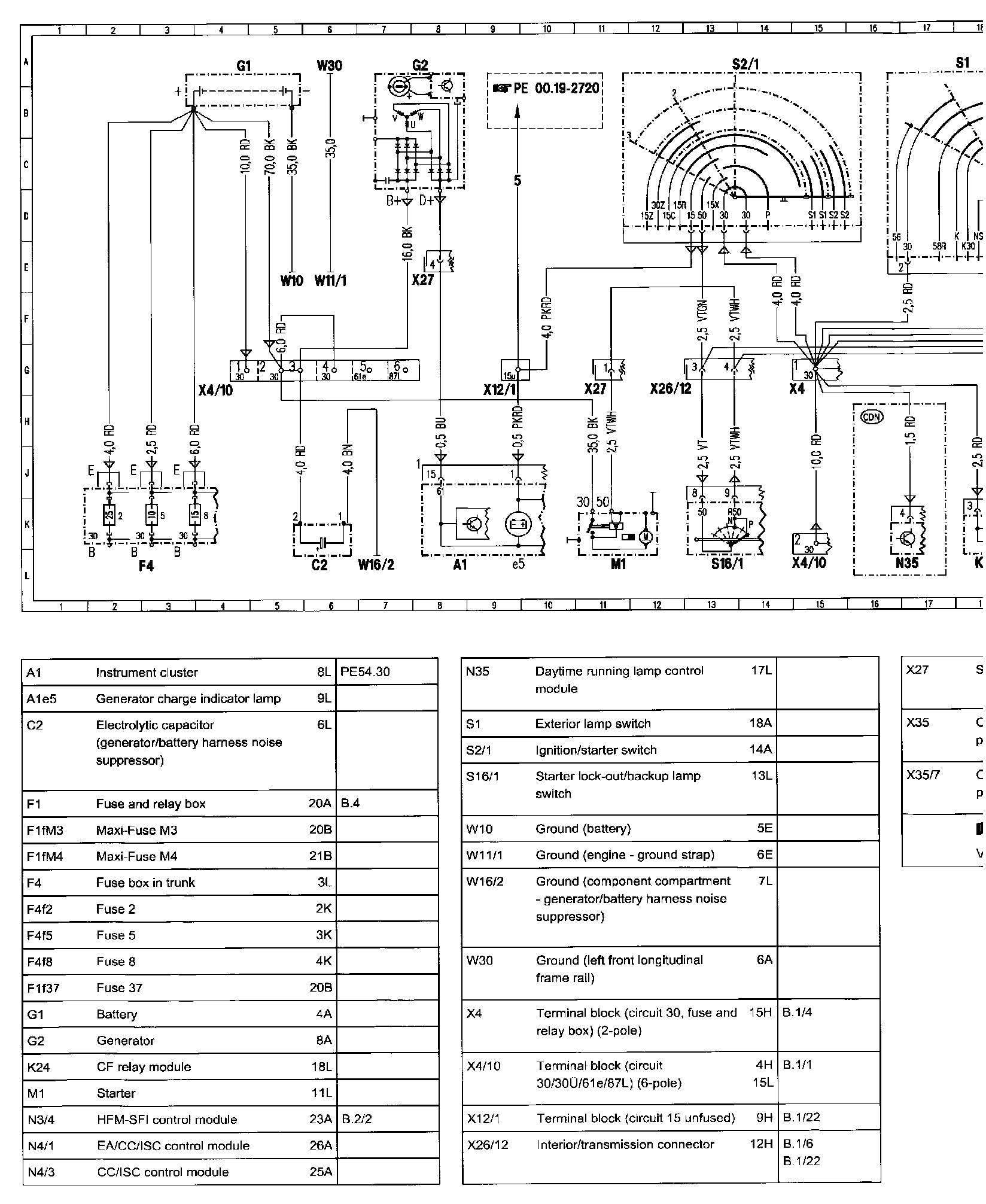

Wiring Diagram

�3H'PE15.00-U-2000YD - Starter, Generator:

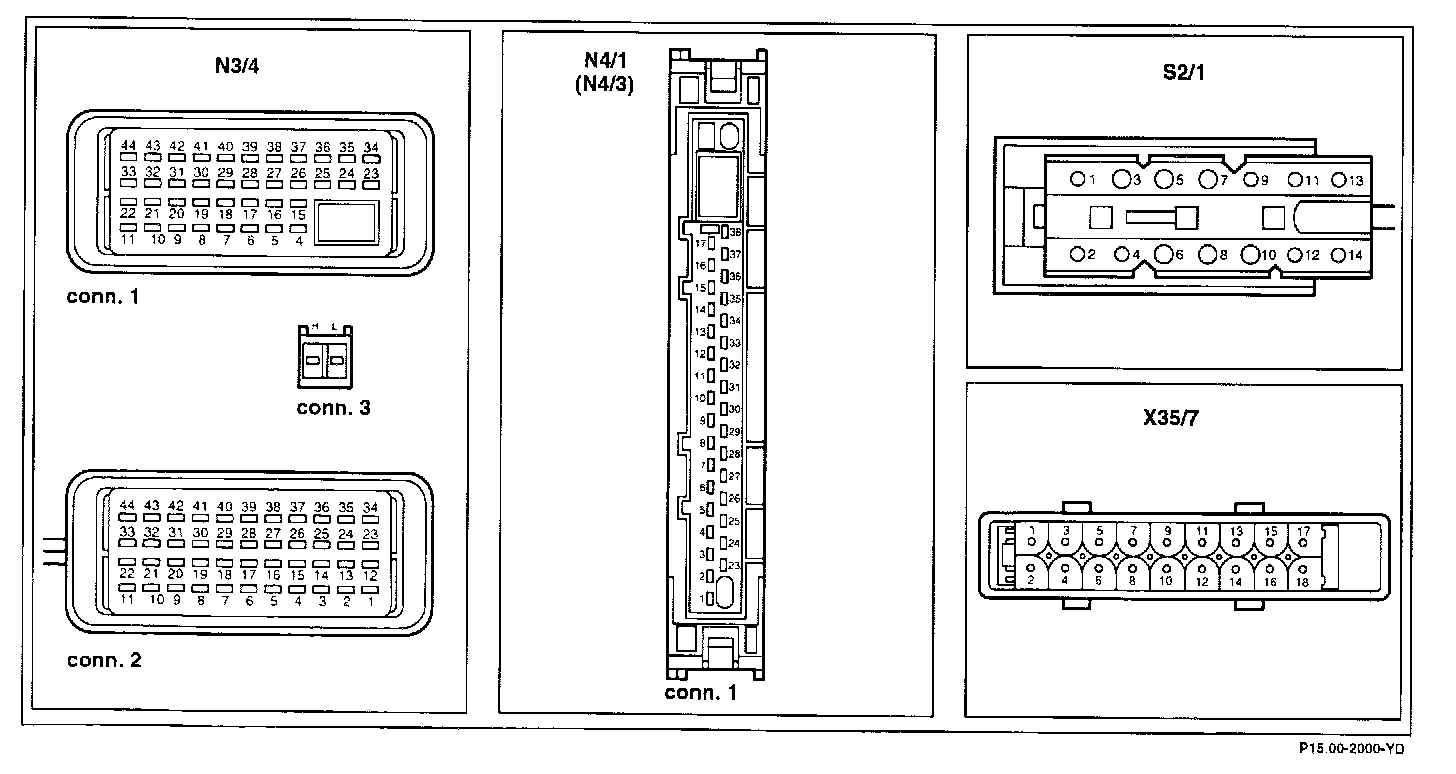

Connector Assignment:

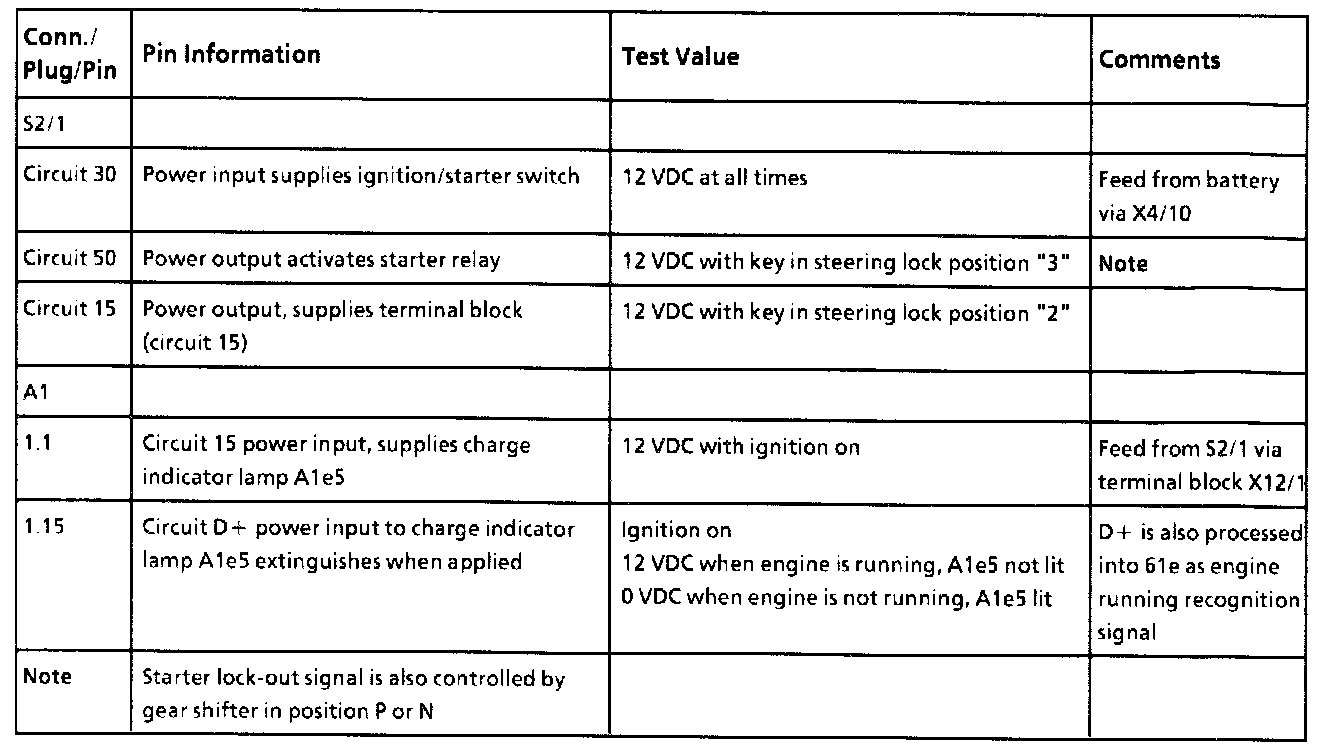

Pin Information:

All values measured to ground unless otherwise noted.
