Steering Column

Electric Steering Column Adjustment (ESC) PE46.15-U-2000YB

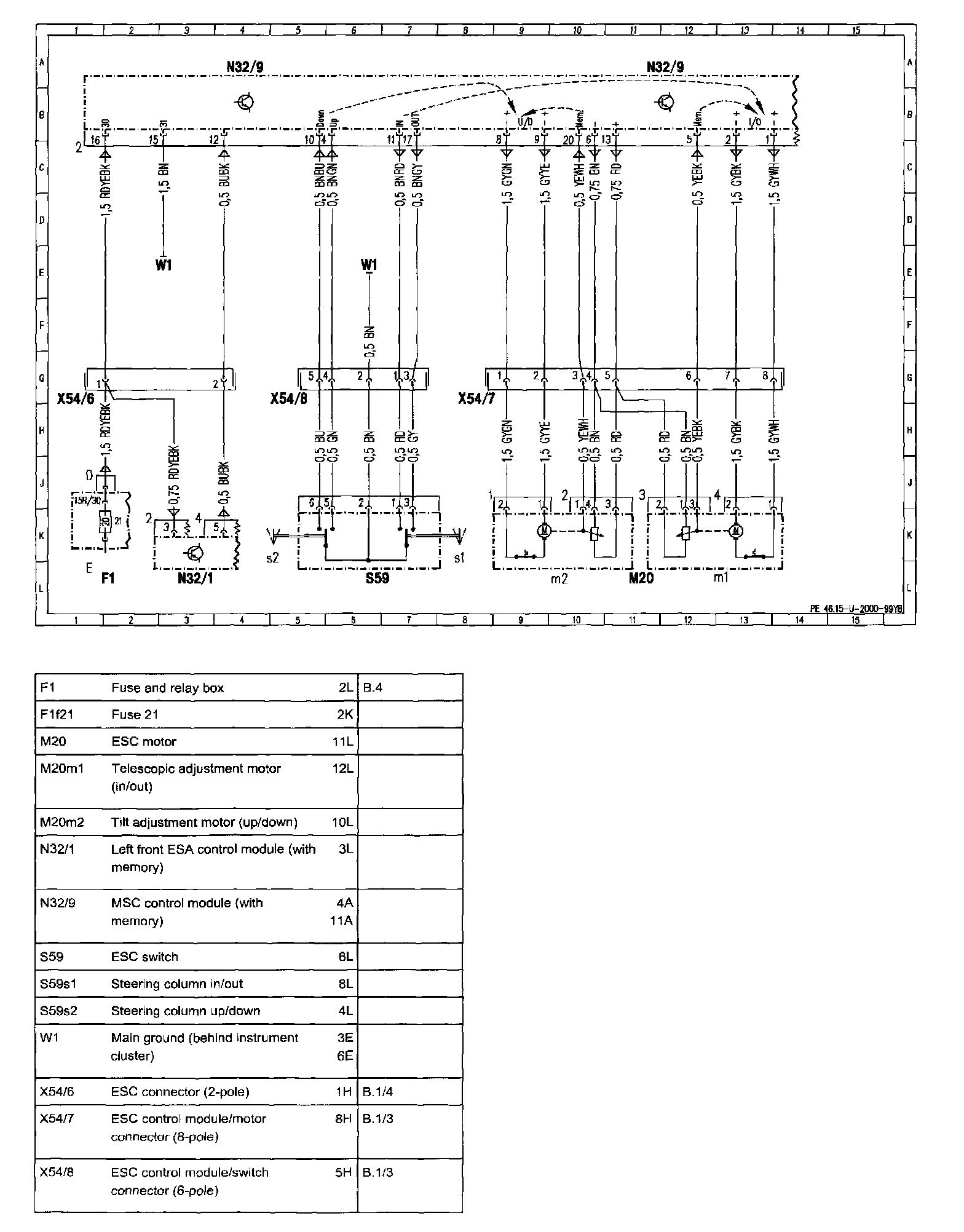

Wiring Diagram

Electric Steering Column Adjustment (ESC) PE46.15-U-2000YB:

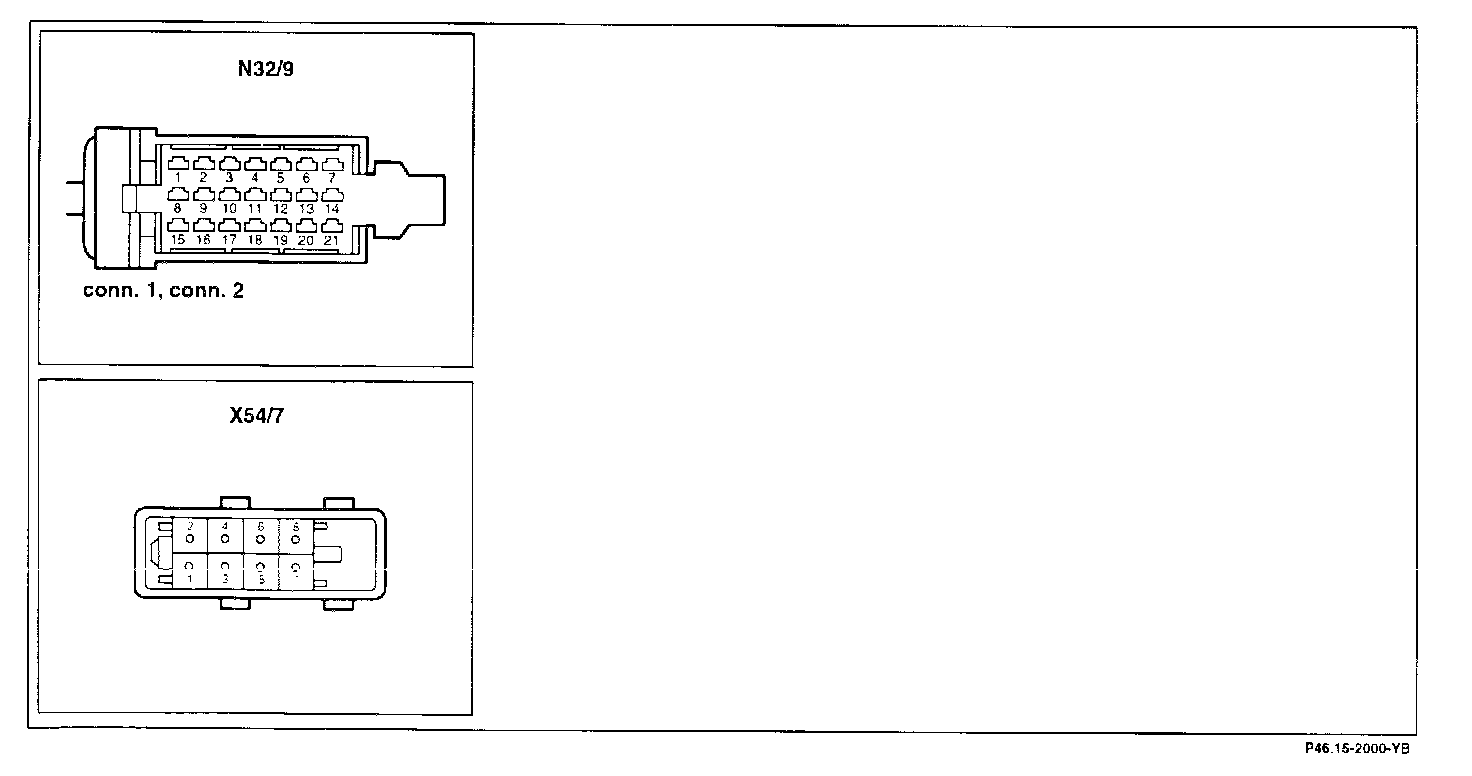

Connector Assignment:

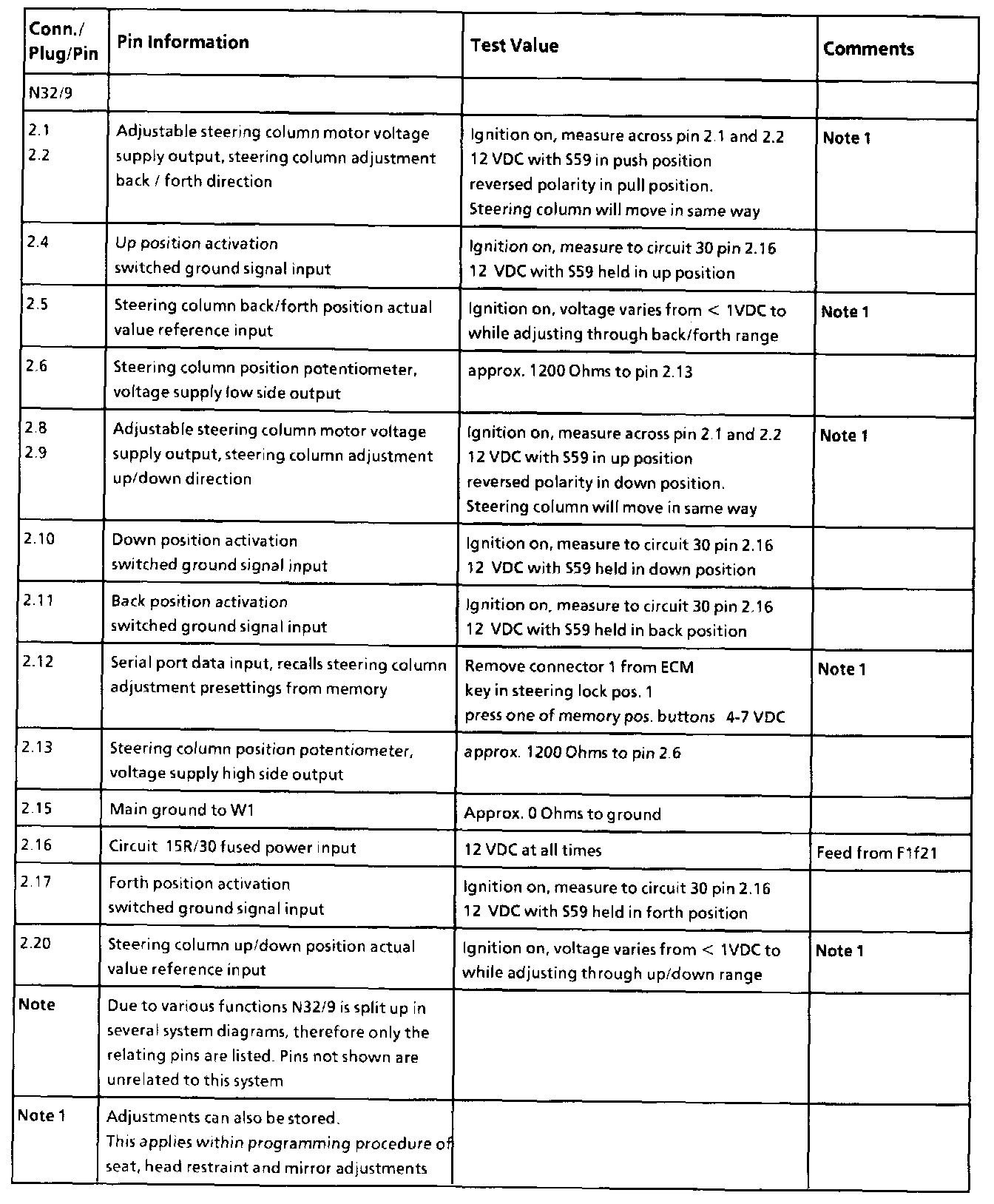

Pin Information:

All values measured to ground unless otherwise noted.
