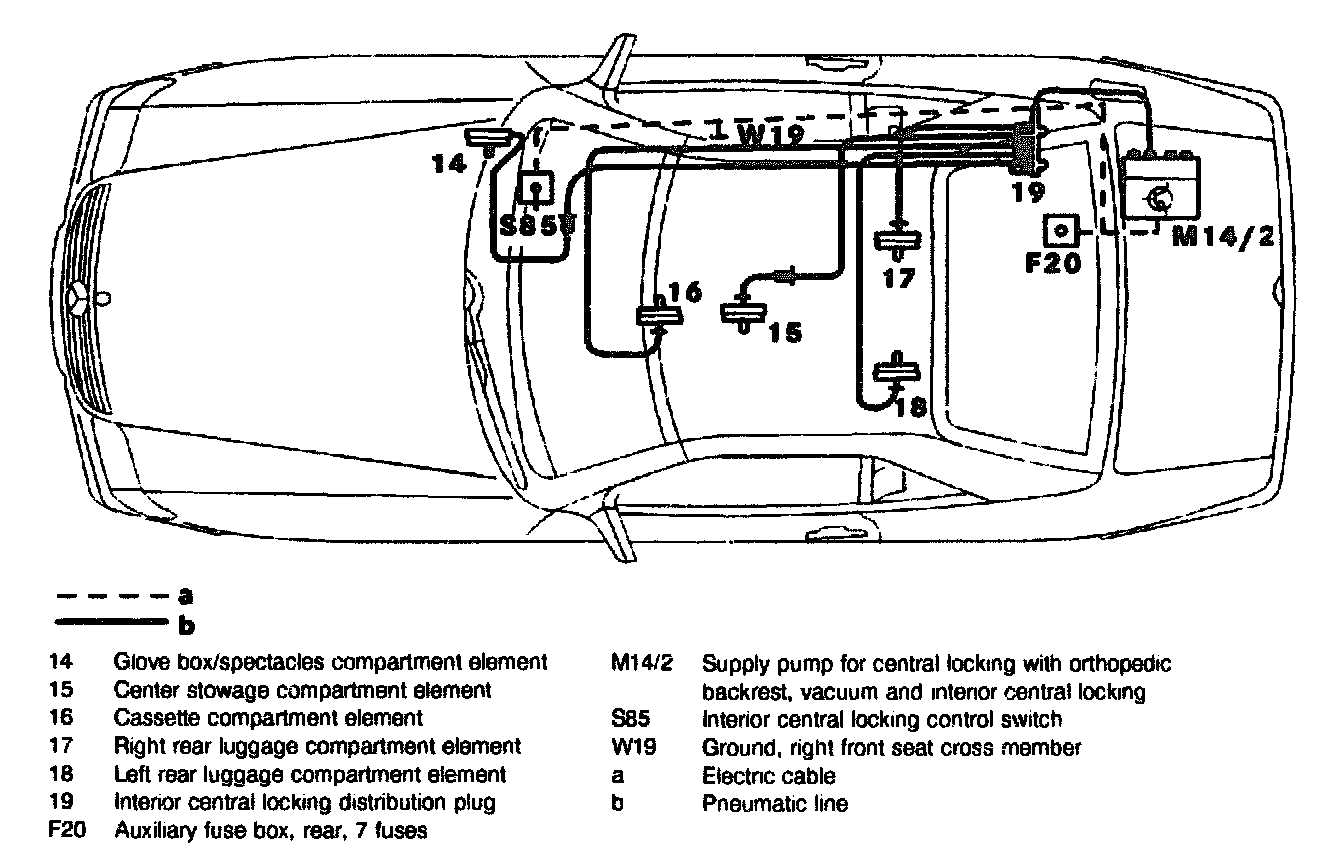

Function Diagram Of Interior Central Locking
Function Diagram Of Interior Central Locking
Version 2 as of 09/95
