Circuit 30 Wiring PE00.19-U-2710YB
Circuit 30 Wiring PE00.19-U-2710YB

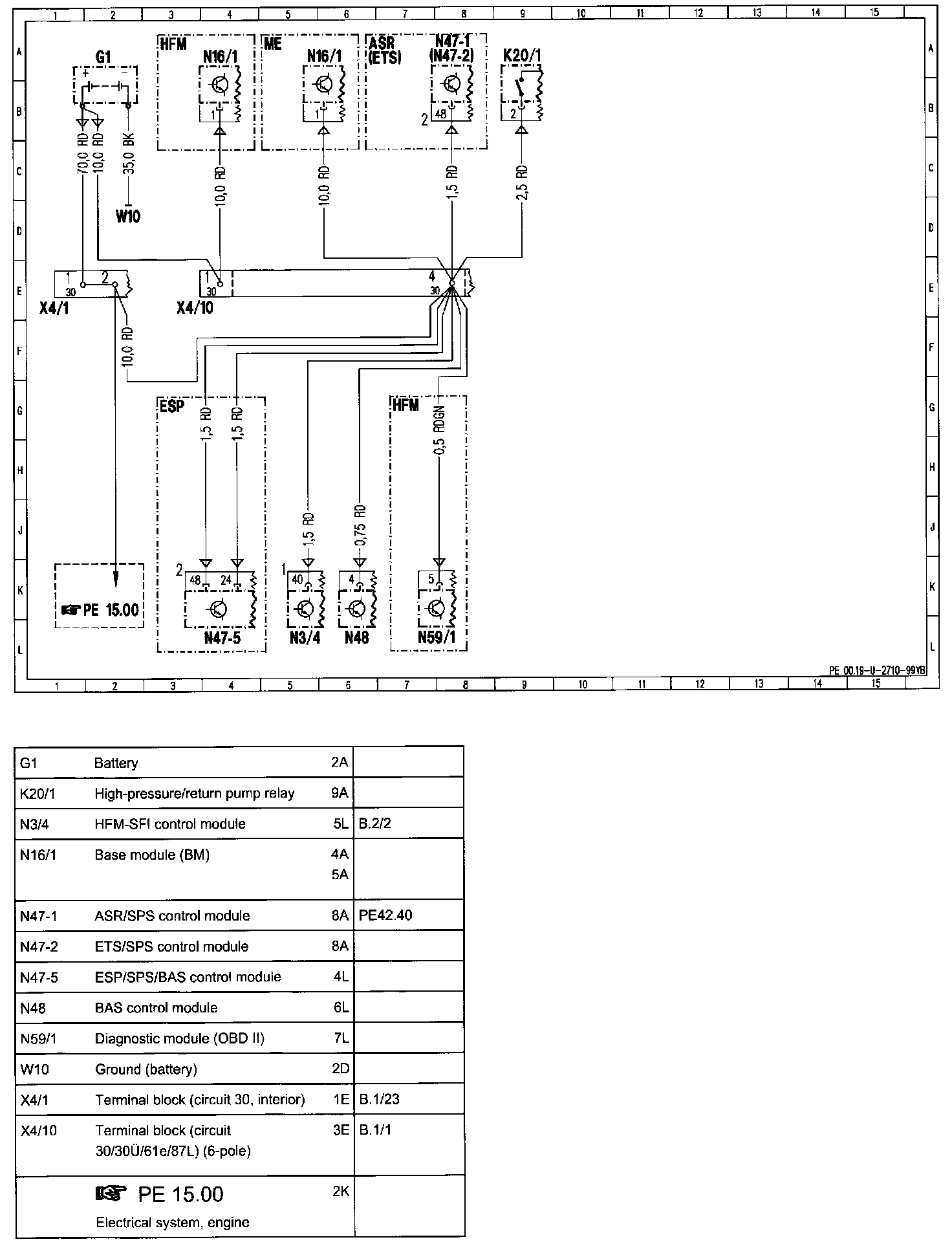

Circuit 30 Wiring (Voltage Distribution Via Terminal Block X4/10)
PE00.19-U-2710YB:
Connector Assignment:
