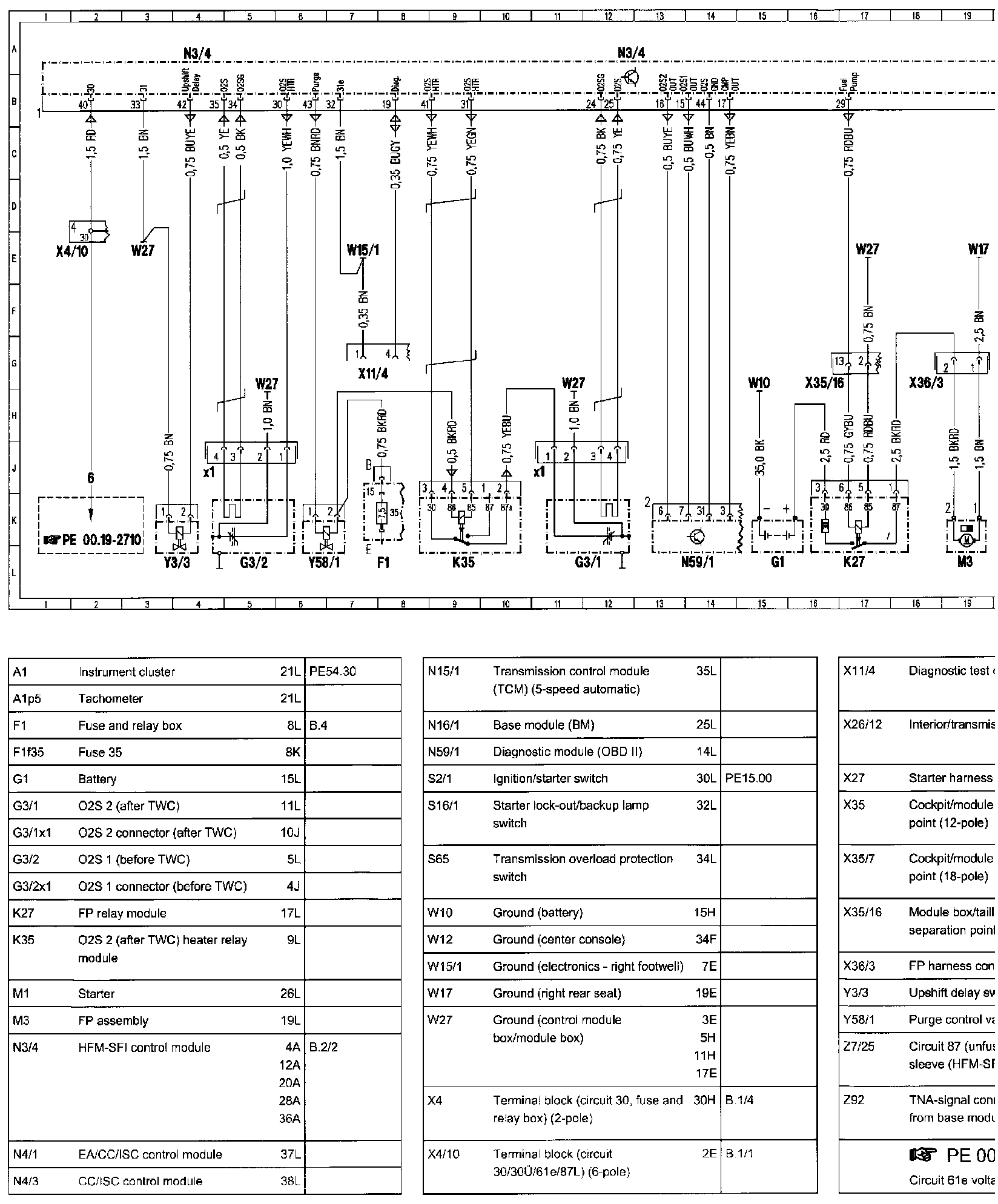

HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YC (Interior)
HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YC (Interior)
<, [t PE07.51-U-2000YC - HFM-SFI Fuel Injection/ Ignition System:
