HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YD (Engine)
HFM-SFI Fuel Injection/Ignition System PE07.61-U-2000YD (Engine)

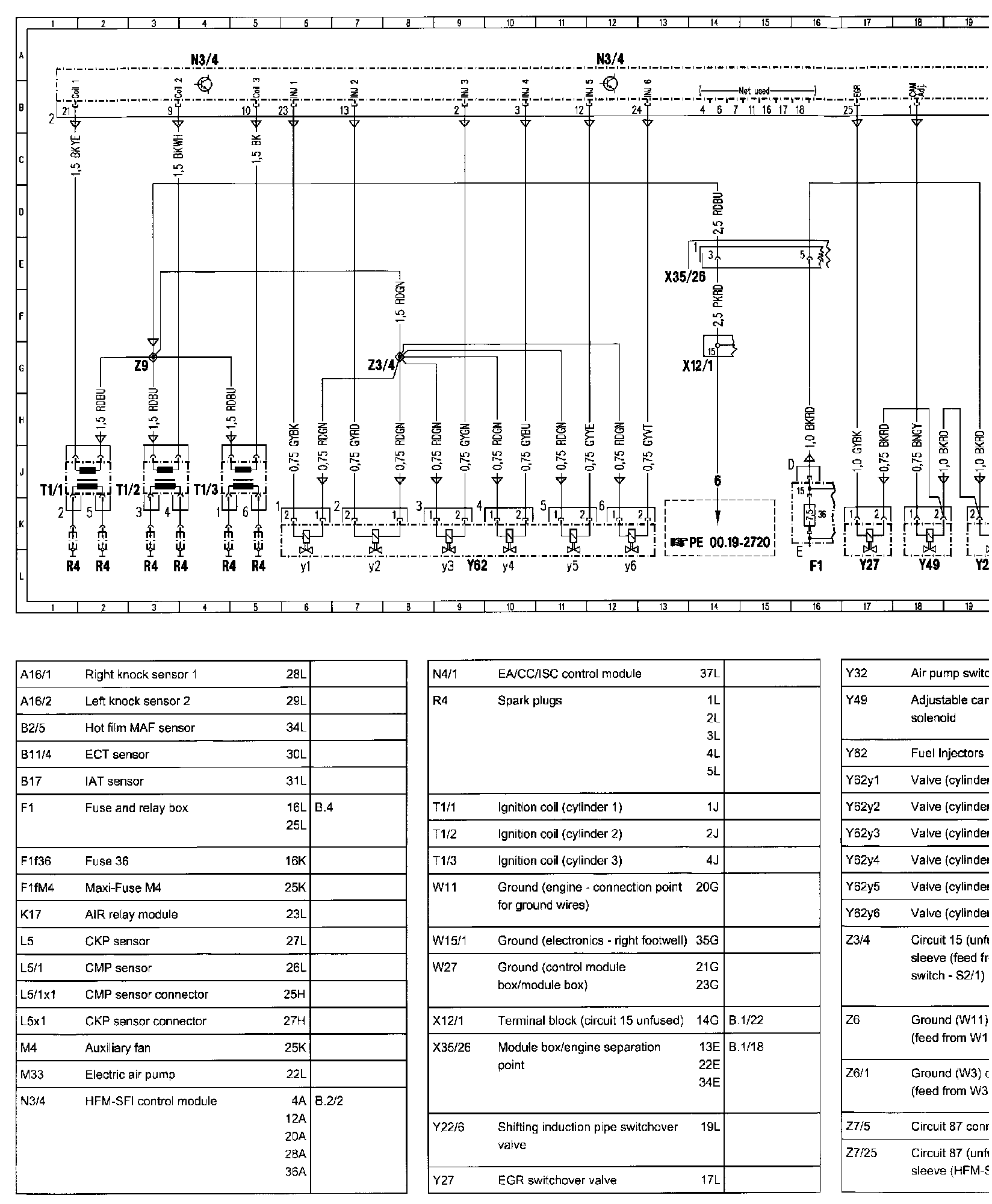

)� � PE07.51-U-2000YD - HFM-SFI Fuel Injection/ Ignition System:
