Electrical Diagrams






Rear Window Defroster



PE67.29-U-2000YB:

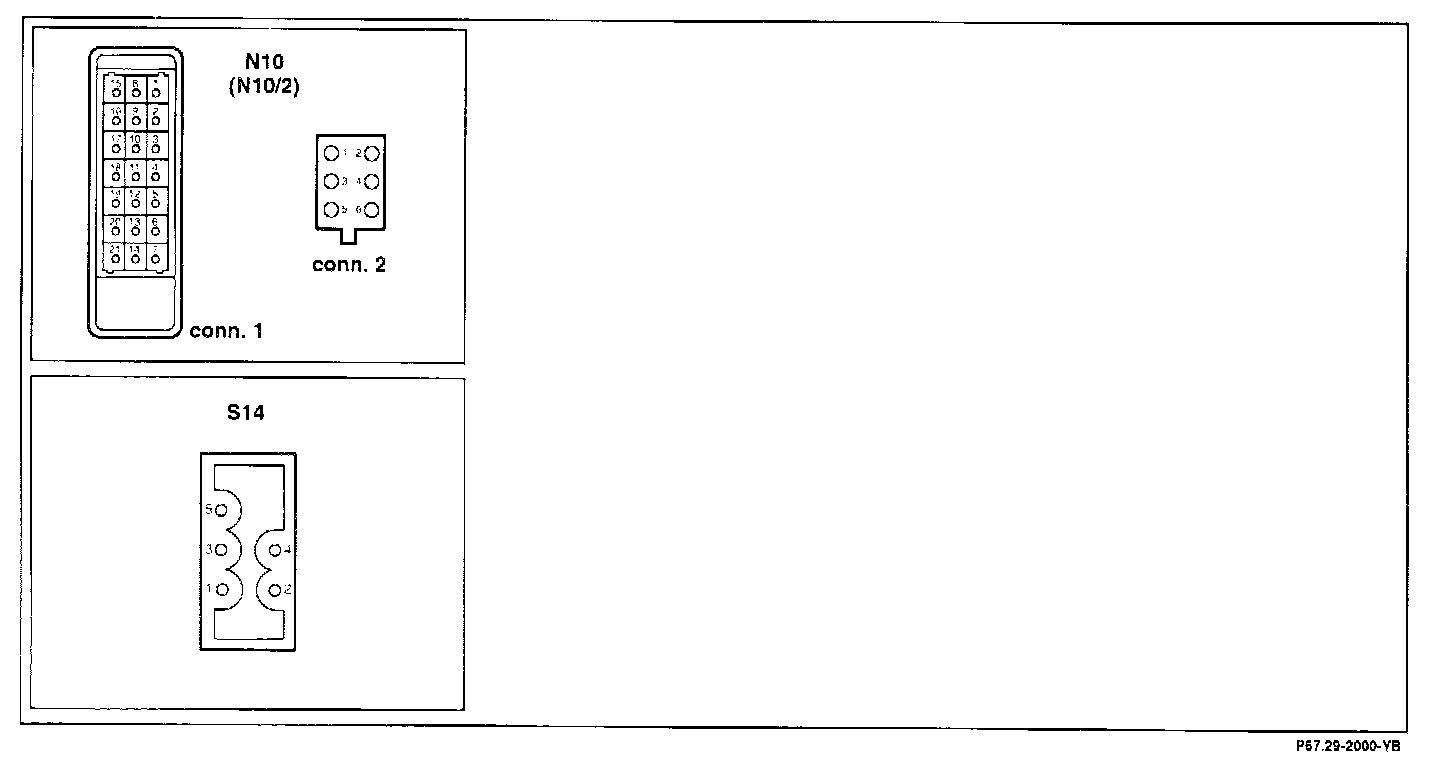

Connector Assignment:

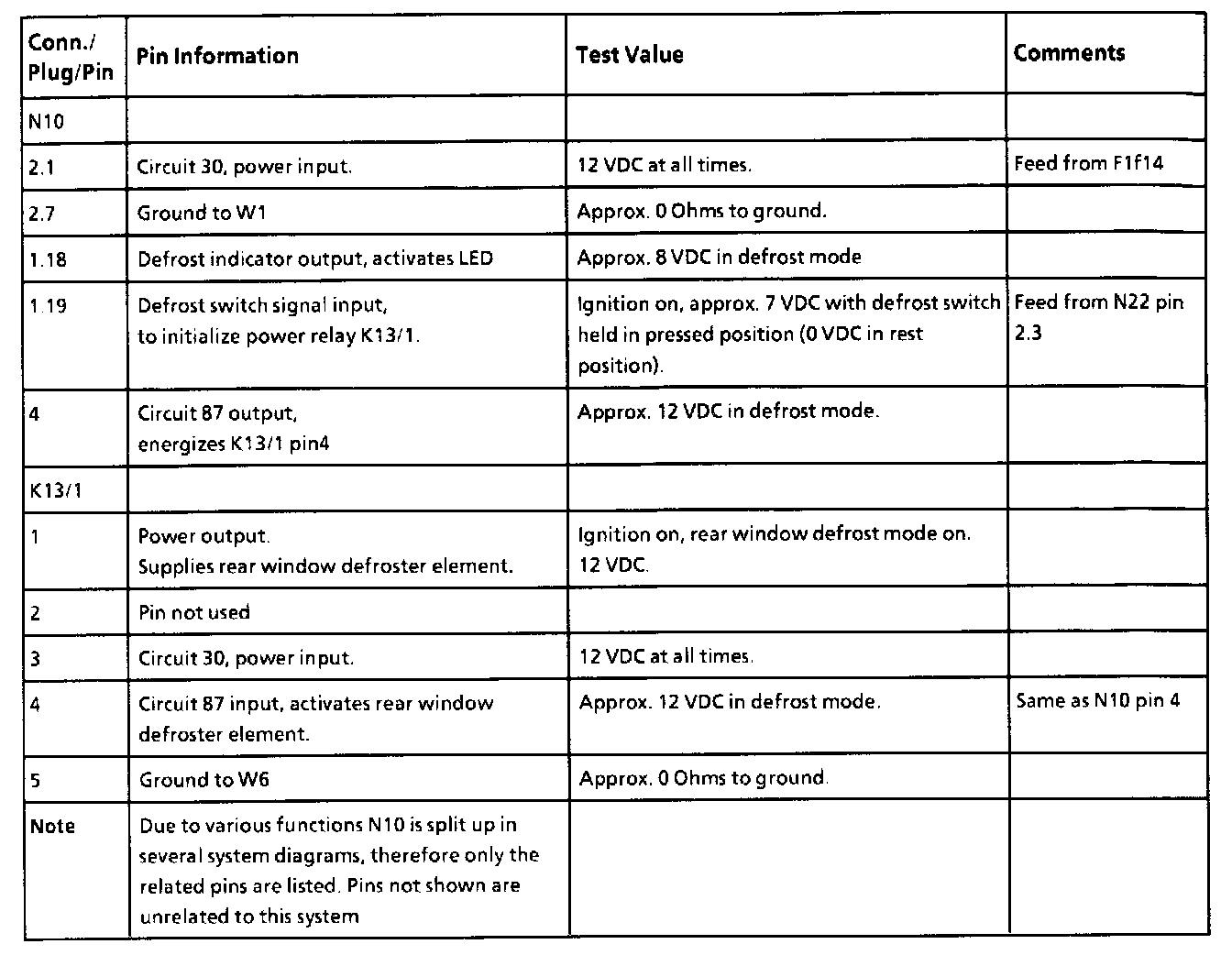

Pin Information:
