Electrical Seat Adjustment (ESA) PE91.29-U-2000YB

Up to Nov. 1996.

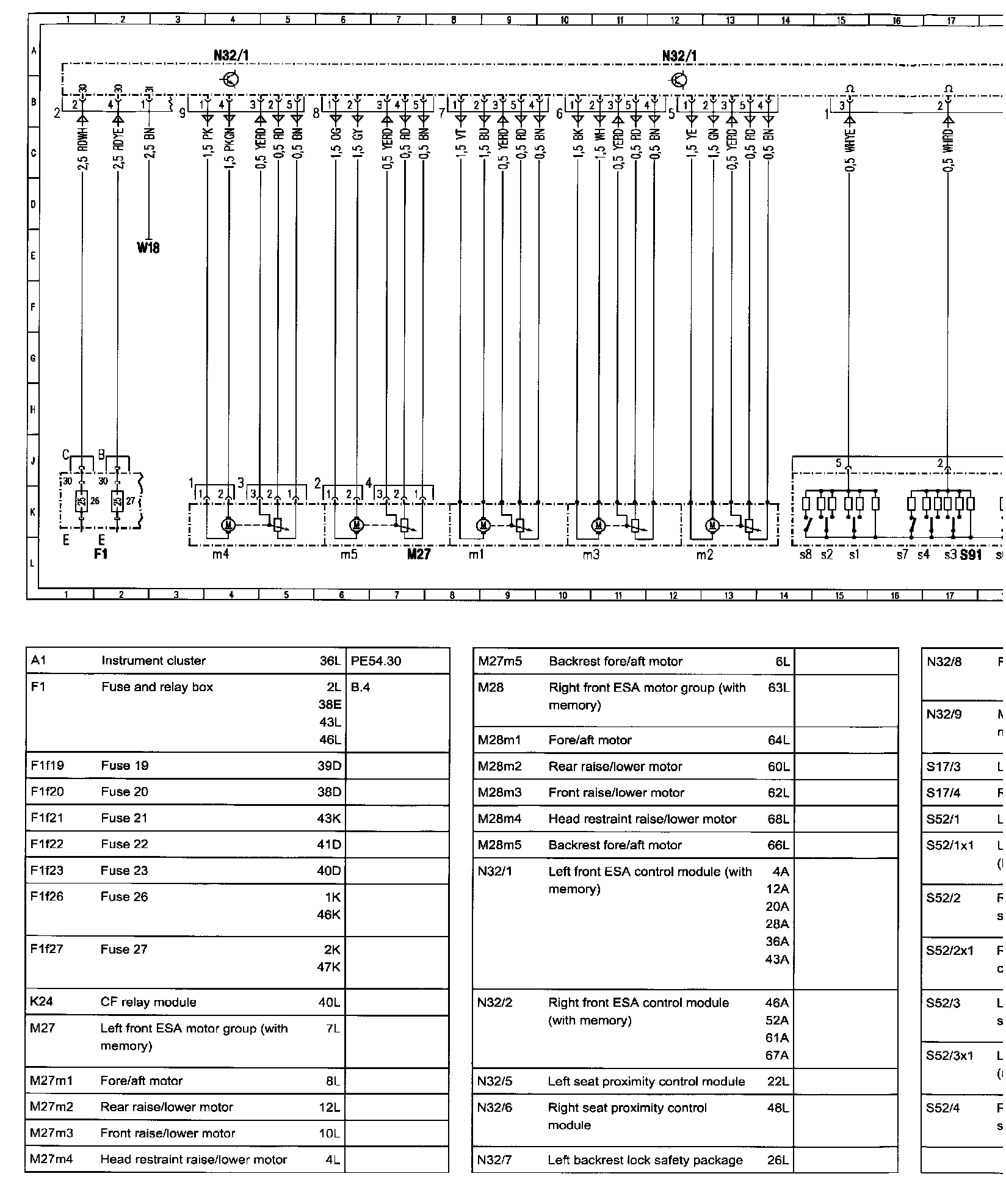

Wiring Diagram

�ZZNB�ZN�[N�'[NPE91.29-U-2000YB:

Connector Assignment:

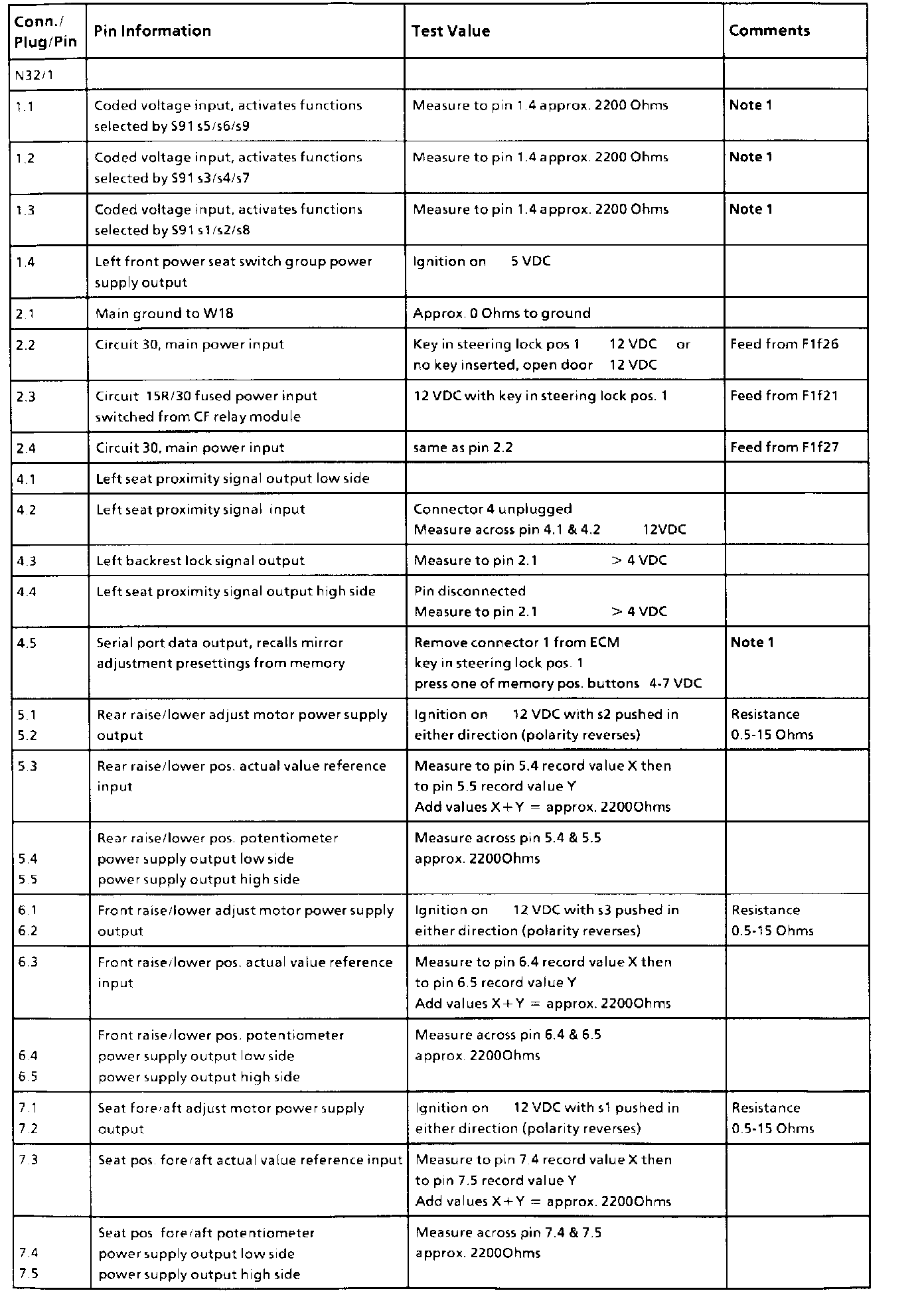

Pin Information, Part 1:

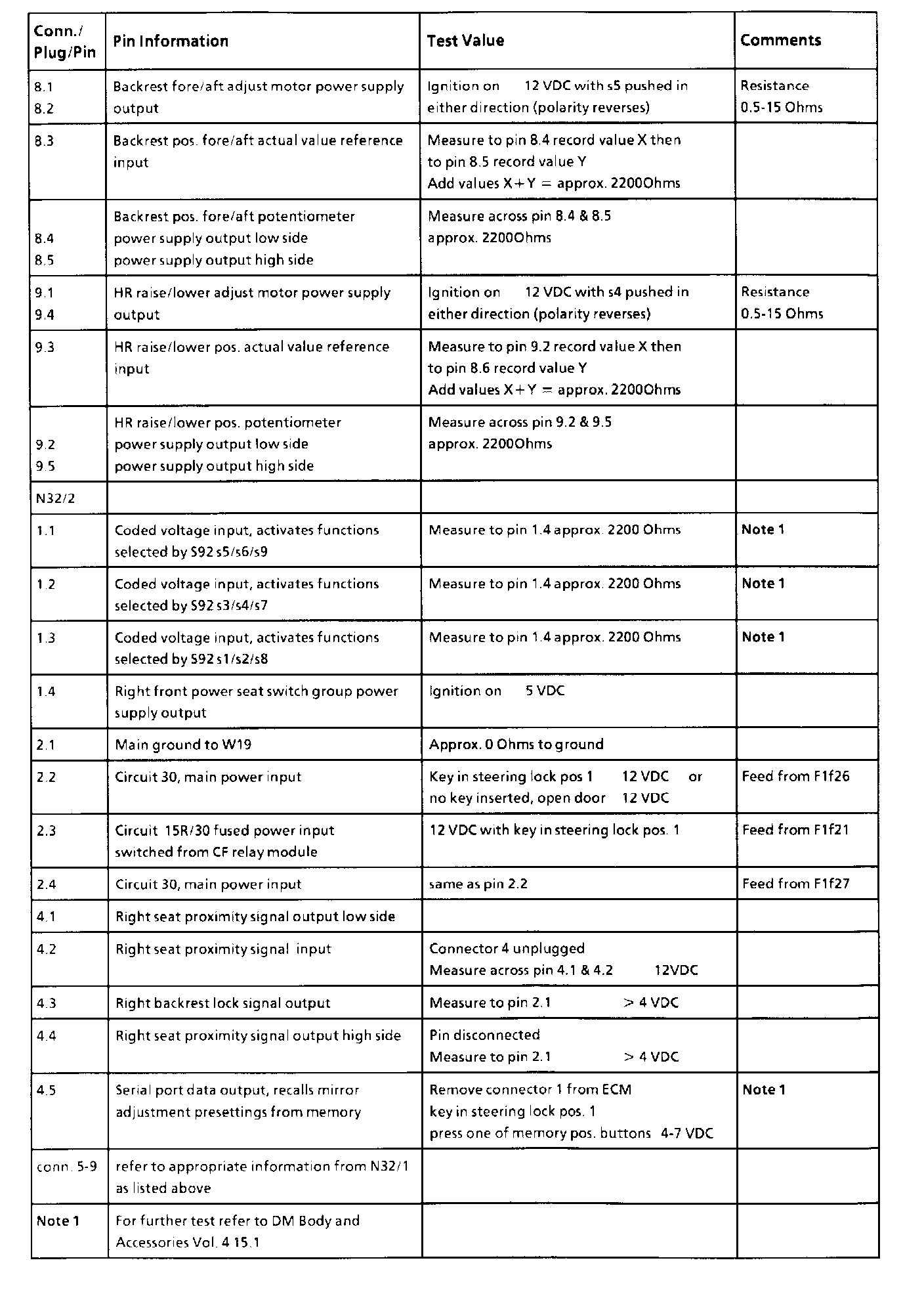

Pin Information, Part 2:

All values measure to ground unless otherwise noted.
