Engine Tightening Torques

Engine Torque Specifications

Timing Case Cover:

Cylinder Head:

Intake Manifold:

Exhaust Manifold:

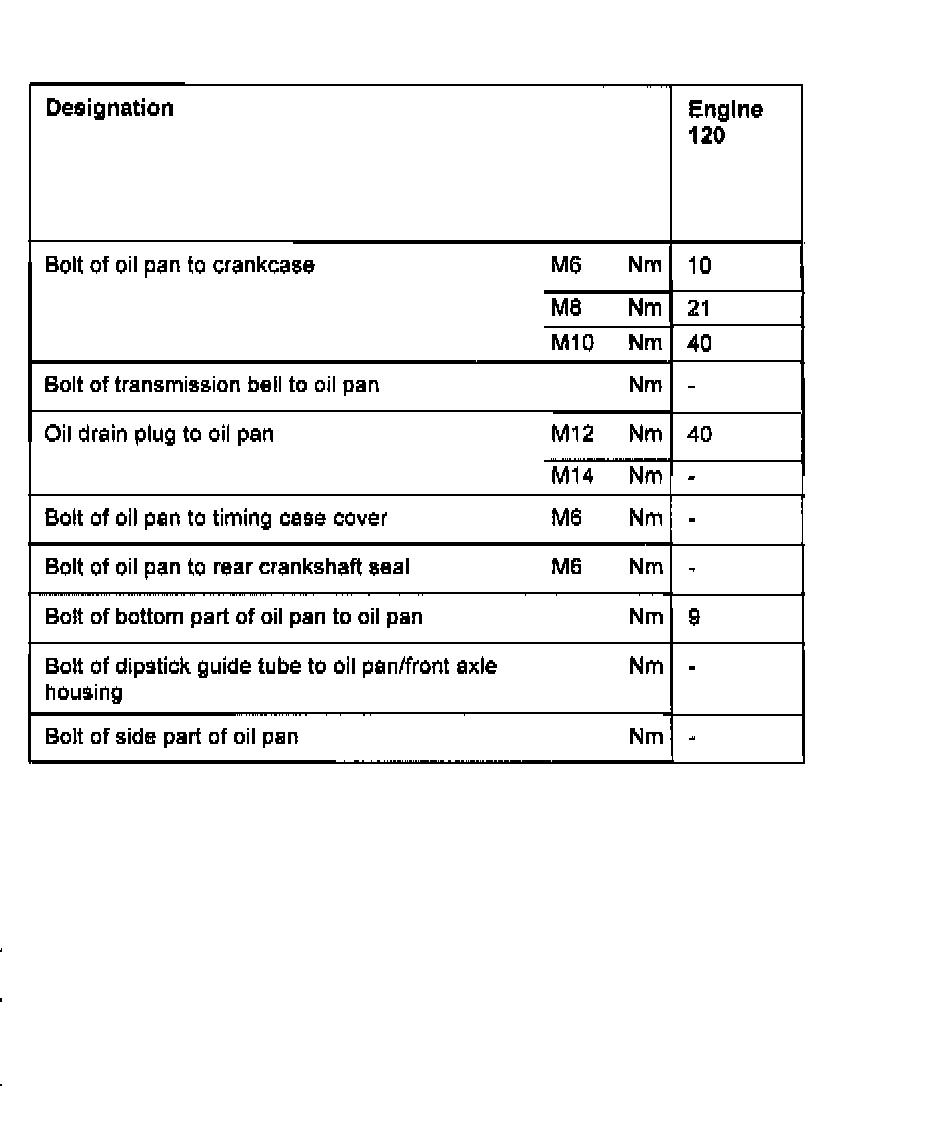

Oil Pan:

Crankcase Part I:

Crankcase Part II:

Cylinder Head Tightening Specification





Tighten cylinder head bolts in stages in the order of the tightening diagram.

1st tightening stage 55 Nm.

2nd tightening stage 90° tightening angle.

3rd tightening stage 90° tightening angle.
