Lamp Out Indicator: Testing and Inspection

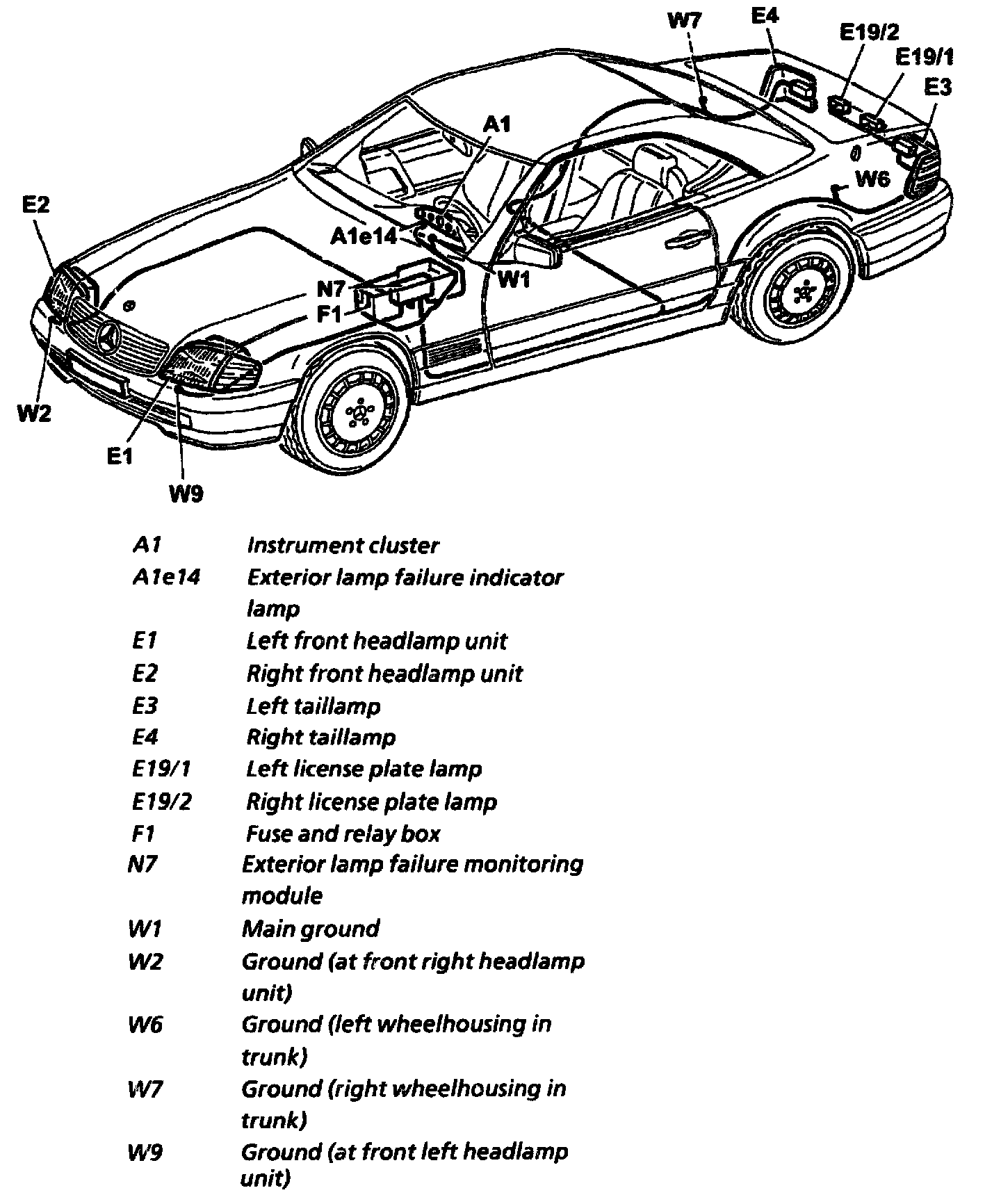

Component Identification

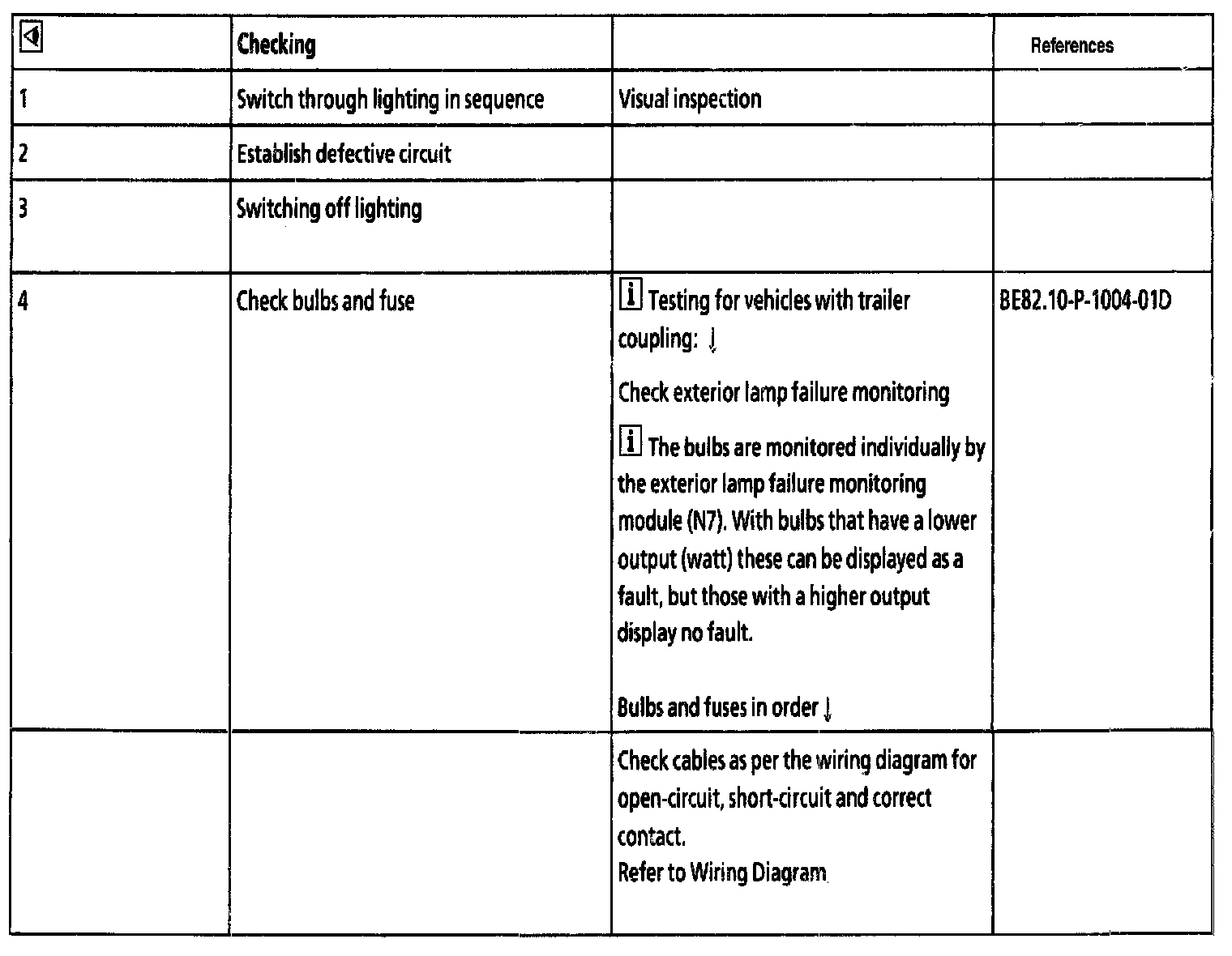

Checking






References (BE), Test values - exterior lighting
