Overall Installation Survey For Automatic Transmission

Installation survey for automatic transmission

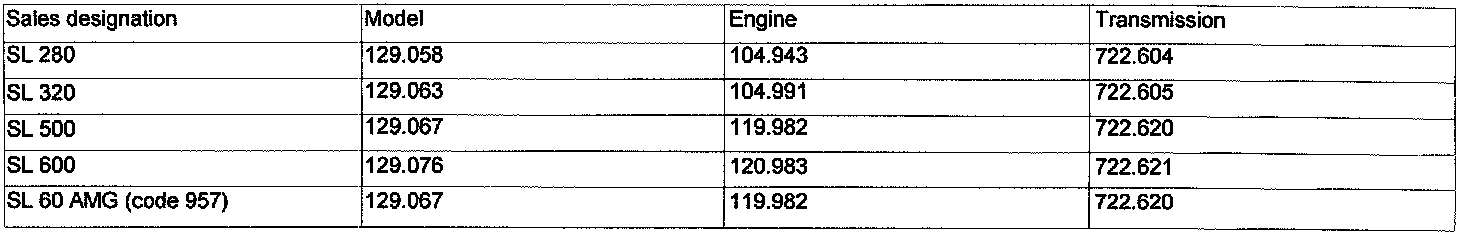

Model 129:





Model 129





Model 170





Model 140





Model 202





Model 208

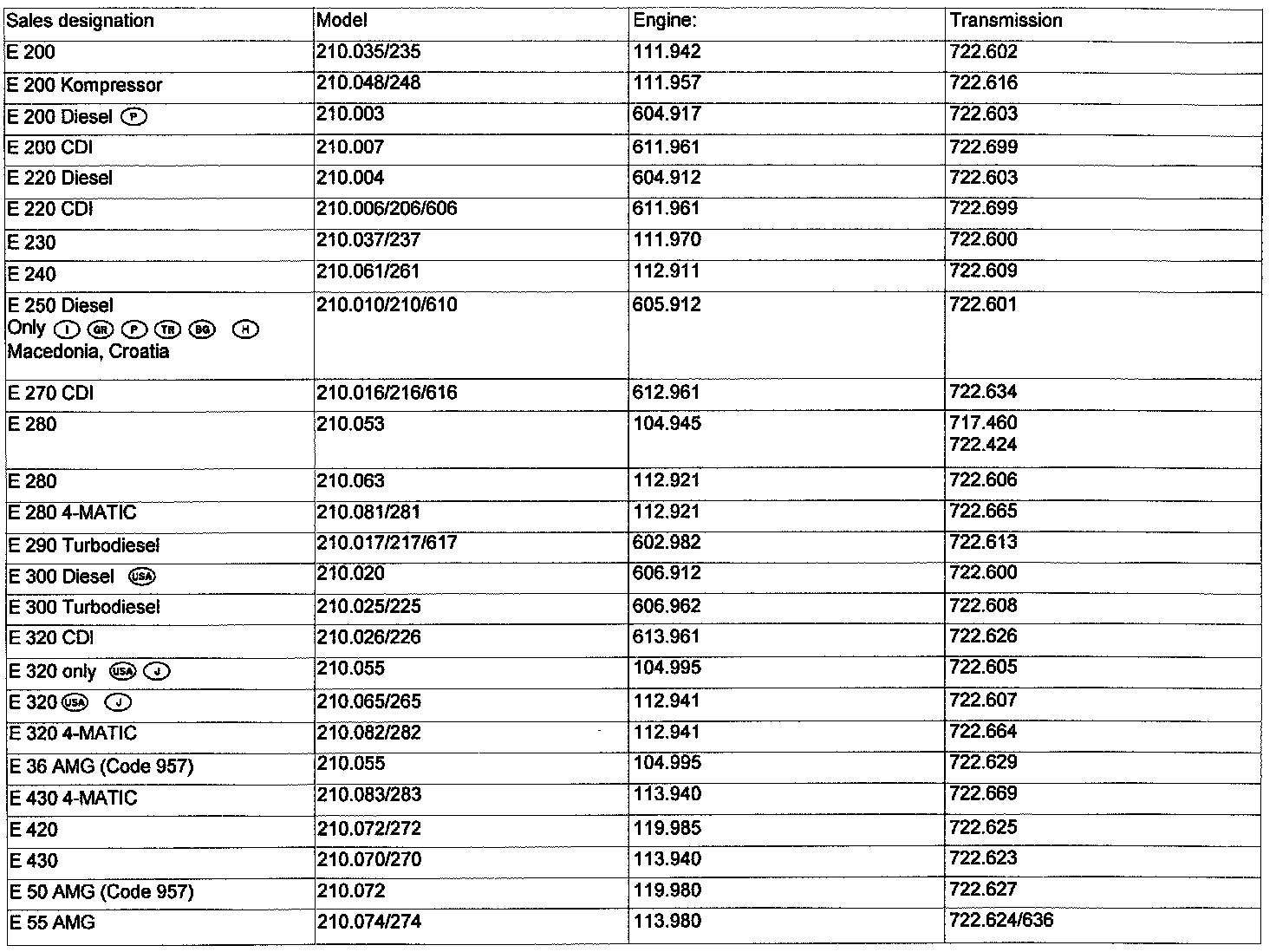

Model 210:




Model 215:





Model 210





Model 463





Model 163





Model 220
