Garage Door Opener Transmitter

Garage Door Opener PE68.05-U-2000WA

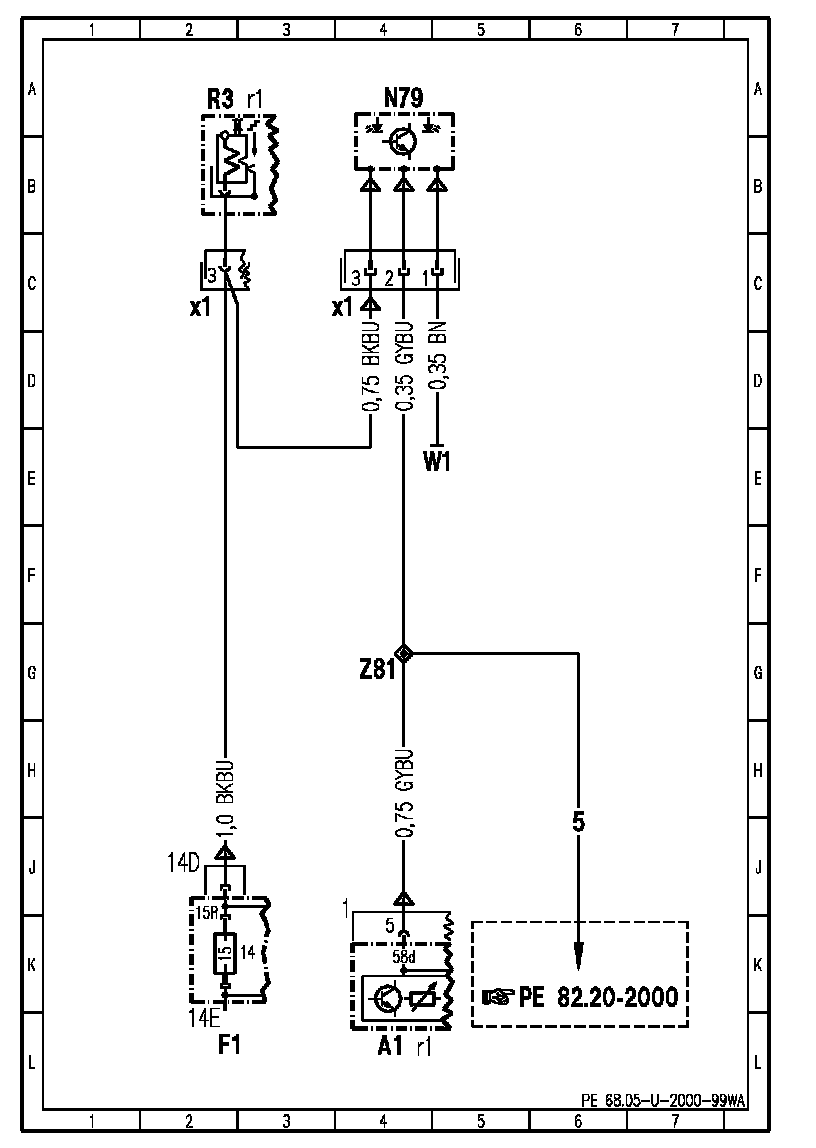

Wiring Diagram:

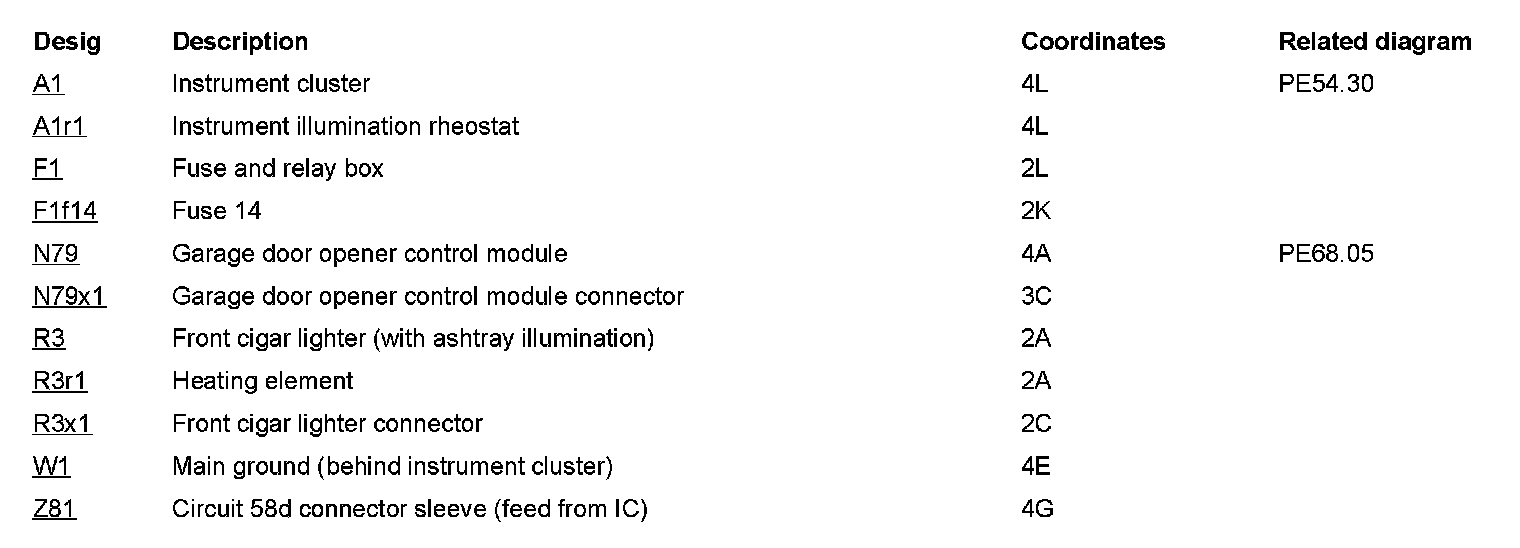

Component Description/Coordinates, A1 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
