Automatic Dimming Inside Rear View Mirror PE68.49-U-2000WA



Automatic Dimming Inside Rear View Mirror PE68.49-U-2000WA

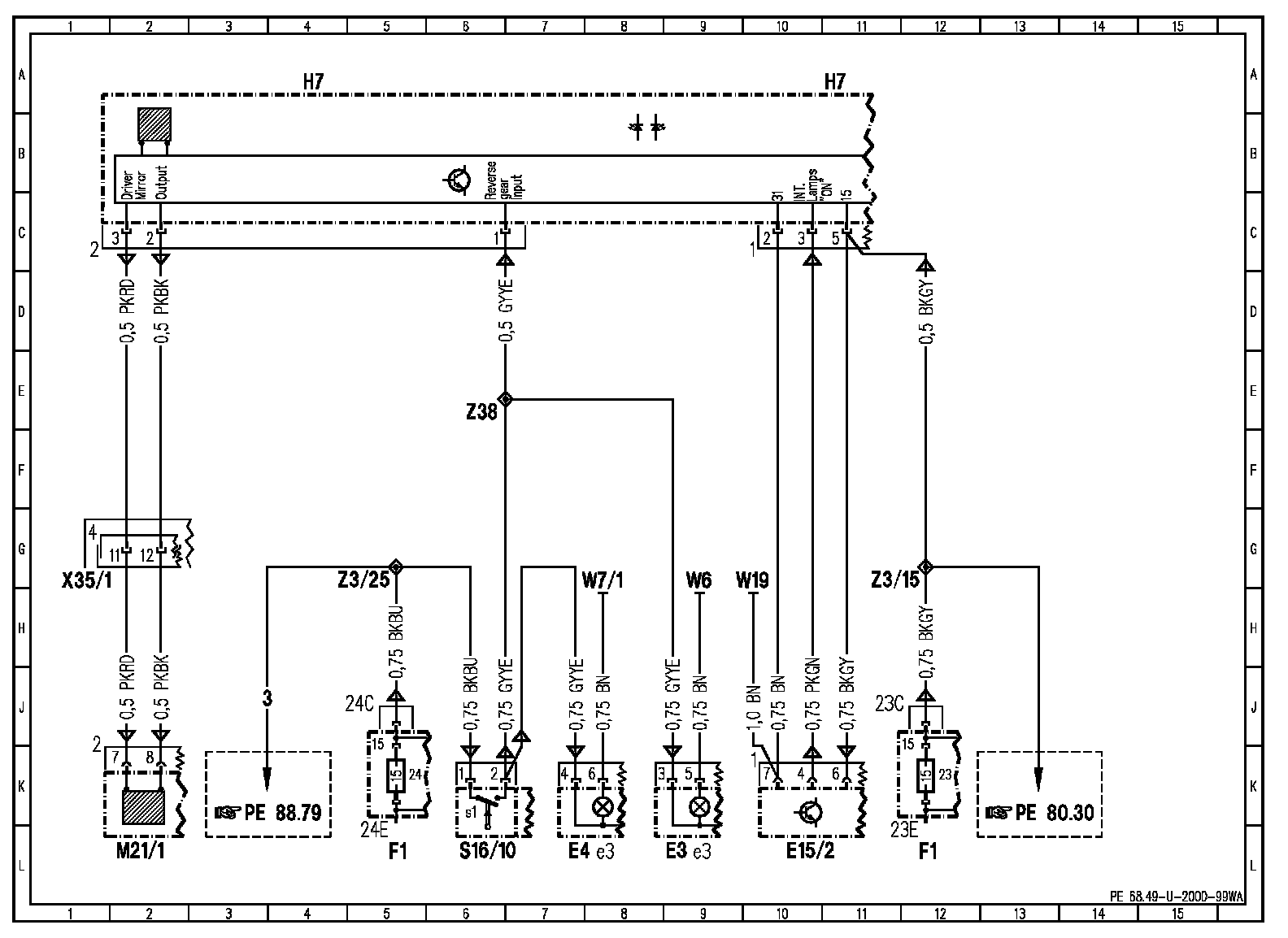

Wiring Diagram:





Component Description/Coordinates, E3 To Z38:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
