Relay Module

Front Passenger-side Fuse And Relay Module (K40/4) PE54.20-U-2200WA

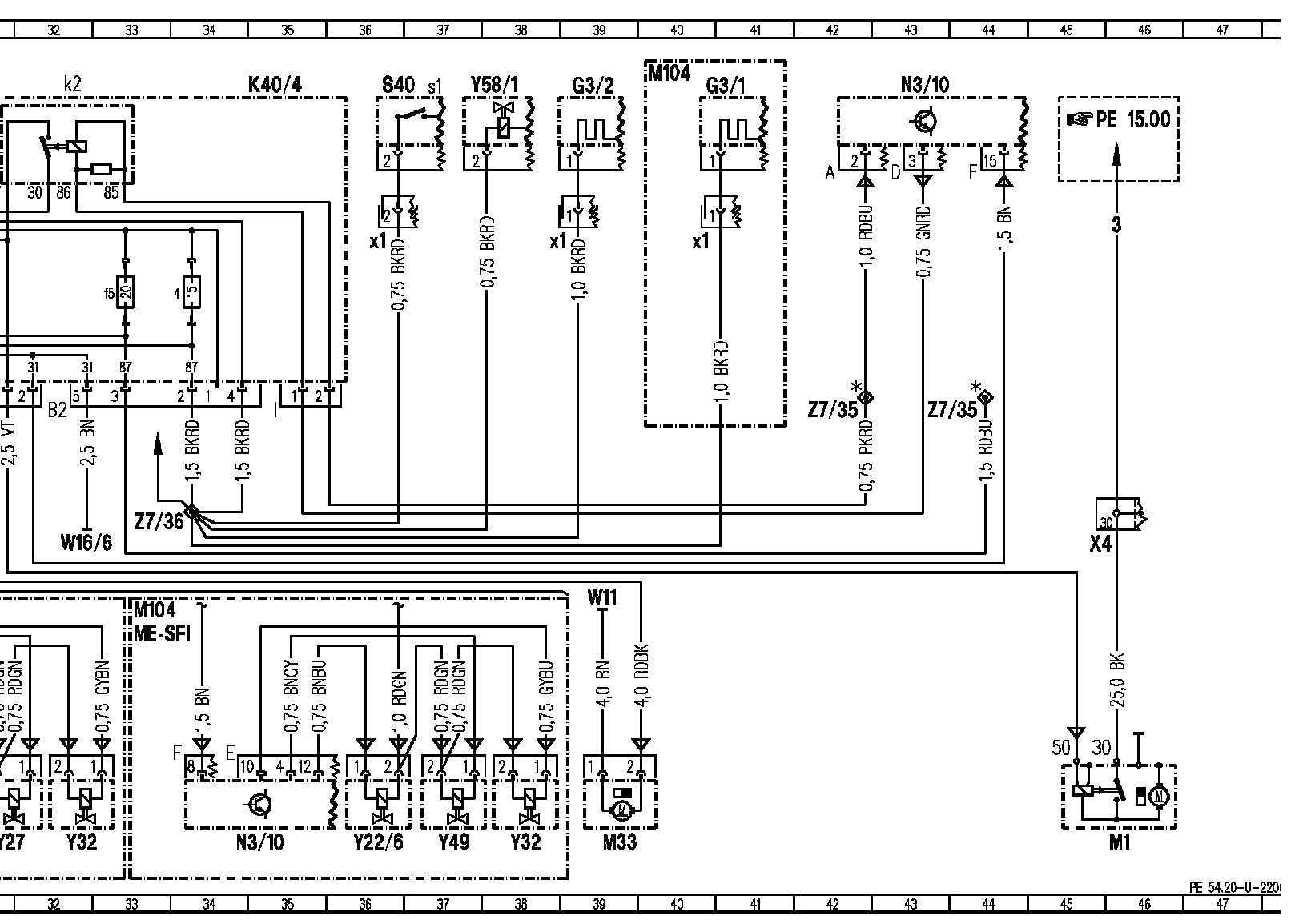

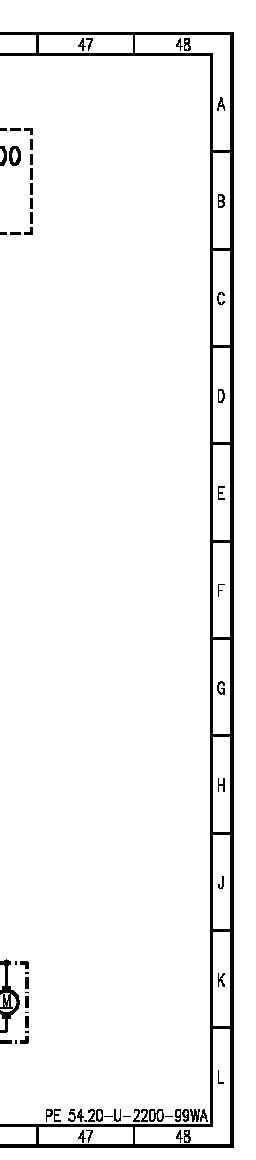

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

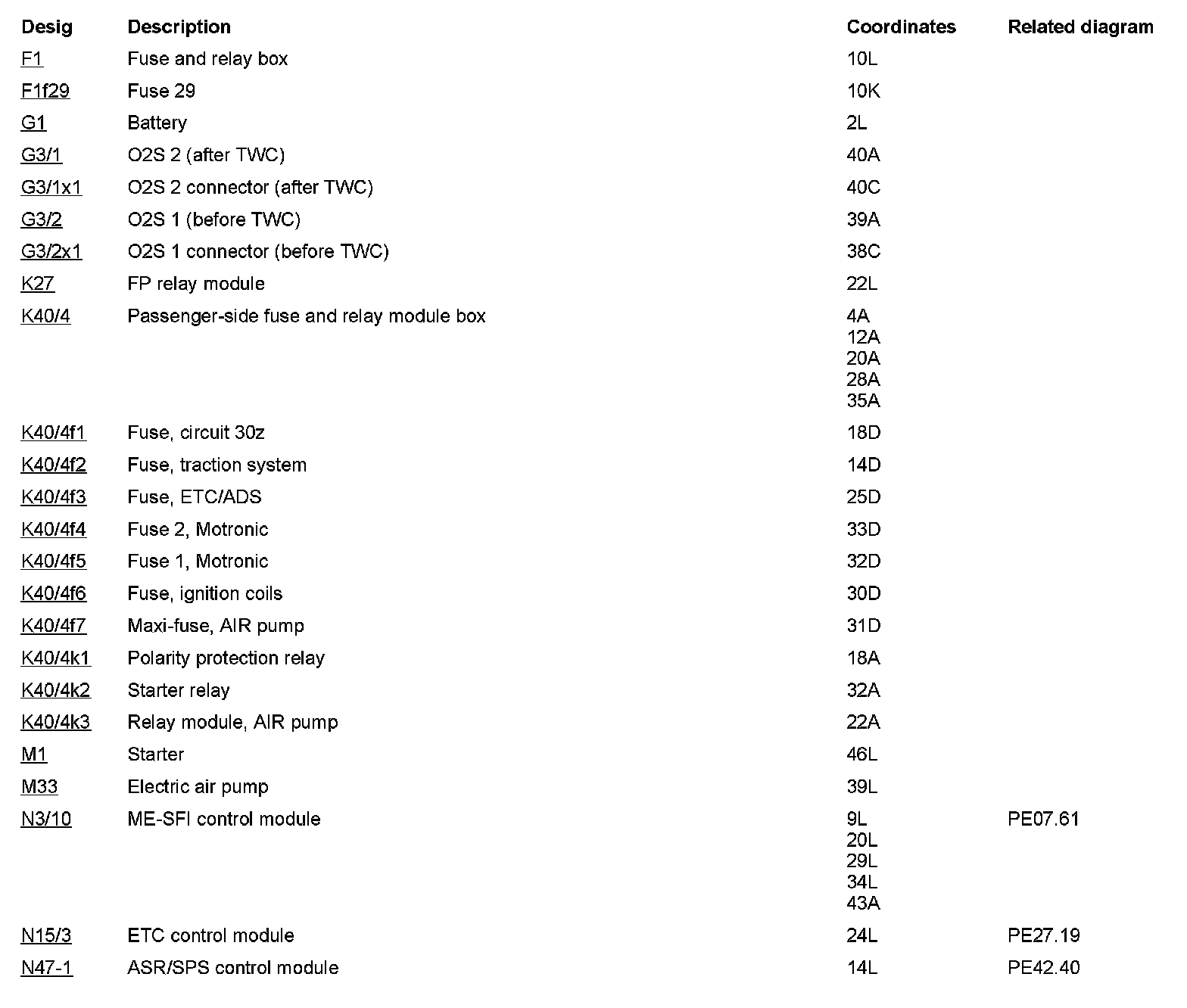

Component Description/Coordinates, F1 To N47-1:

Component Description/Coordinates, N47-2 To Z7/36:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
