Cabin Ventilation Grille: Service and Repair

Removing and installing left and right air intake covers

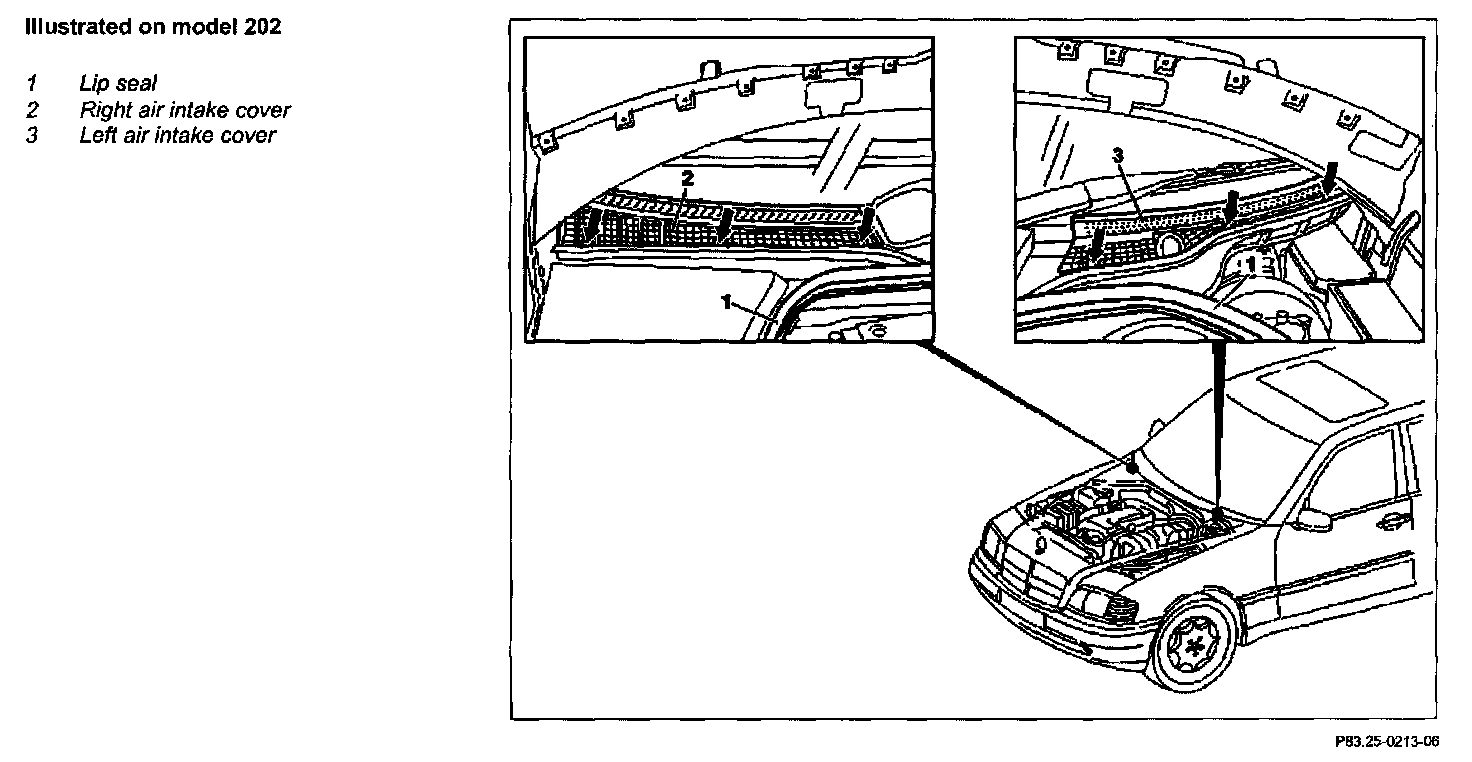

Illustrated On Model 202:

1 Pull off lip seal (1)
2 Unclip 3 catch mounts (arrows) on each side and remove cover upward
3 Reinstall in opposite order.
