Interior Lights PE82.20-U-2000WC

Interior Lights PE82.20-U-2000WC

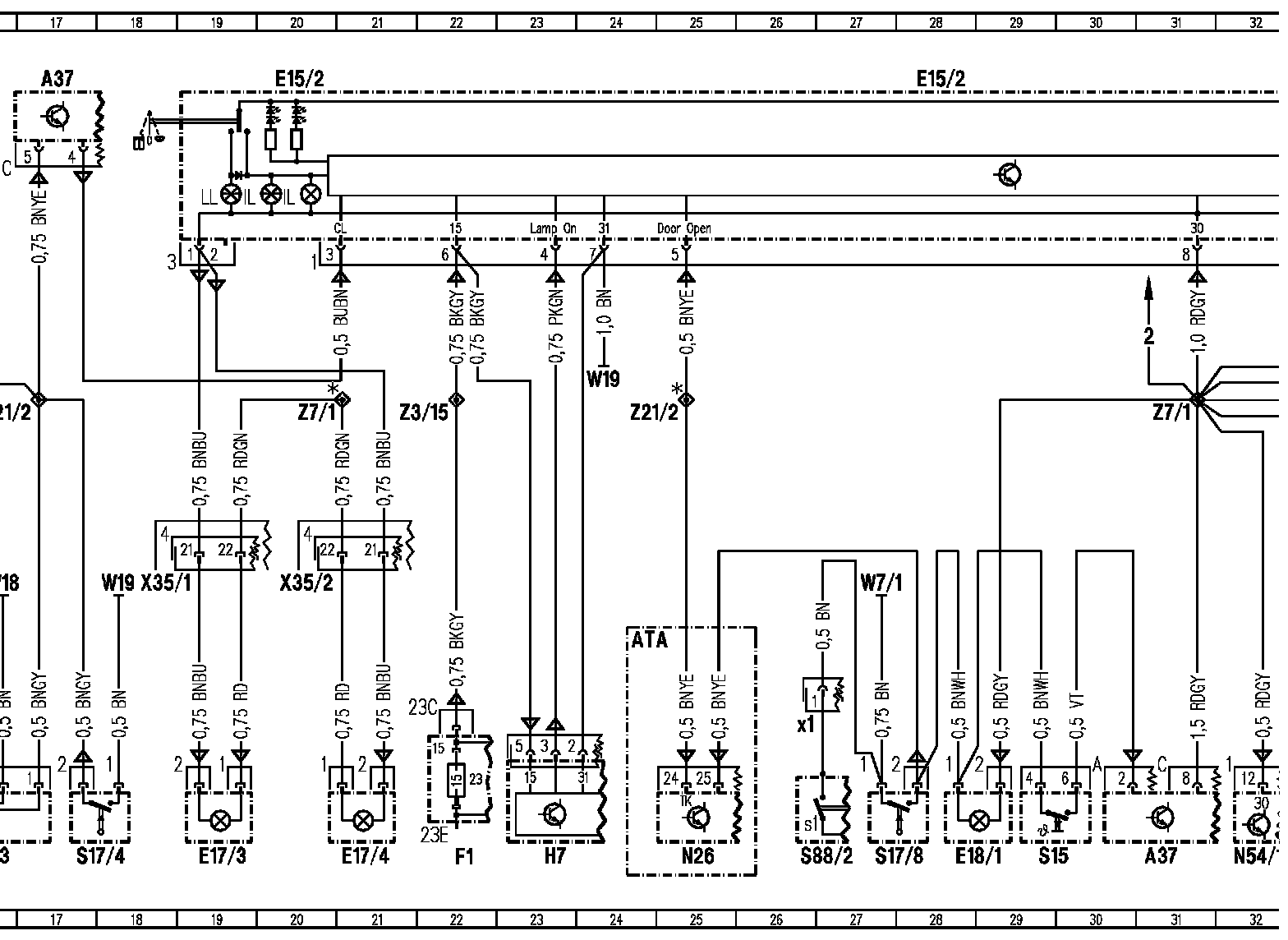

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Component Description/Coordinates, A1 To M6/2:

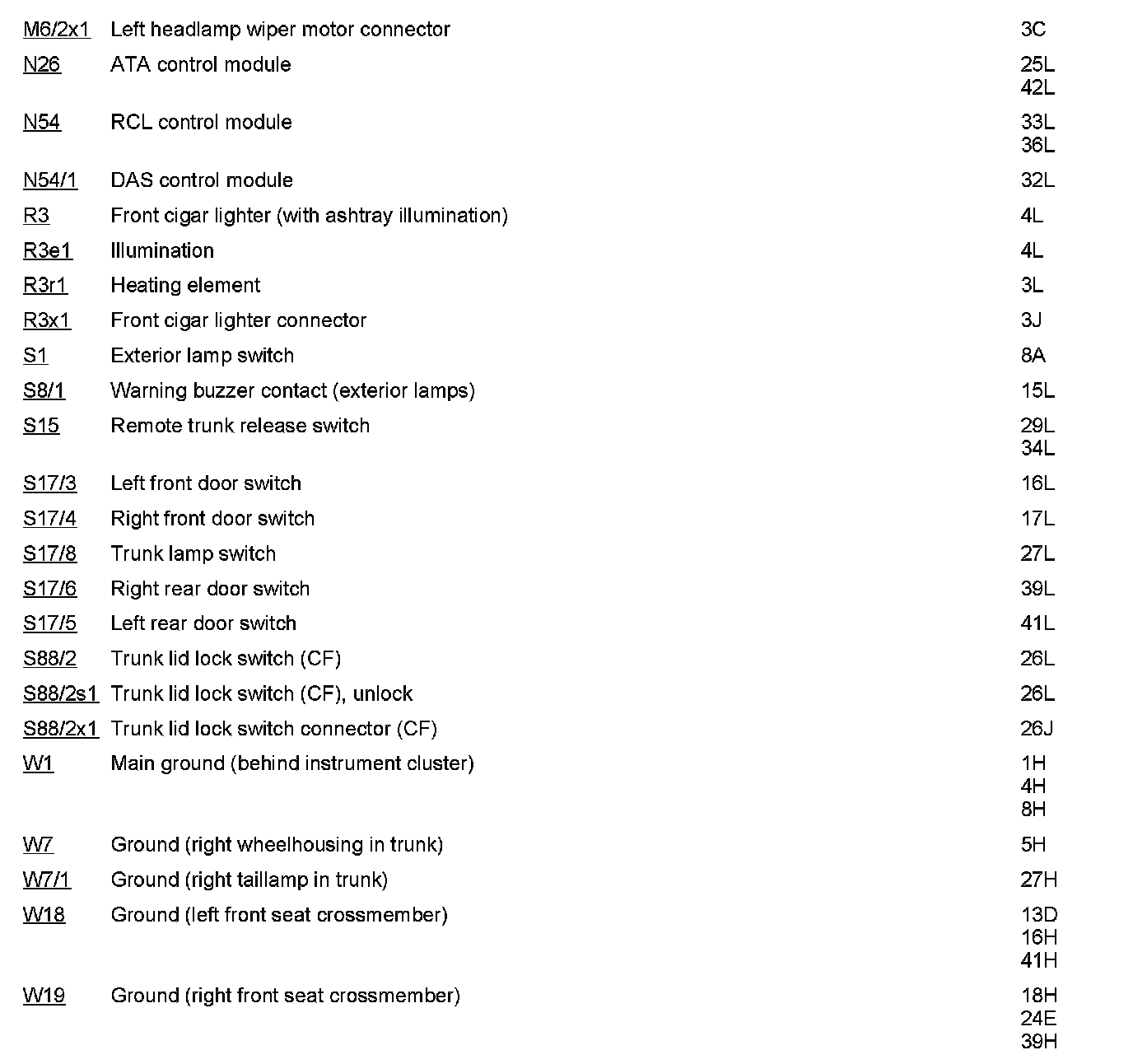

Component Description/Coordinates, M6/2x1 To W19:

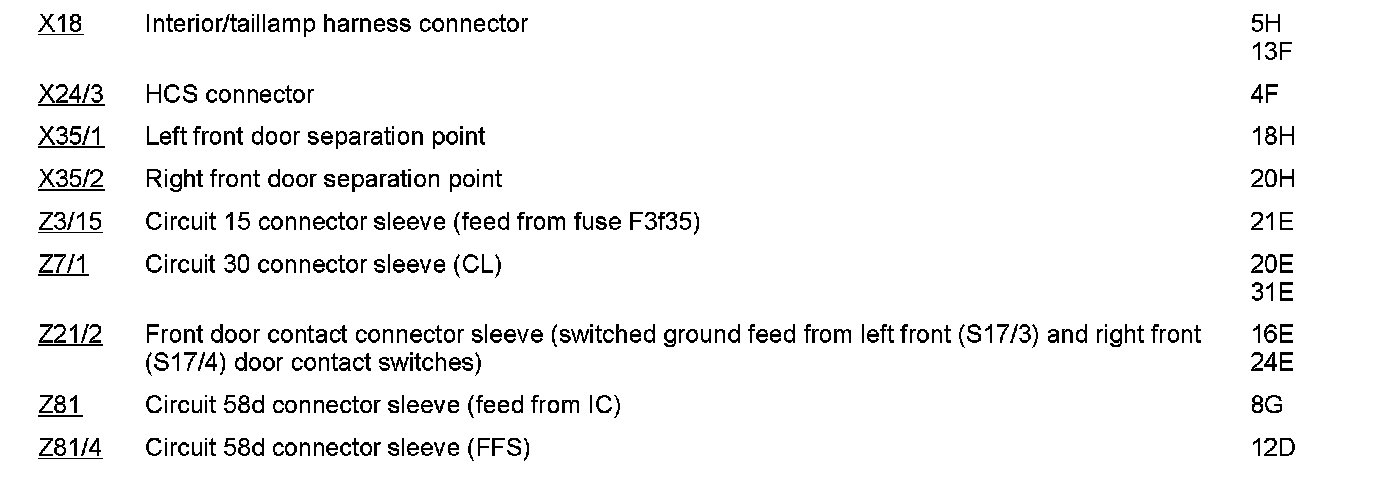

Component Description/Coordinates, X18 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
