AP13.22-P-1351Z Inspect Poly-V-Belt For Wear and Damage
AP13.22-P-1351Z Inspect Poly-V-Belt For Wear and Damage

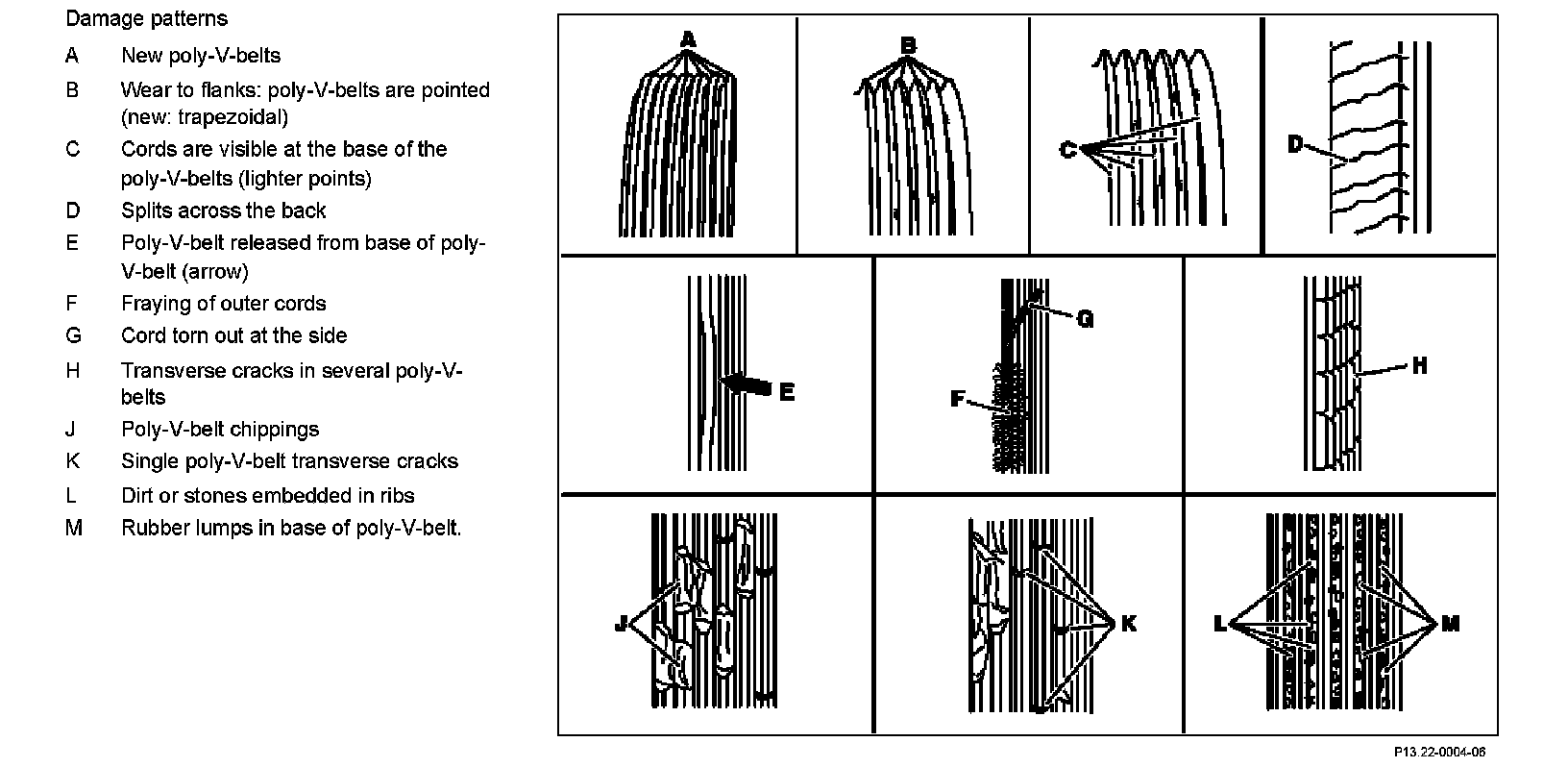

Inspect poly-V-belt for wear and damage

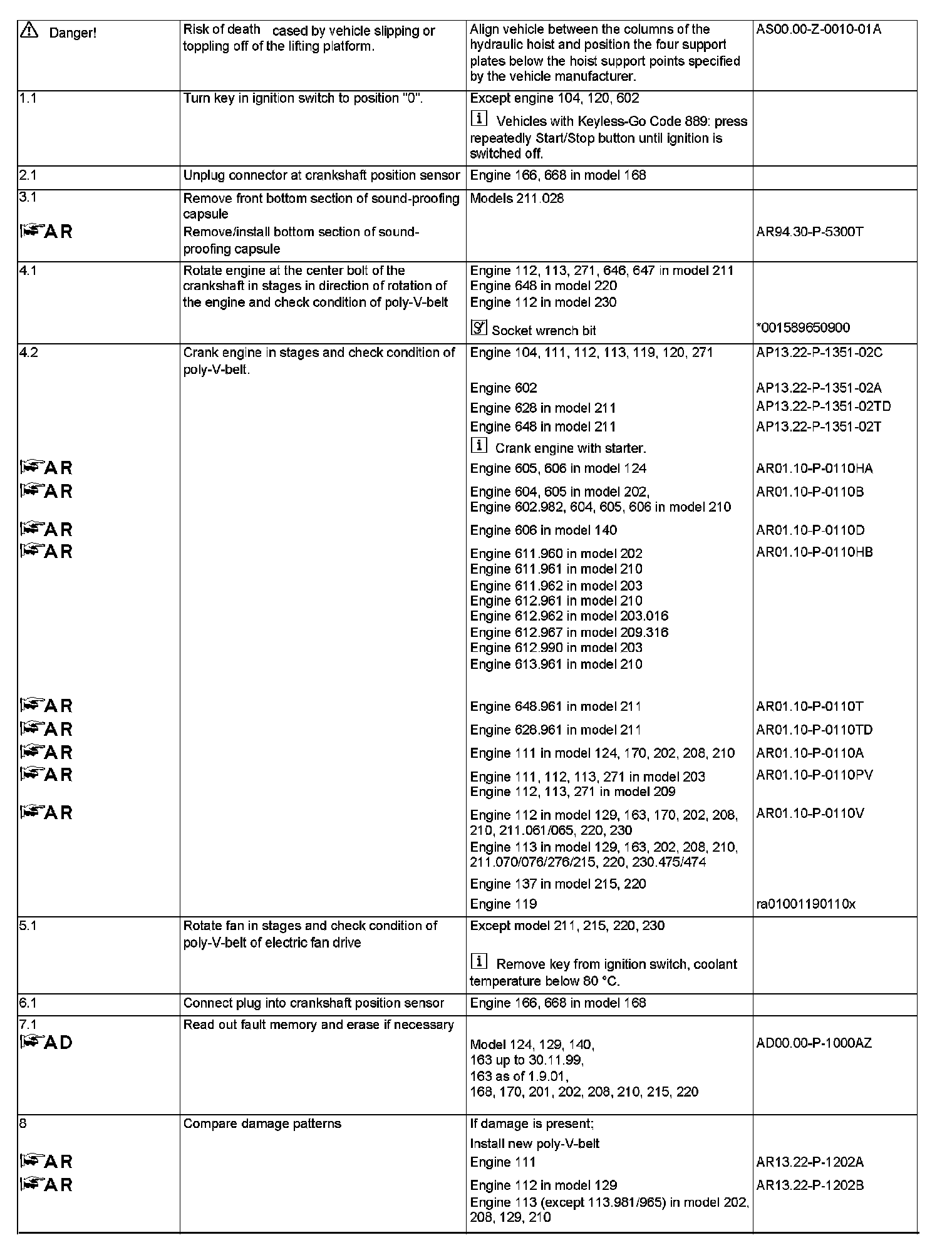

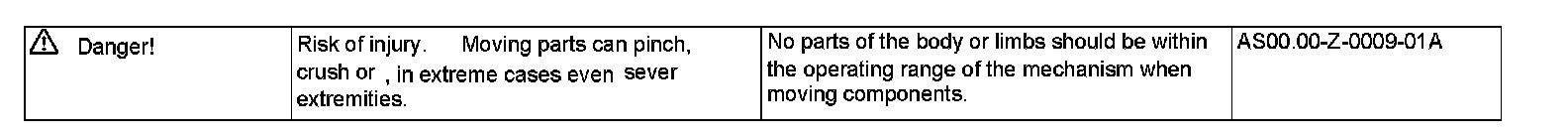

Steps 1-8:

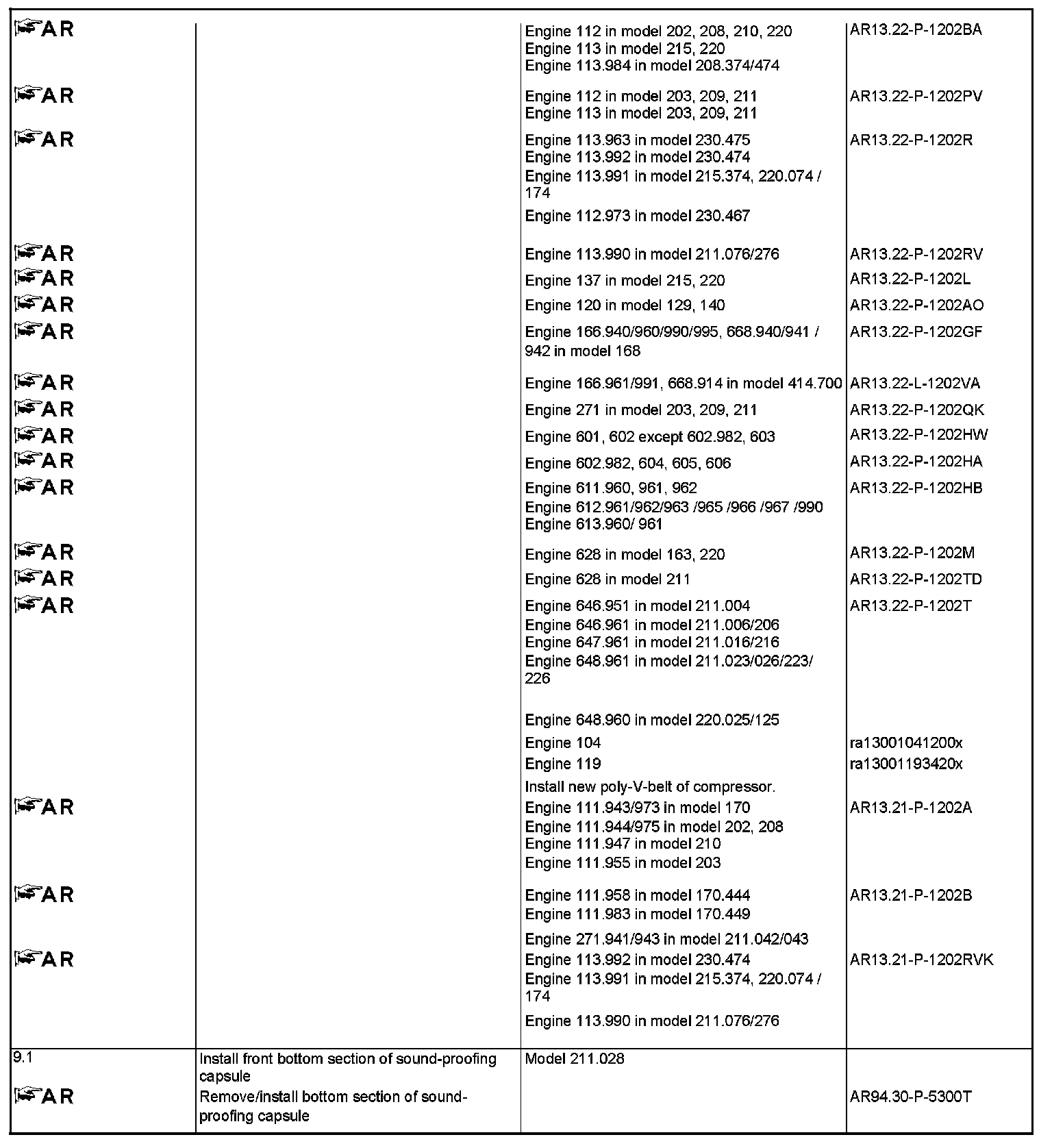

Step 9:
