Mercedes Benz
>>
1997
>>
C 36 AMG (202.028) L6-3.6L (104.941)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Testing and Inspection
>>

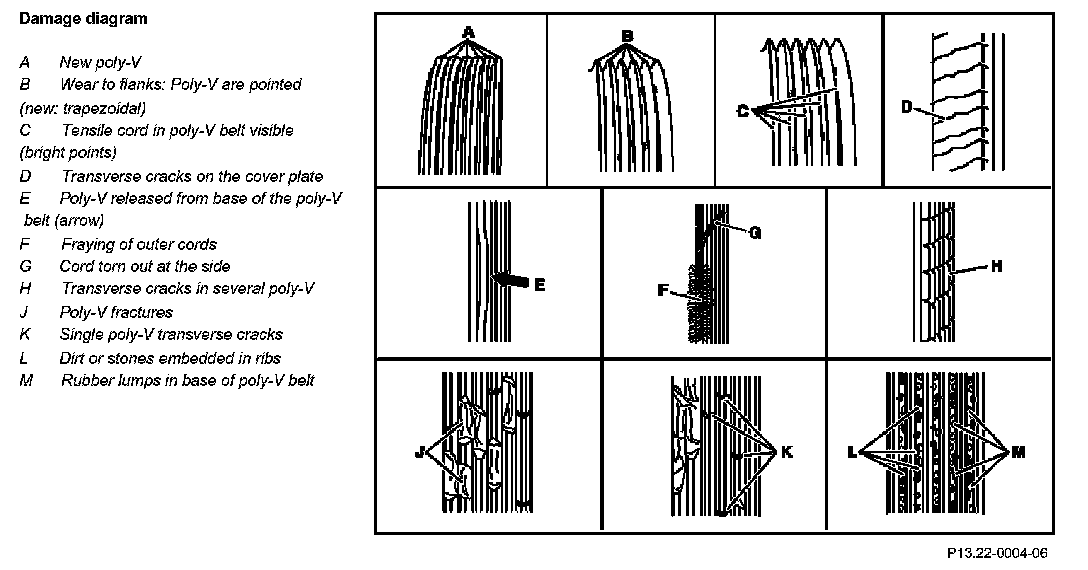

AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear
AP13.22-P-1352Z Check Visible Area Of Poly-V Belt For Wear

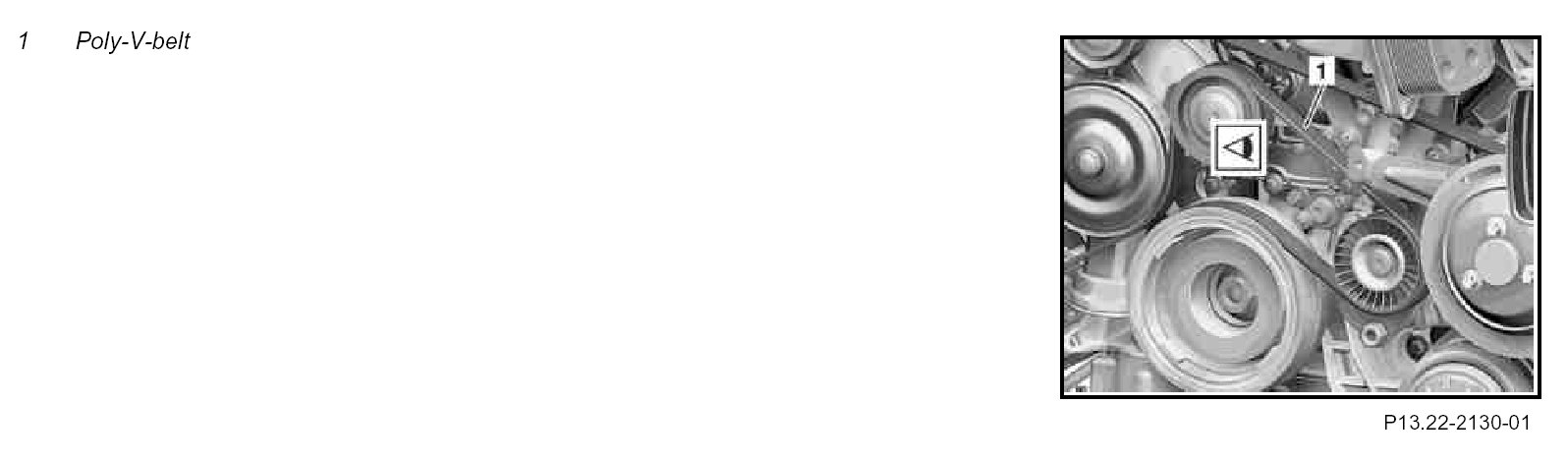

Component Identification:
Component Identification:

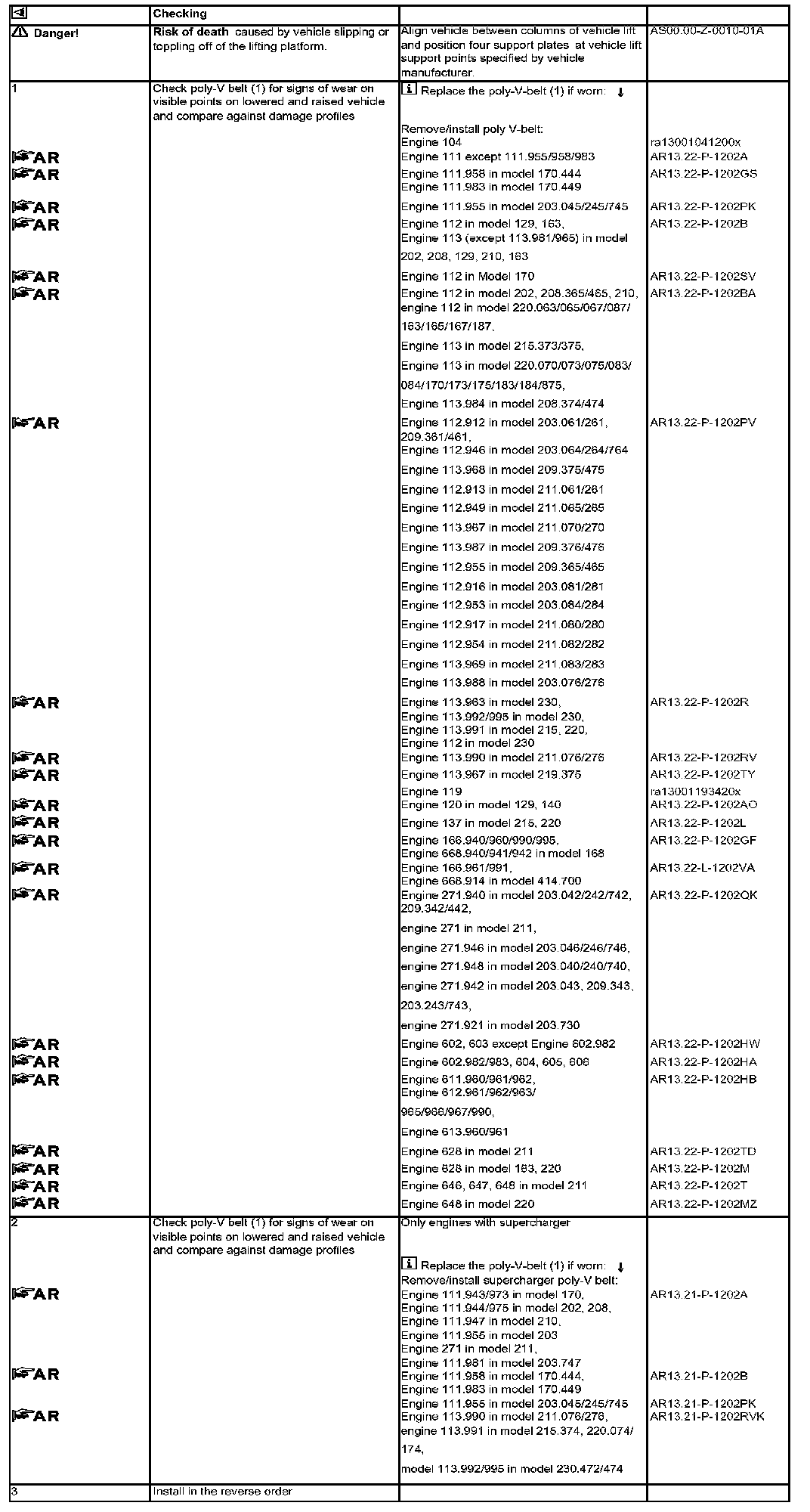

Steps 1 - 3:
