ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WB

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WB
- Interior compartment

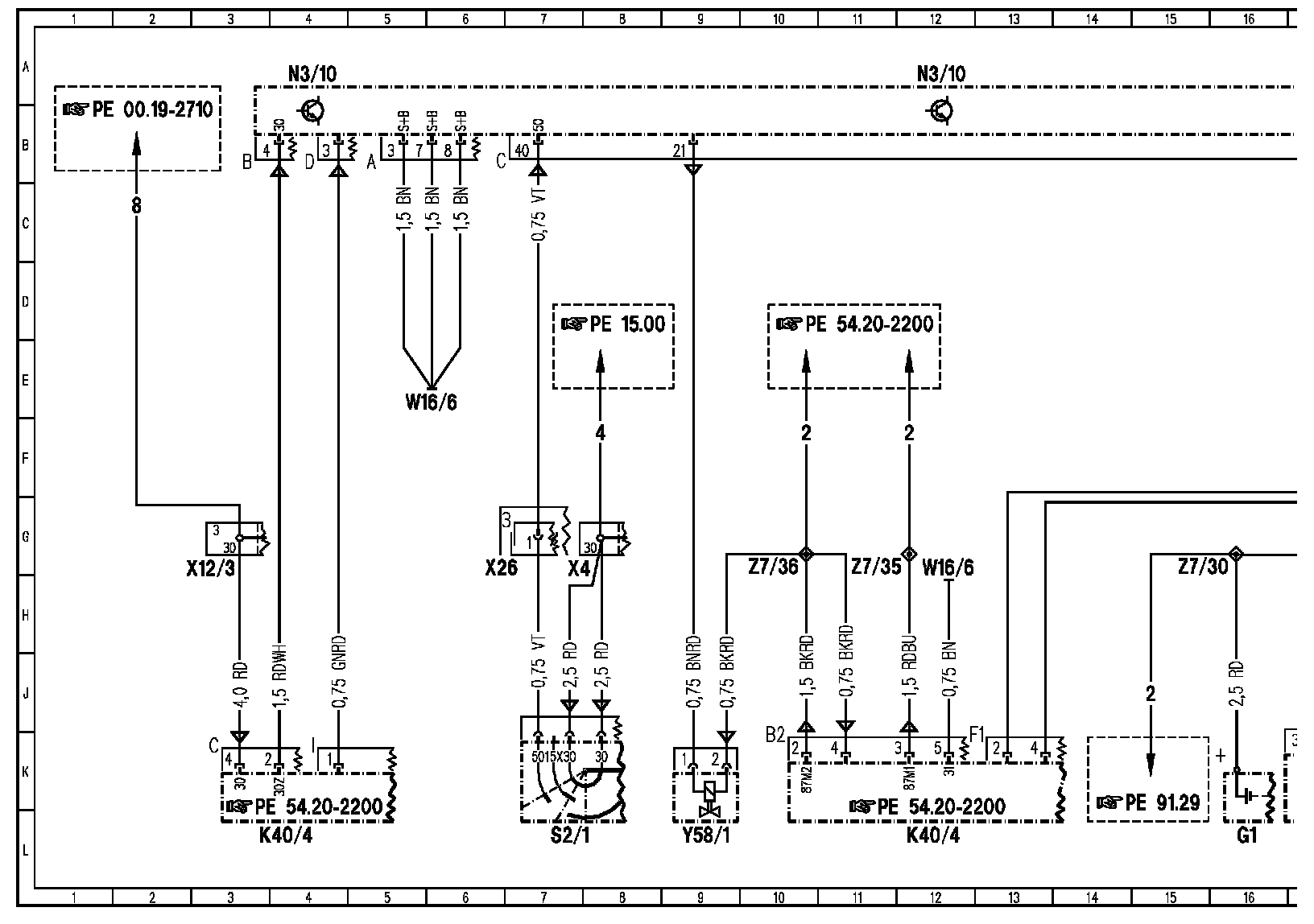

Wiring Diagram, Part 1:

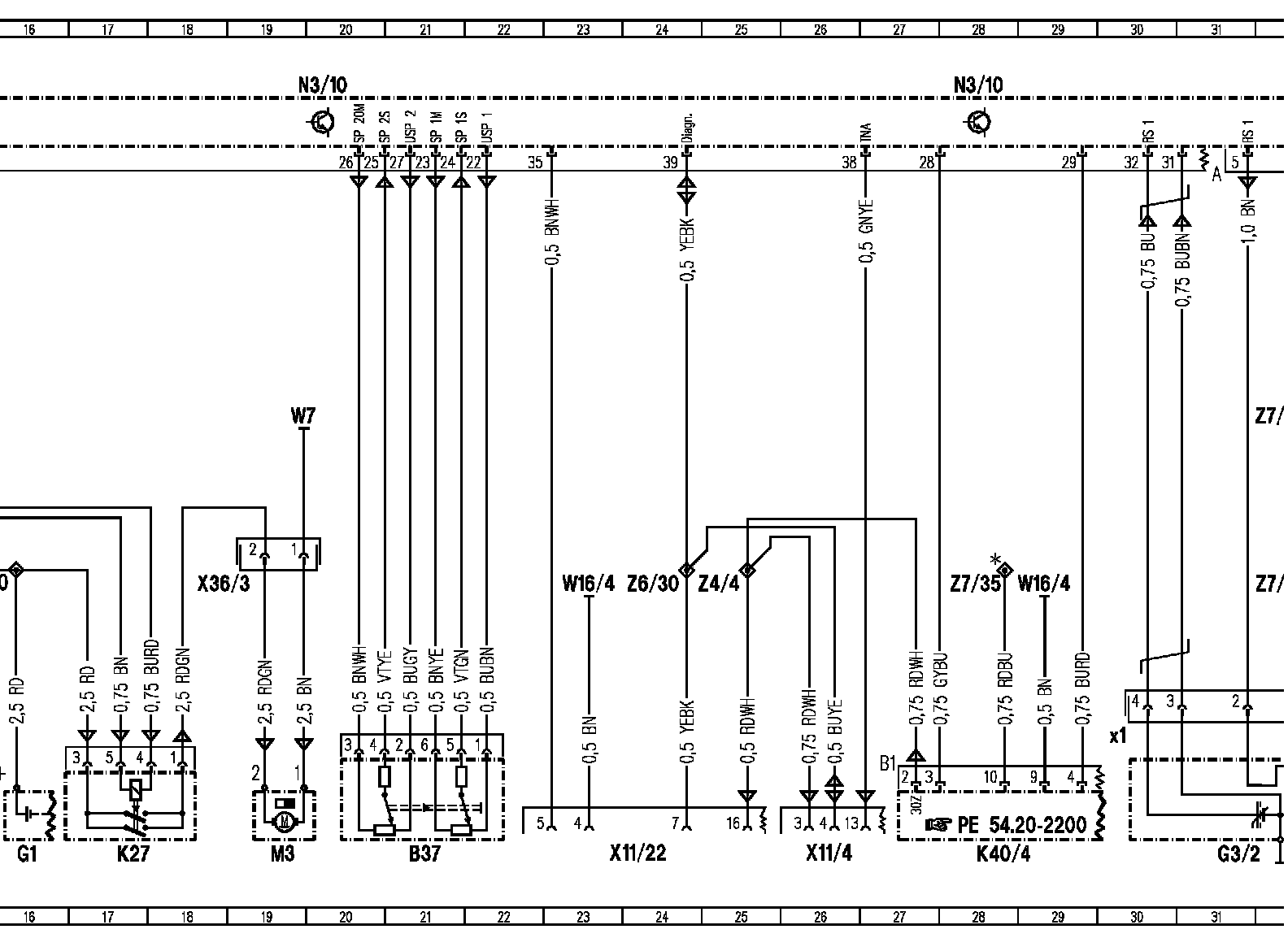

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

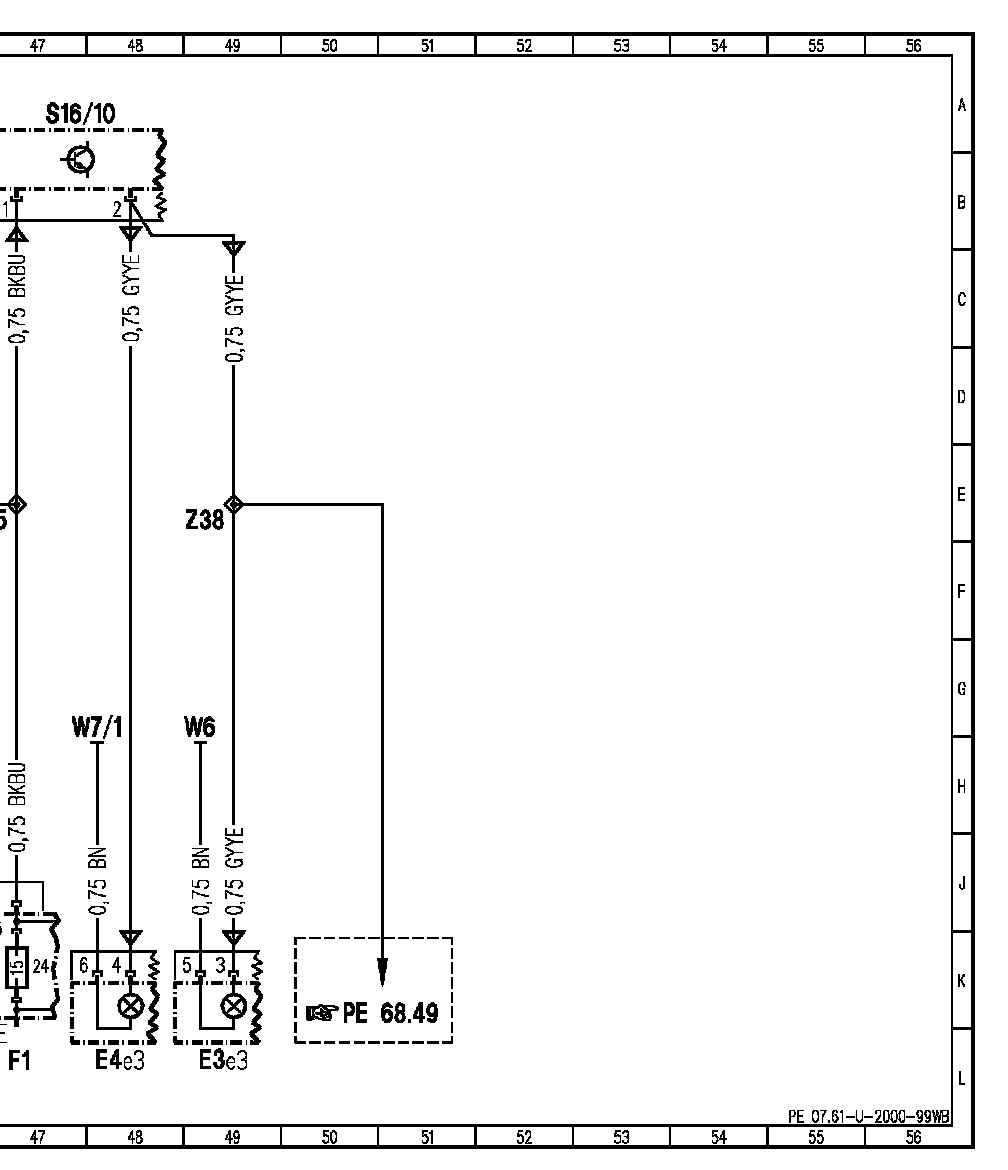

Wiring Diagram, Part 4:

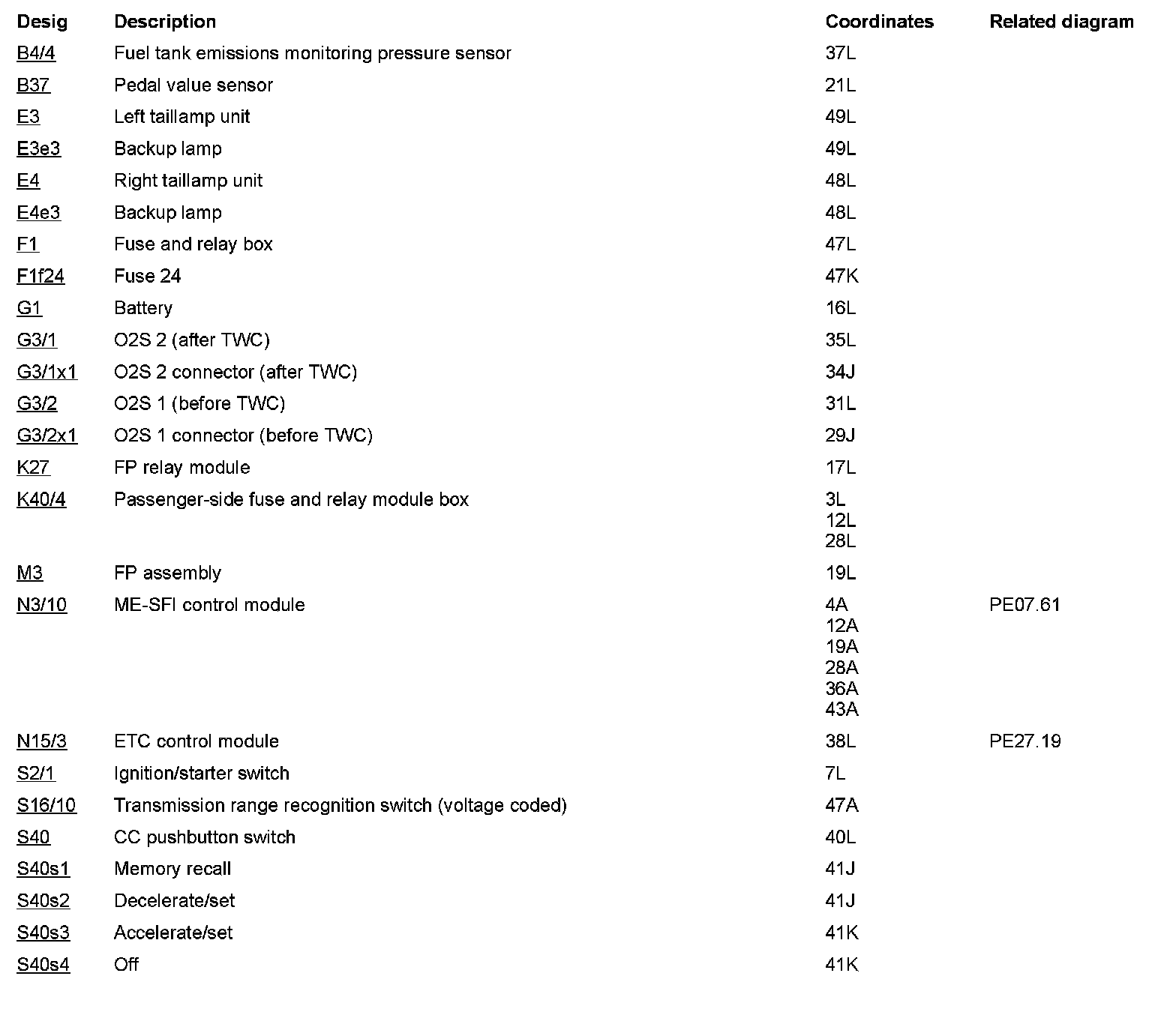

Component Description/Coordinates, B4/4 To S40s4:

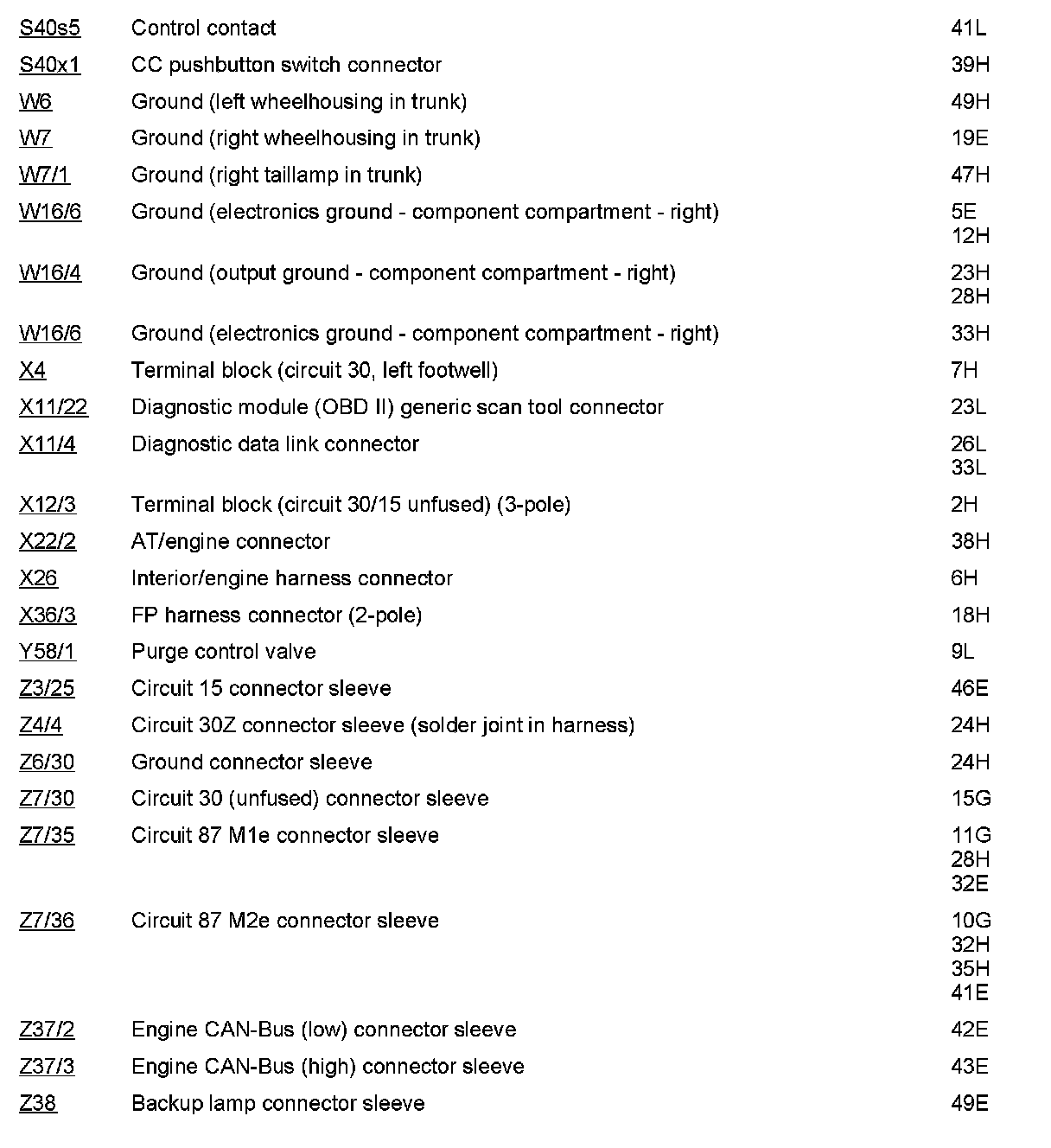

Component Description/Coordinates, S40s5 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
