Alignment Specs

Vehicle Alignment

Vehicle Level
Front Axle
Classic/Elegance +30 mm (-15 / +10)
Esprit/Sport/sport suspension +4 mm (-15 / +10)
Increase ground clearance +46 mm (-15 / +10)
Model 202.028 +33 mm (-15 / +10)
with AMG sports suspension -15 mm (-10 / +5)
Rear Axle
Classic/Elegance
Without Level Control +24 ± 10 mm
With Level Control +20 ± 10 mm
Esprit/Sport/sport suspension
Without Level Control -2 ± 10 mm
With Level Control -5 ± 10 mm
Increase ground clearance +45 ± 10 mm
Model 202.028 +29 ± 10mm
with AMG Suspension

Model 202.018/020/022/023/
026/078/080/083/086/120/
121/125/182 -3 mm (-10 / +5)

Model 202.024/025/028/029/
085/089/128/133/188/193 0 mm (-10 / +5)

NOTE:
- Use measuring device (01) 201 589 00 21 00 for front axle.
- Use measuring device (02) 201 589 01 21 00 for rear axle.











Front Toe-in 0°25'±10'
Toe At 20° Turn
Classic/Elegance -1°05'±30'
Esprit/Sport/sport suspension -0°45'±30'
Increase ground clearance -1°05'±30'
with AMG sports suspension 0°50'±30'
with code 957a C36 AMG -0°50'±30'

Front Camber



NOTE:

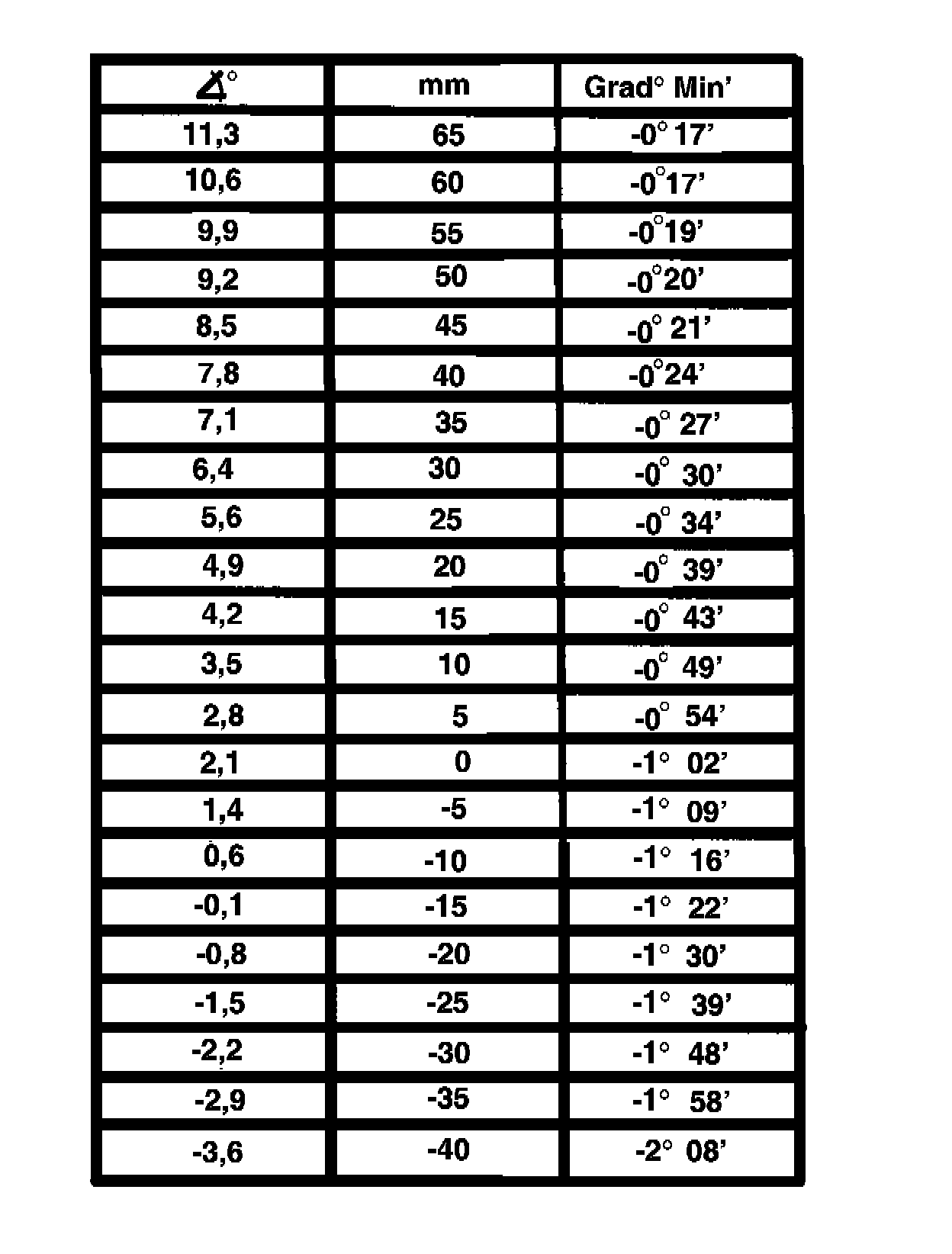

- Measure front axle level and obtain camber value from the table.
- Tolerance ±20', max. difference between left and right 20'.
Example: Front axle level (20 mm or 4.9°) = camber value (-0°39' ± 20')

Front Caster (VA=Front Axle Level; HA=Rear Axle Level)



NOTE:
- Measure front and rear axle level and obtain the front axle caster value (measured with the wheels turned 20°) from the table.
- Tolerance ± 30', max. difference between left and right 30'.
Example: Front axle level (20 mm or 4.9°) + Rear axle level (5 mm or -0.2°) = caster value (4°58' ± 30')


Rear Toe-in 0°33'±7'

Rear Camber [not adjustable]
(at vehicle level) +40 mm -0°30'±30'
+30 mm -0°45'±30'
+20 mm -1°00'±30'
+10 mm -1°15'±30'
0 mm -1°30'±30'
-10 mm -1°45'±30'
-20 mm -2°00'±30'
-30 mm -2°15'±30'
-40 mm -2°34'±30'
-50 mm -2°52'±30'
