Rear Axle Gears Adjustment Data Form

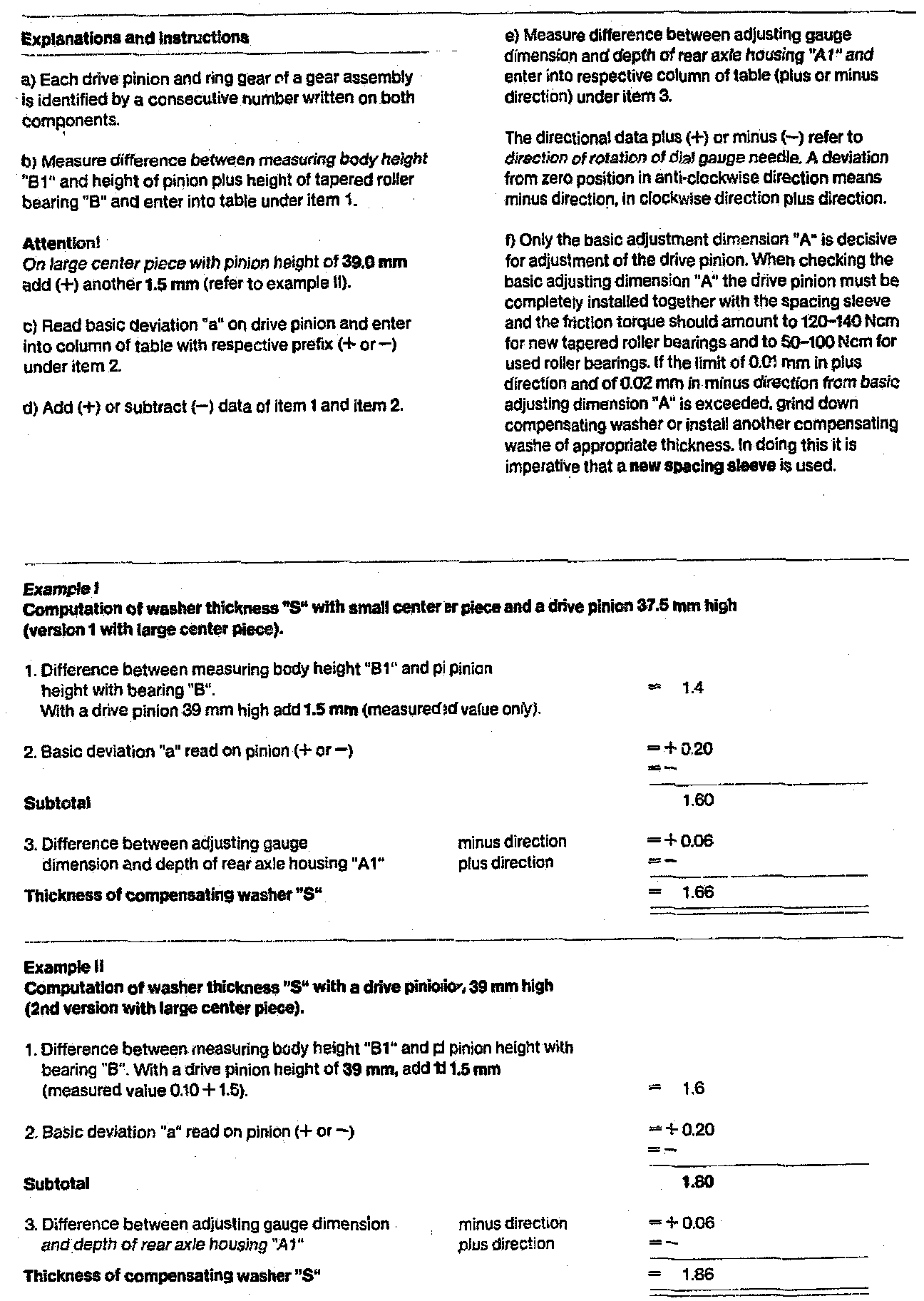

Adjustment Form (Page 1 Of 2):



Adjustment Form (Page 2 Of 2):
