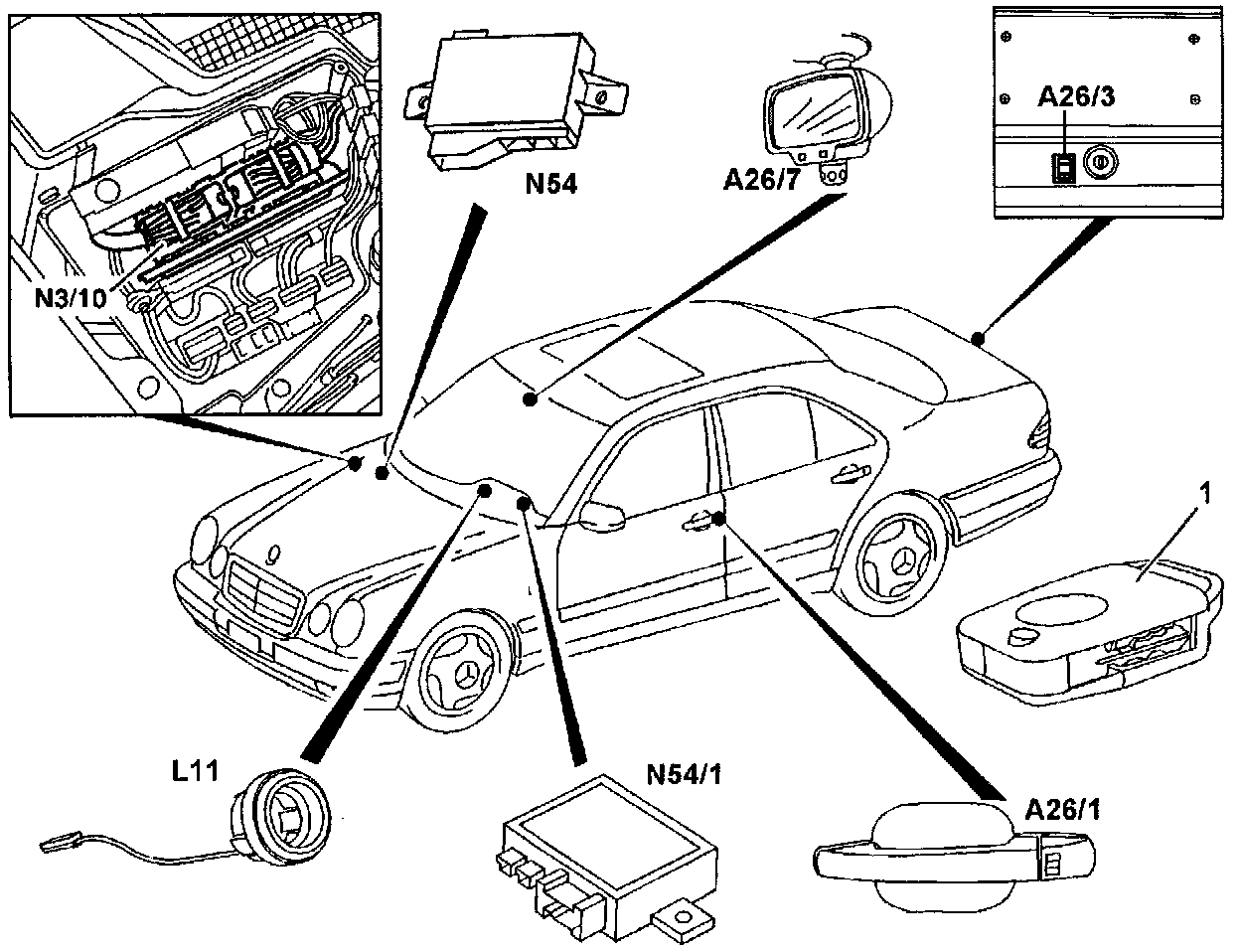

Component Locations

Model 210 with ME-SFI:
A26/1 Left front door IR receiver
A26/3 Trunk lid IR receiver
A26/7 RCL receiver (interior rear view mirror)
L11 Transponder coil (on ignition/starter switch)
N3/10 Engine control module (ME-SFI)
N54 RCL control module
N54/1 IR DAS control module
(behind instrument cluster)
1 IR transmitter with transponder

NOTE: Mechanical lock cylinders are located on right front door and trunk lid only.
A mechanical lock cylinder is not located on the left front door.
