Function Test

Preliminary Work:
- Check operation of central locking
- Check batteries in infrared transmitter key





Models 129,140:

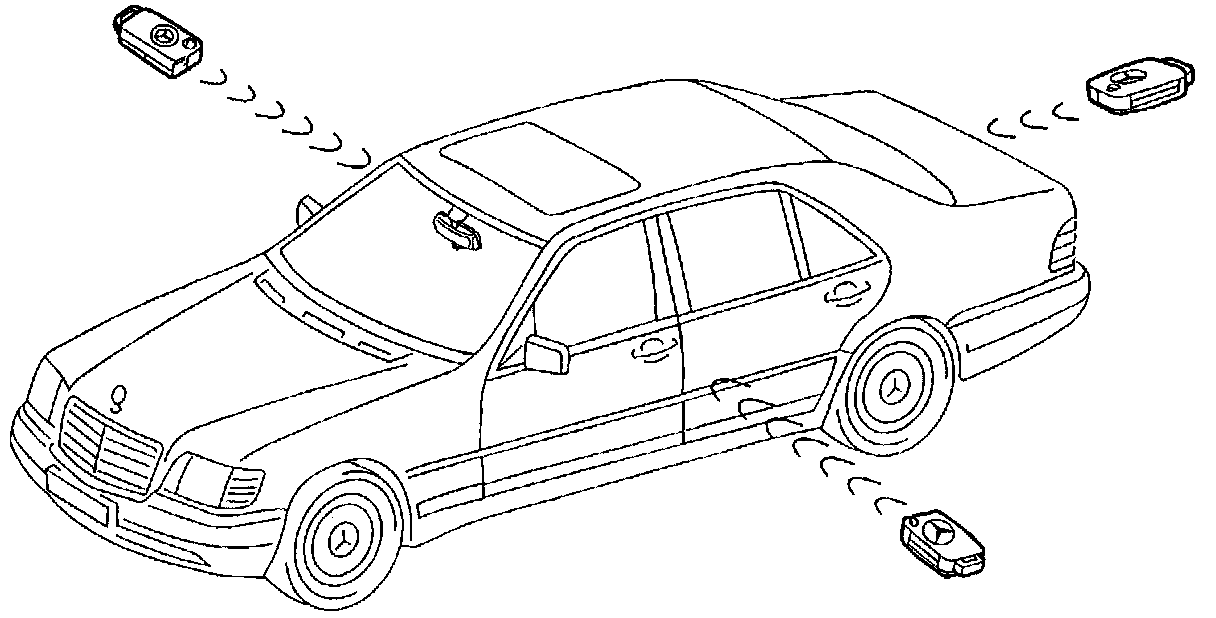

(model 140 shown)





Models 202, 210:

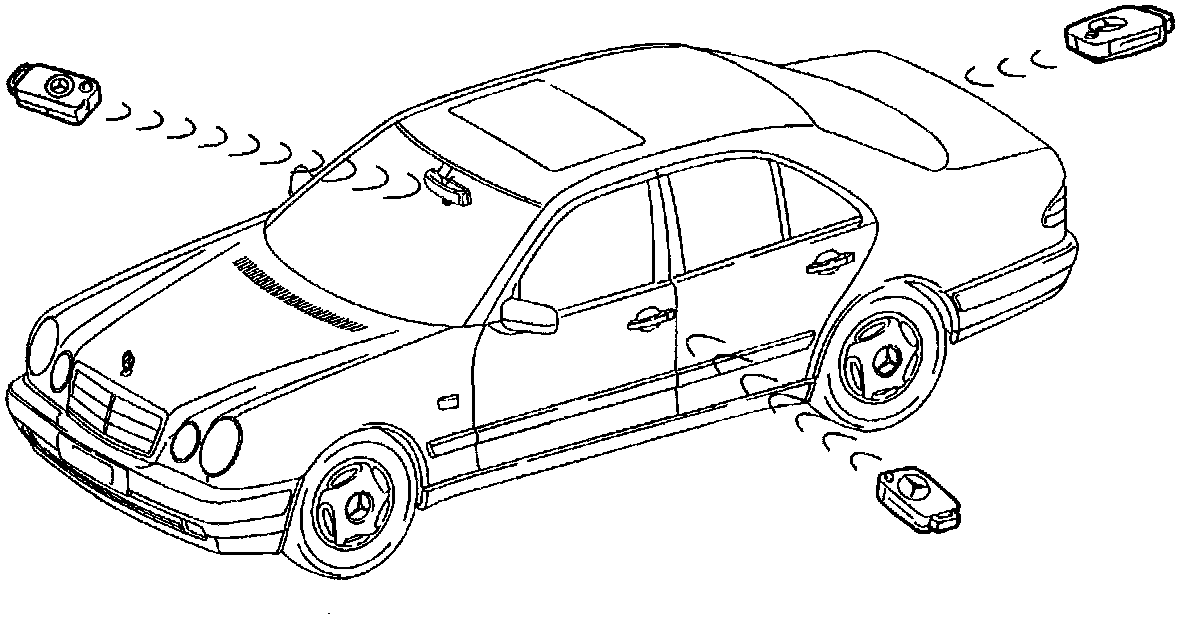

(model 210 shown)

Preparation for Test:
1. Battery voltage 11 - 14 V,
2. Fuses ok,
3. Central locking system in proper operating condition,
4. Batteries in IR transmitter ok,
5. IR transmitter synchronized,
6. Key removed from steering lock,
7. Side windows lowered approx. 100 mm (4 in.),
8. Sliding/pop-up roof open,
9. All doors and trunk lid closed,
10. Central locking system unlocked.

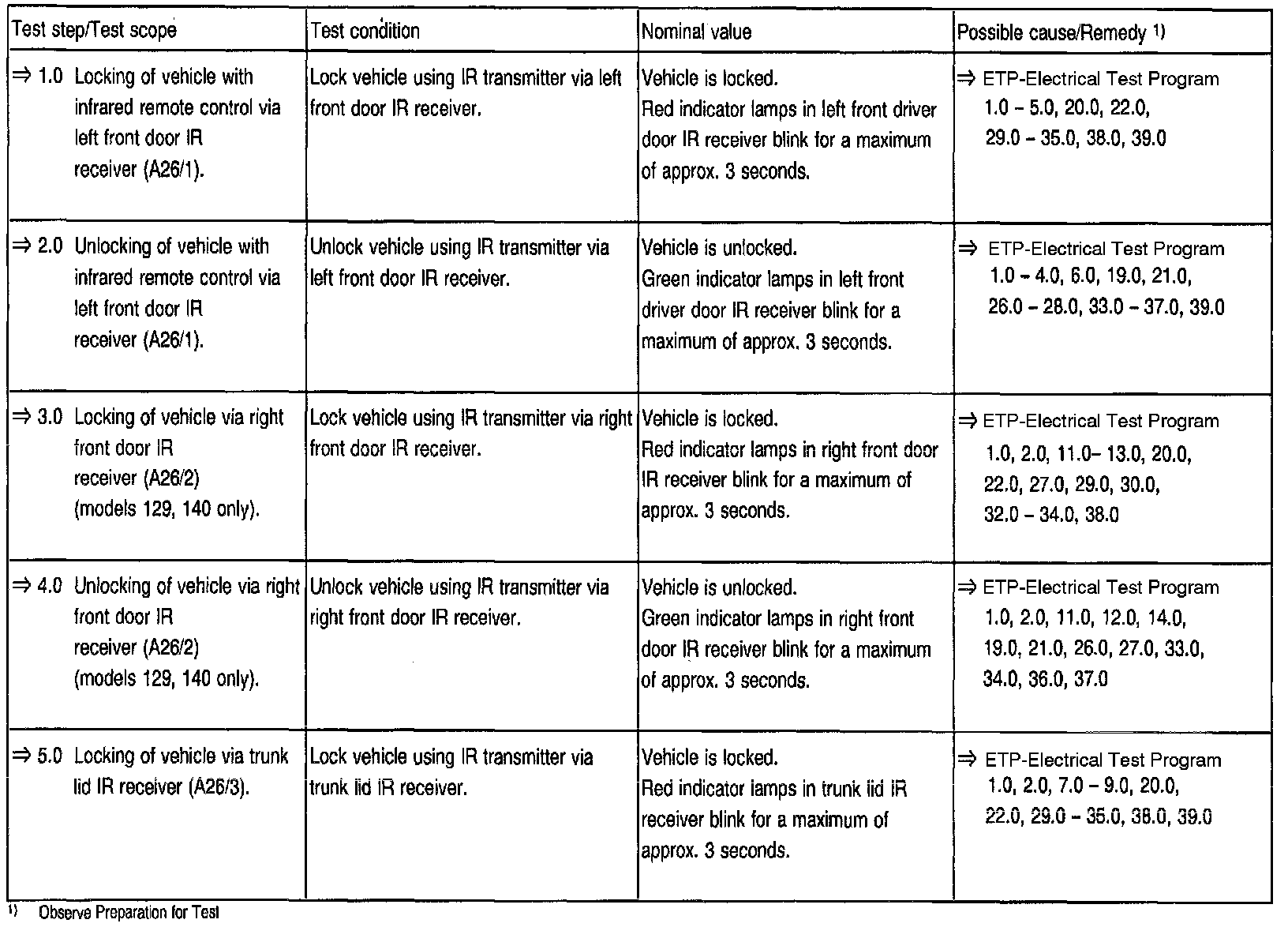

Test Steps/Test Scope 1.0, 2.0, 3.0, 4.0 & 5.0

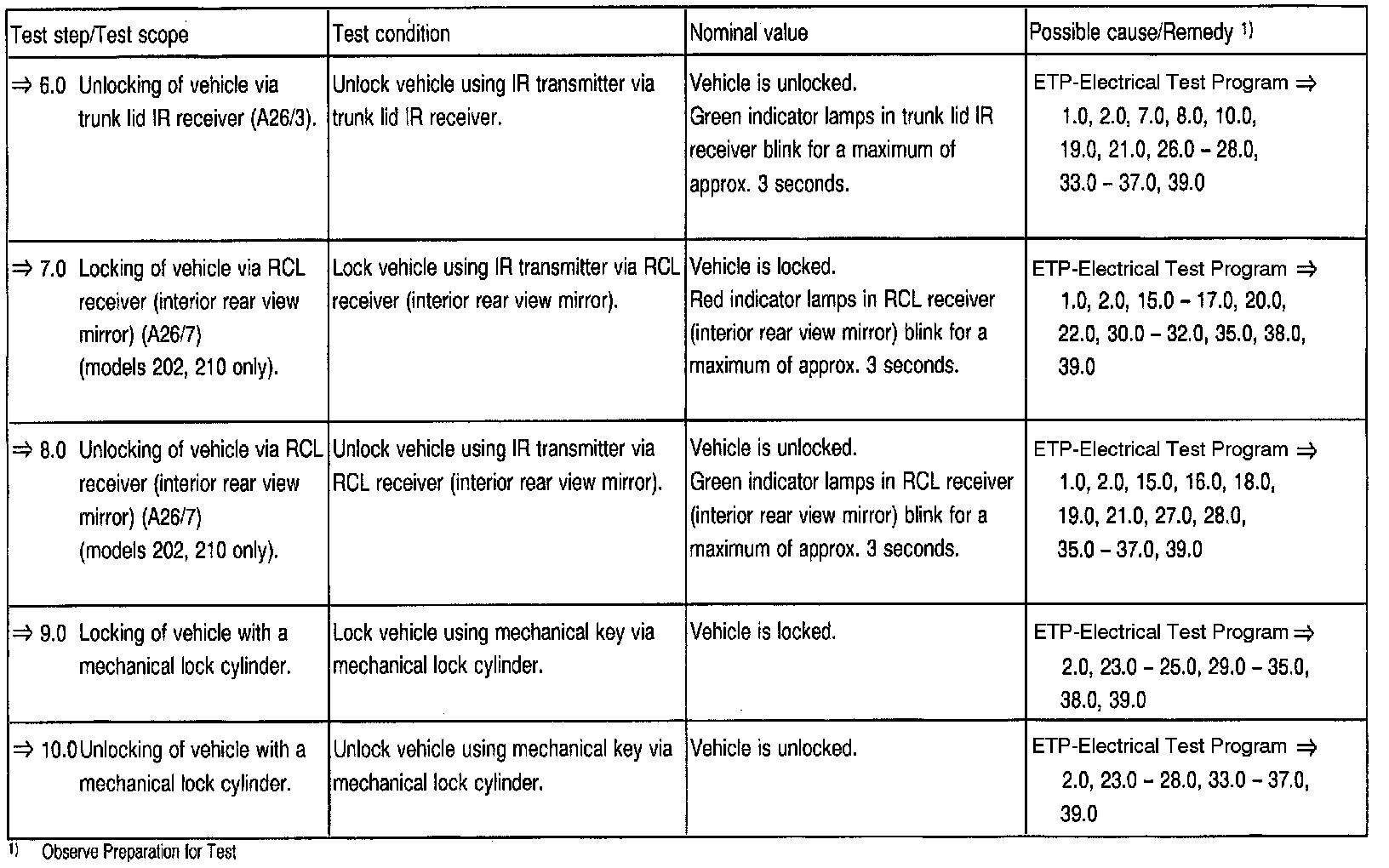

Test Steps/Test Scope 6.0, 7.0, 8.0, 9.0 & 10.0

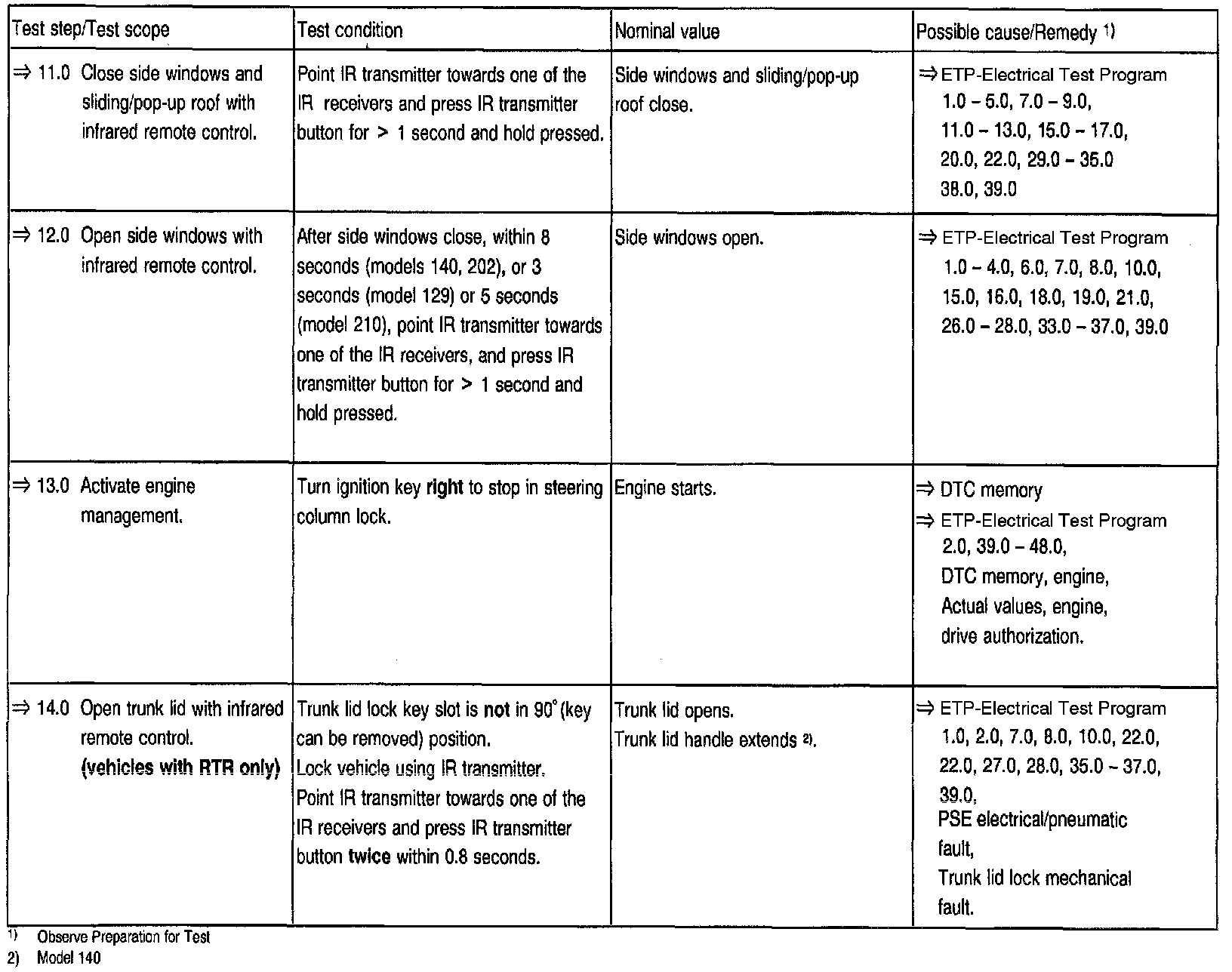

Test Steps/Test Scope 11.0, 12.0, 13.0, & 14.0
