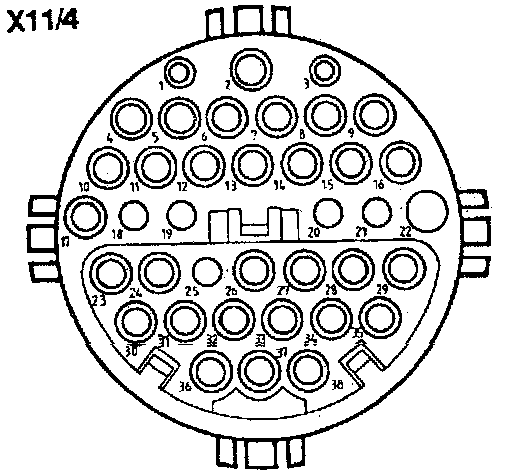

Diagnostic Connector - ABS

LEGEND
1. Ground, circuit 31
2. Voltage, circuit 87
3. Voltage, circuit 30
4. EDS Electronics for diesel systems
5. Not used
6. ABS/ETS Anti-lock brake/Electronic traction system
7. CC/ISC Cruise control/idle speed control
8. BM Base module
9. Not used
10. ETC Electronic transmission control
11. ADS Adaptive damping system
12. SPS Speed-sensitive power steering
13. Not used
14. Not used
15. IC Instrument cluster
16. Not used
17. Not used
18. Not used
19. DM Diagnostic module
20. CCM Combination control module
21. Not used
22. Not used
23. ATA Anti-theft alarm
24. Not used
25. Not used
26. Not used
27. Not used
28. Not used
29. Not used
30. AB Airbag/ETR (SRS)
31. RCL Remote central locking
32. Not used
33. Not used
34. CNS Communication and navigation system
35. Not used
36. Not used
37. Not used
38. Not used
