System Diagram
System Diagram
With CODE 212a.

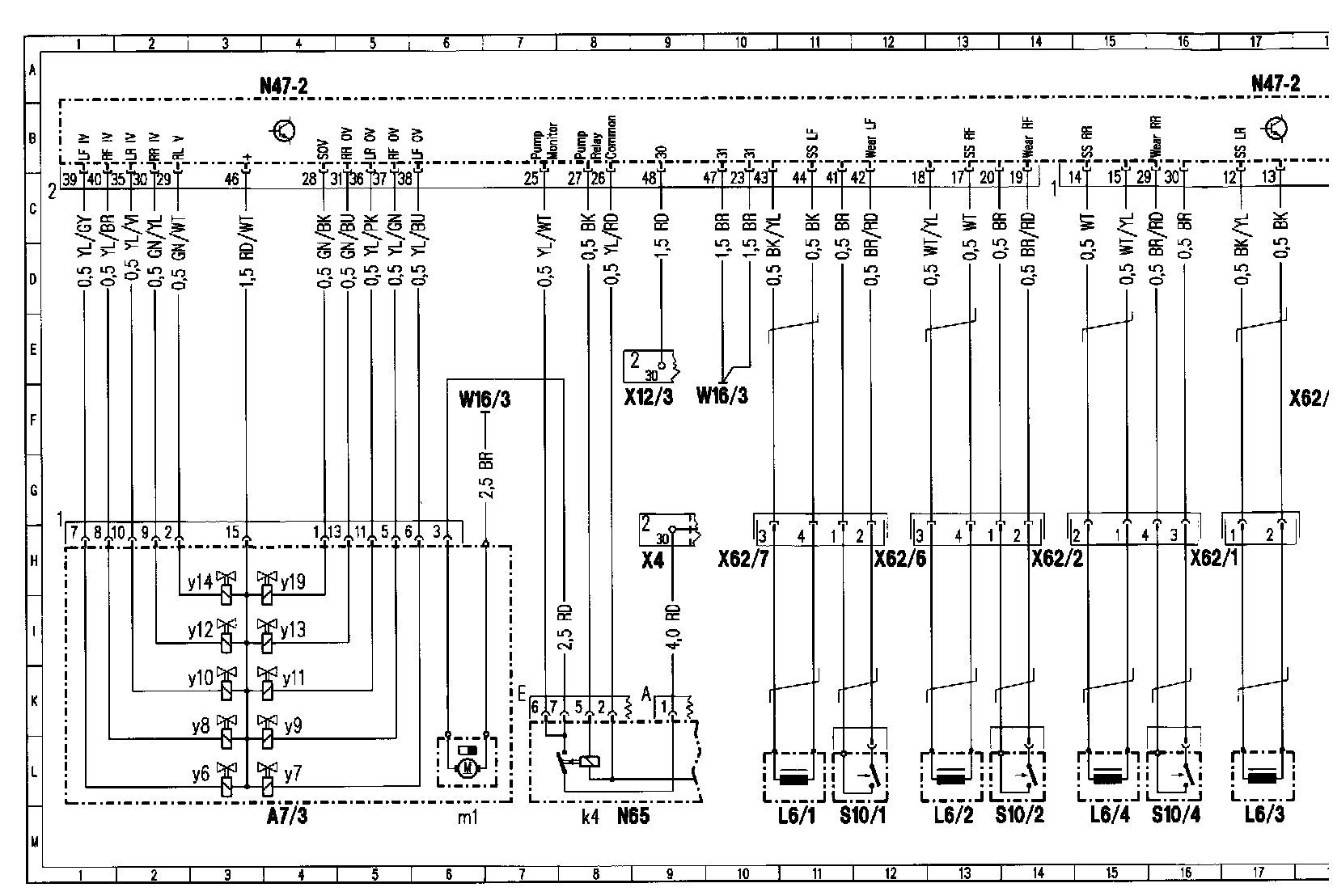

���%��%Wiring Diagram:

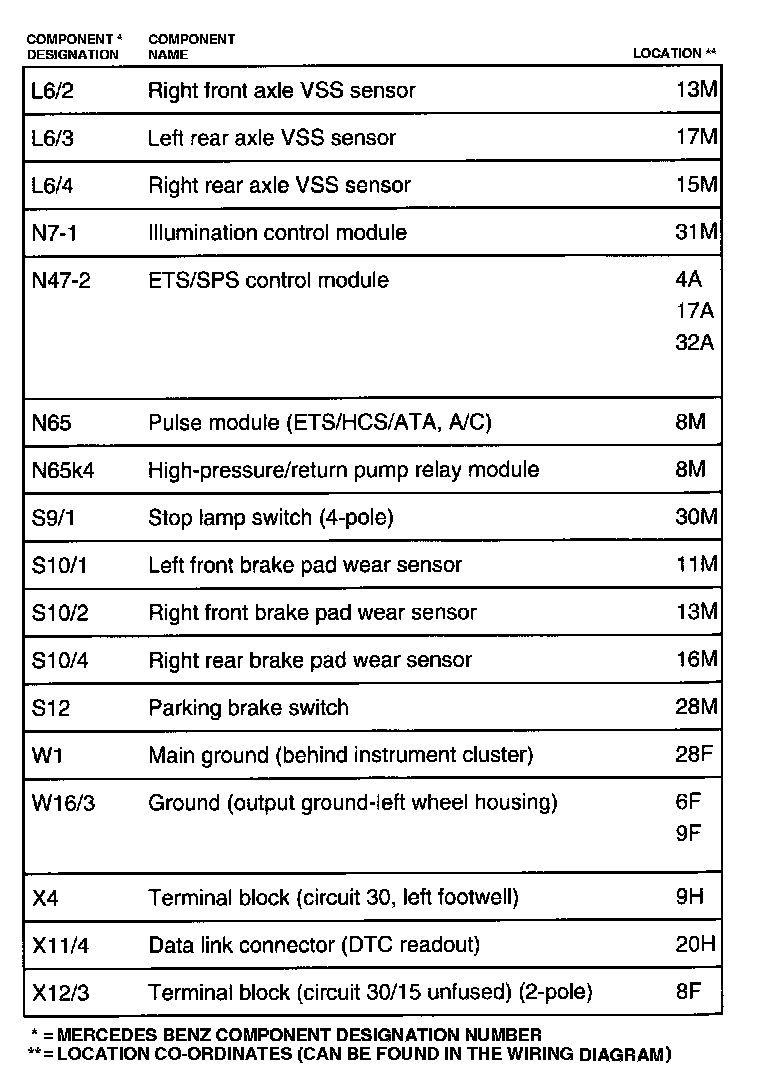

Component Grid Location
A1 - L6/1:
L6/2 - X12/3:
X12/5 - Z89:
Z99/1:
