System Diagram
Diesel Injection System W/ Inline Pump (IFI) & Electronic Control

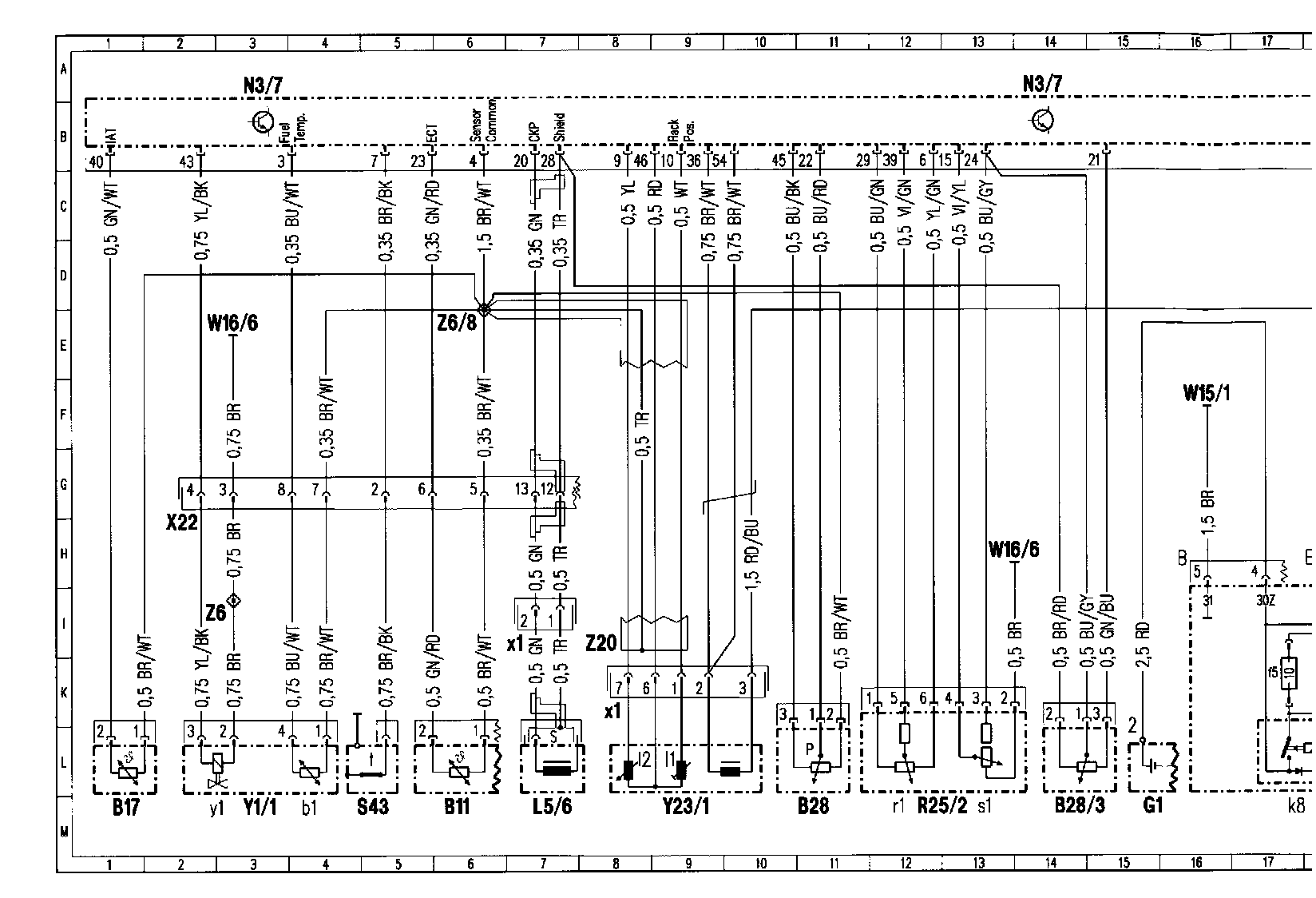

L�� ��� Wiring Diagram:
Component Grid Location
B11 - R9:

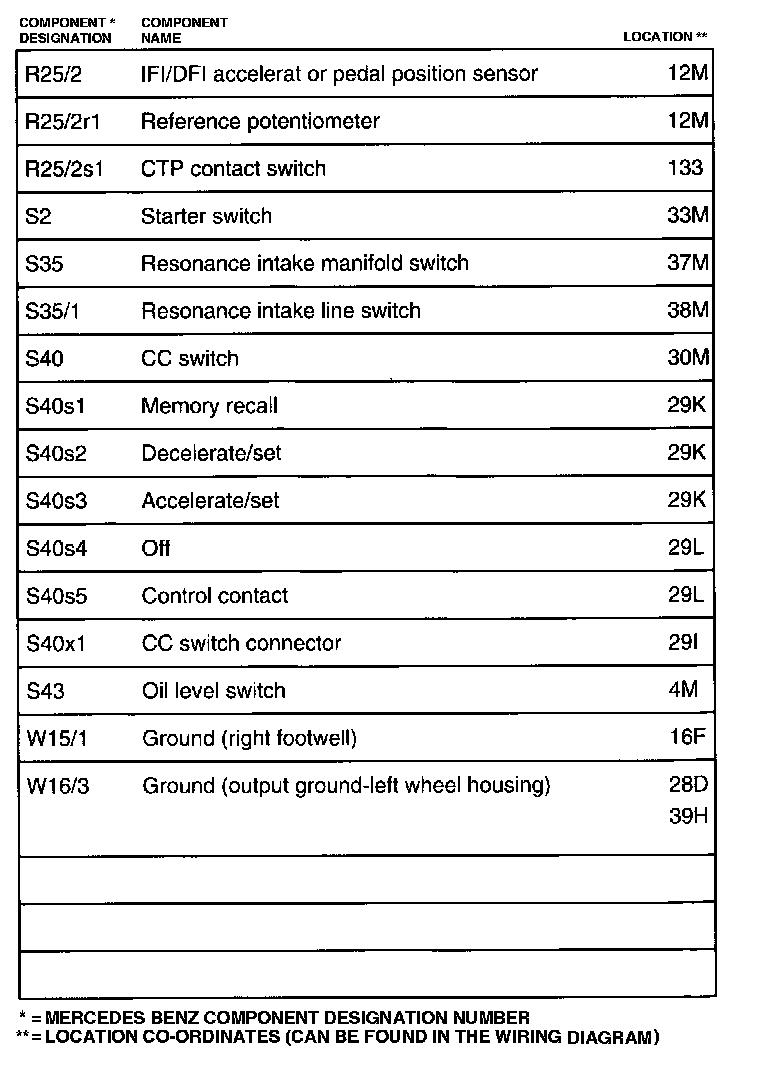

R25/2 - W16/3:
W16/6 - Y1/1y1:

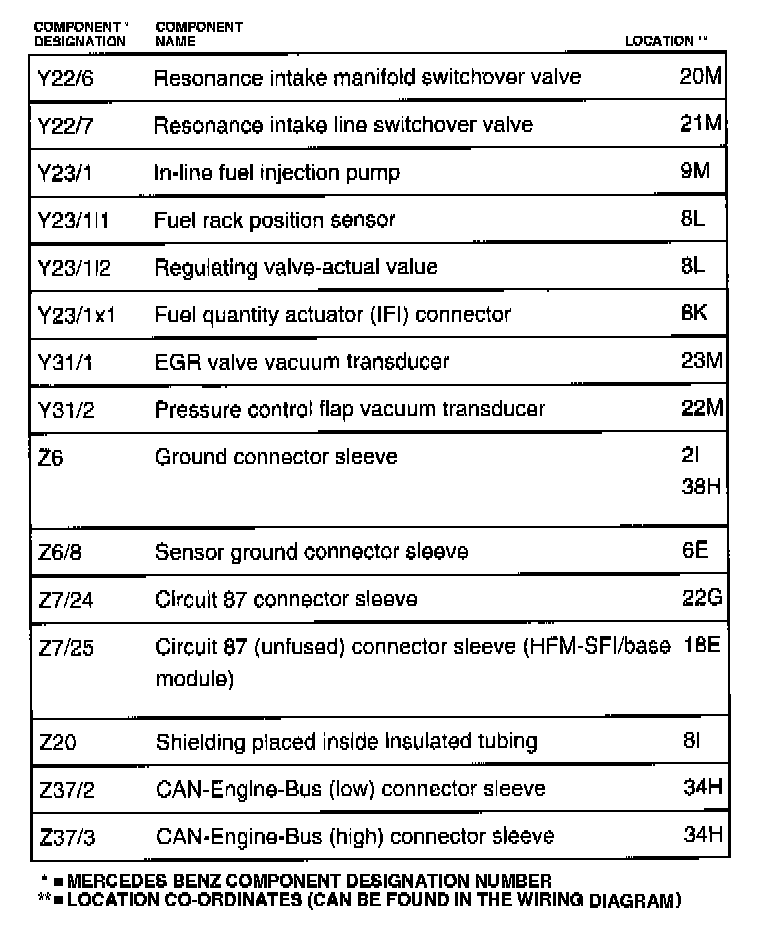

Y22/6 - Z37/3:
Diesel Injection System W/ Inline Pump (IFI) & Electronic Control
Component Grid Location
