Mercedes Benz
>>
1997
>>
E 300D (210.020) L6-3.0L DSL (606.912)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
CD Changer
CD Changer

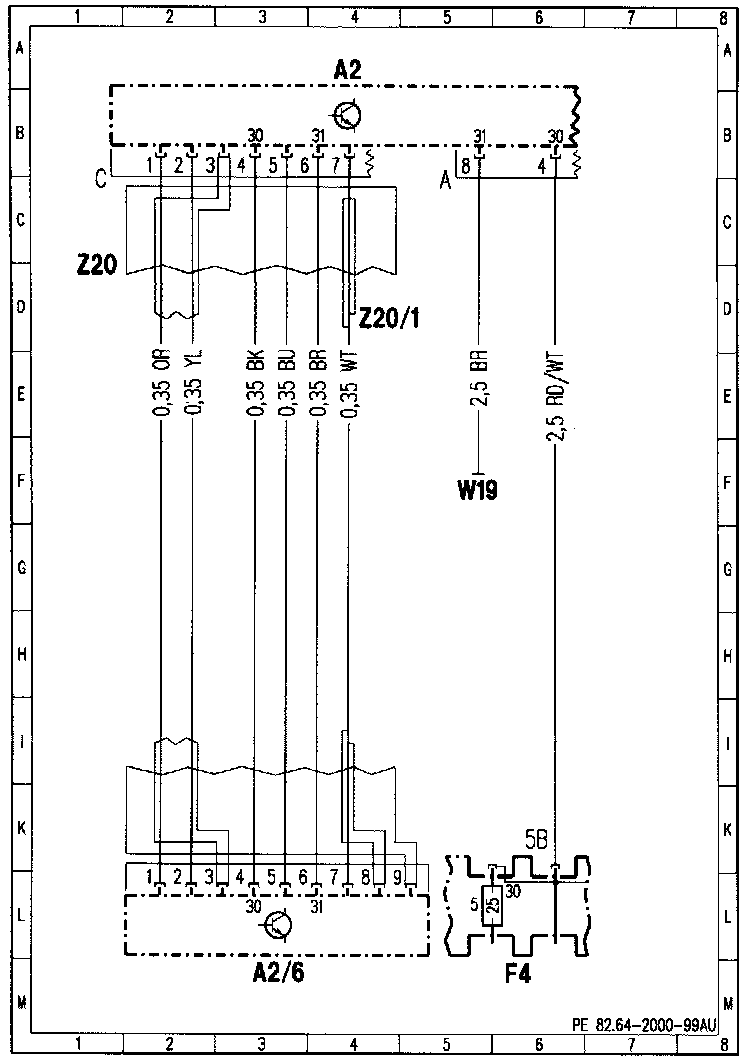

Wiring Diagram:

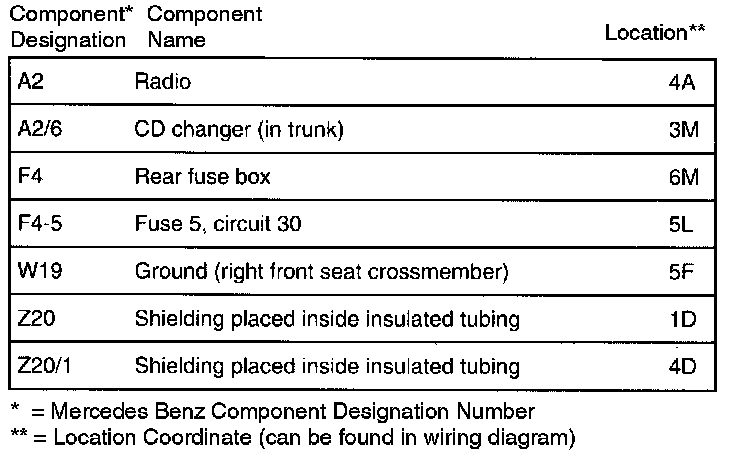

Component Grid Location:
