Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1997
>>
E 300D (210.020) L6-3.0L DSL (606.912)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
System Diagram
Starter, Generator

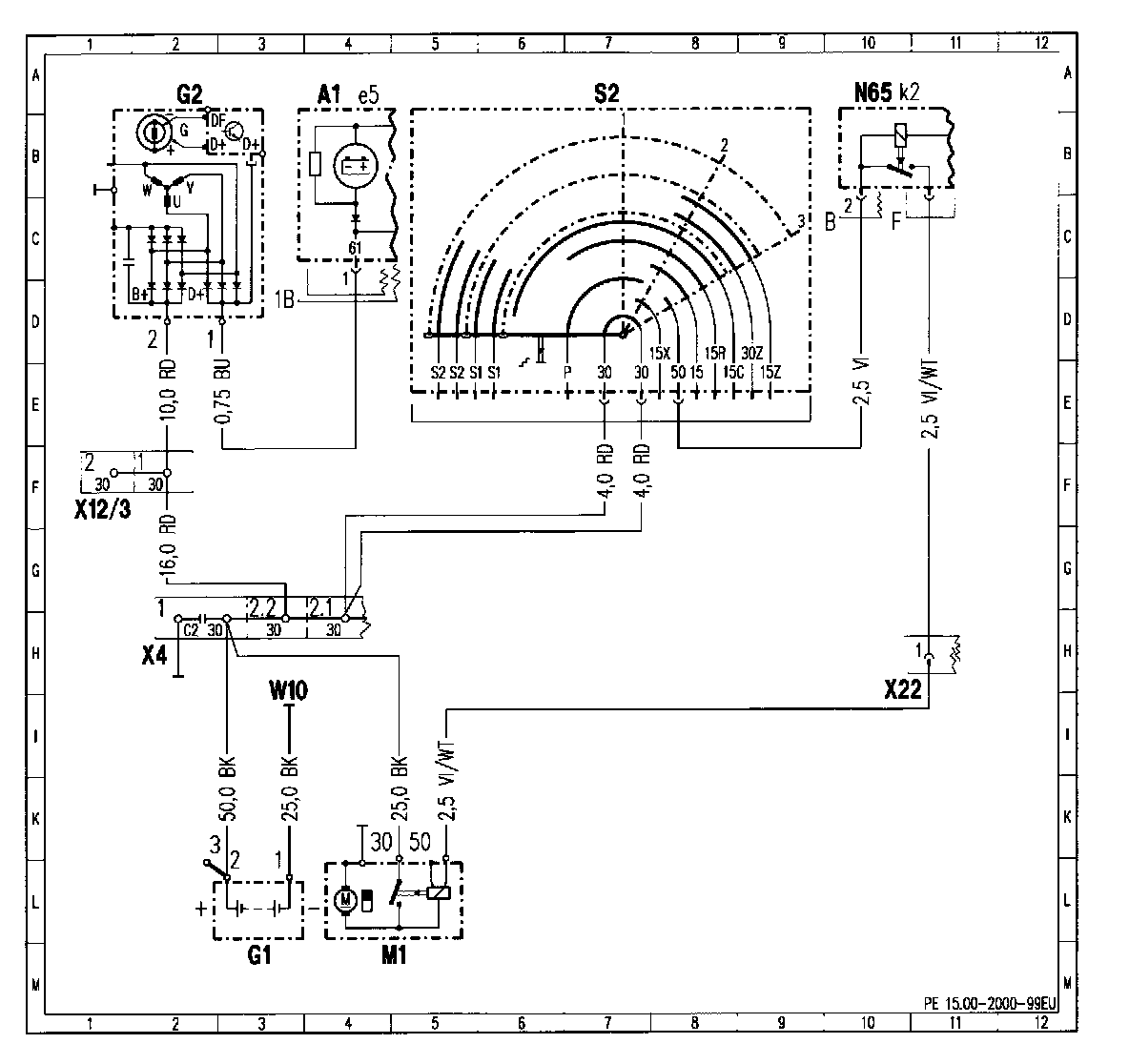

Wiring Diagram:

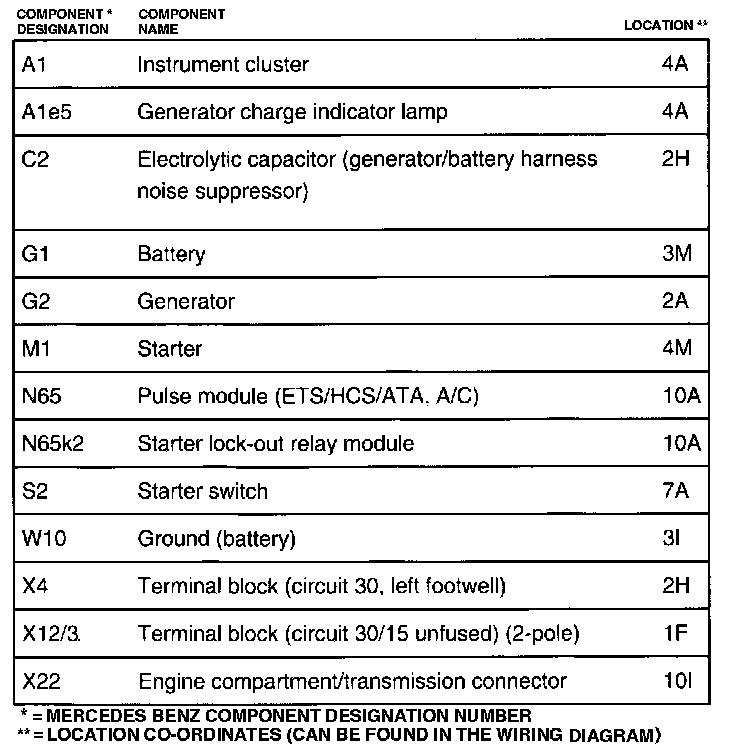

Component Grid Location (A1 - X22):
