Computers and Control Systems

Engine 606.912, Model 210

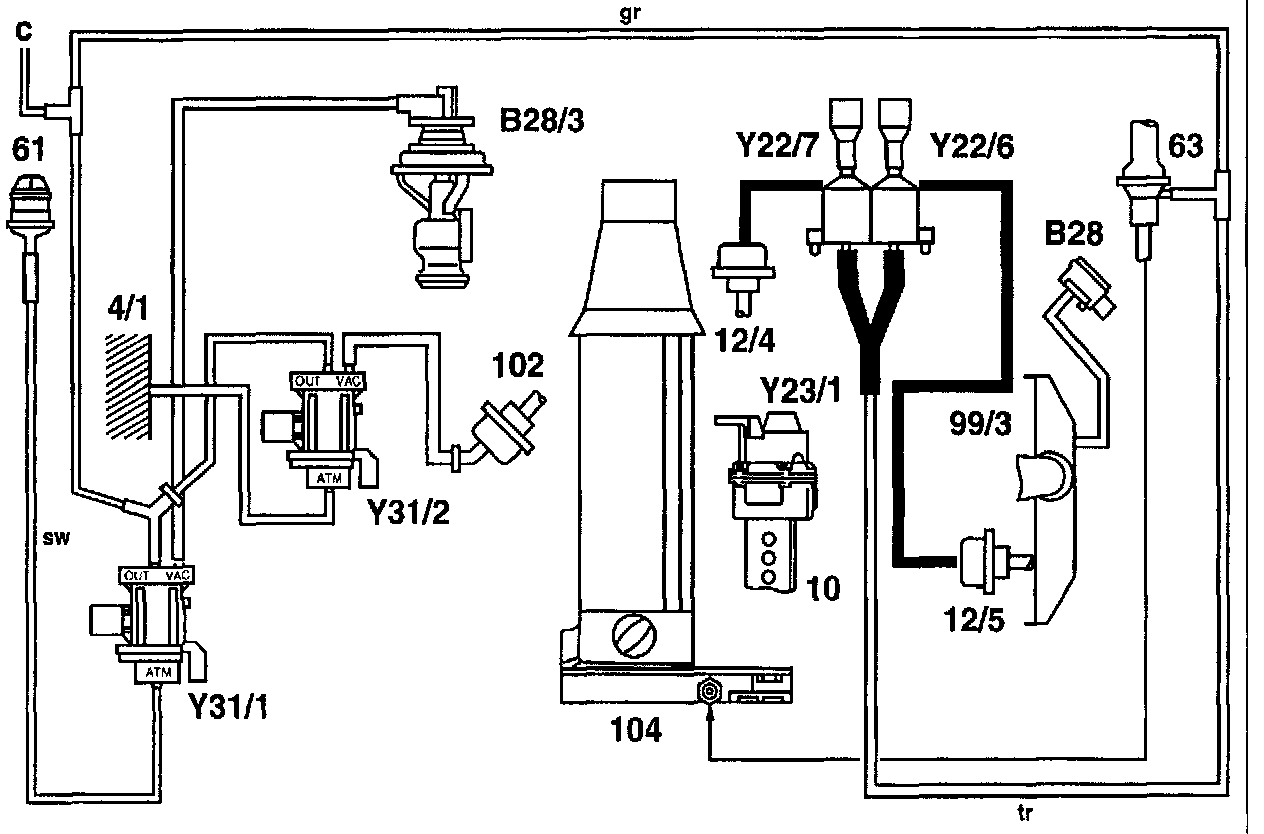

Figure 1
4/1 Air filter upper housing
10 In line fuel injection pump
12/4 Resonance intake line vacuum element
12/5 Resonance intake manifold vacuum element
61 Filler
63 Check valve with orifice 0.8 mm
99/3 Resonance intake manifold
102 Pressure control flap vacuum element
104 Vacuum pump

ATM Vent to component compartment
OUT Outlet from vacuum transducer (Y31/2)
VAC Vacuum supply from vacuum pump

B28 Pressure sensor
B28/3 EGR lifting sender
Y22/6 Resonance intake manifold switchover valve
Y22/7 Resonance intake line switchover valve
Y23/1 Fuel quantity actuator (IFI)
Y31/1 EGR valve vacuum transducer
Y31/2 Pressure control flap vacuum transducer

gr grey
tr transparent
sw black

c Remaining consumers
