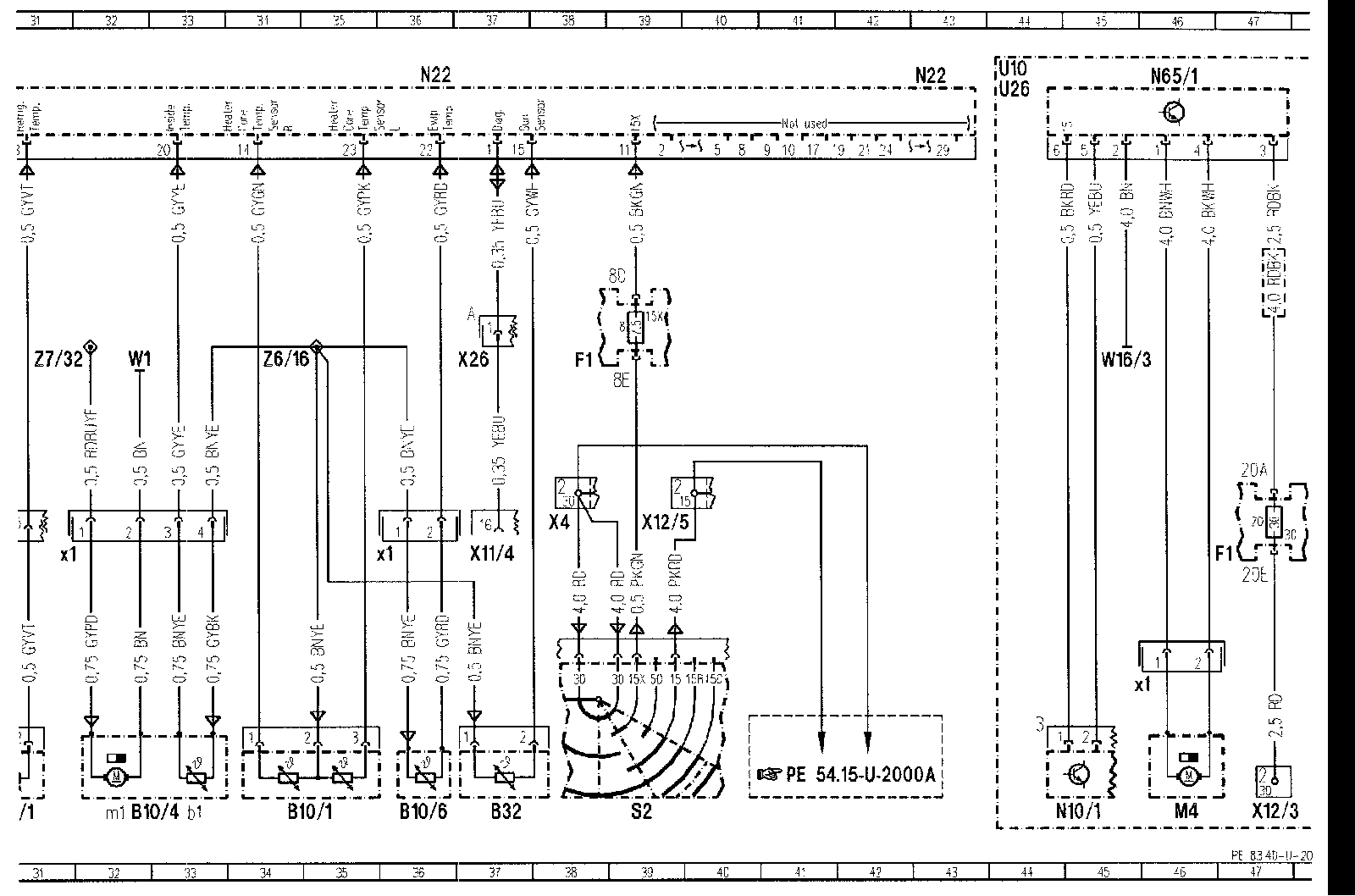

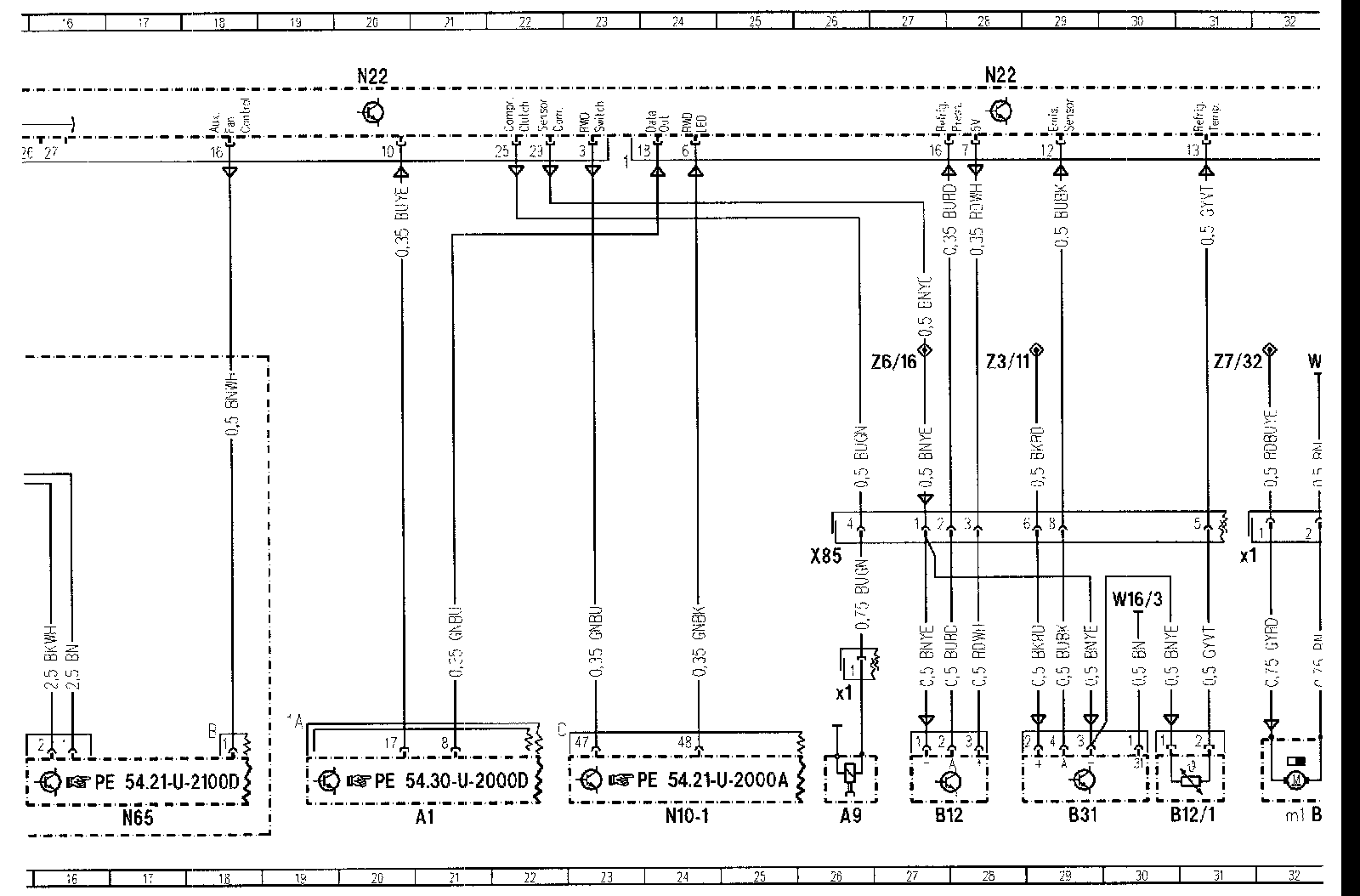

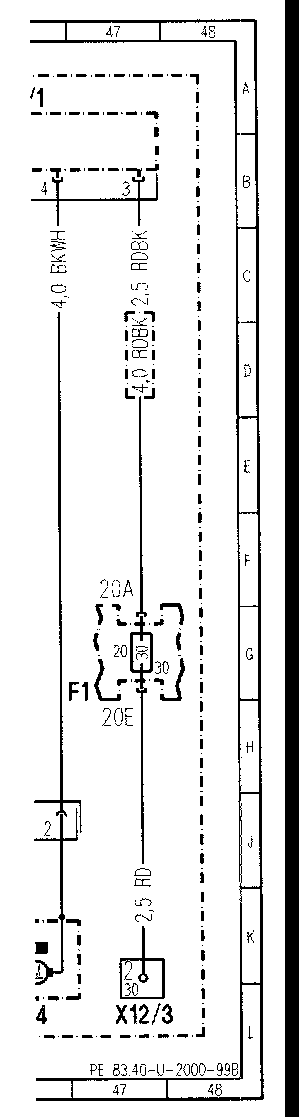

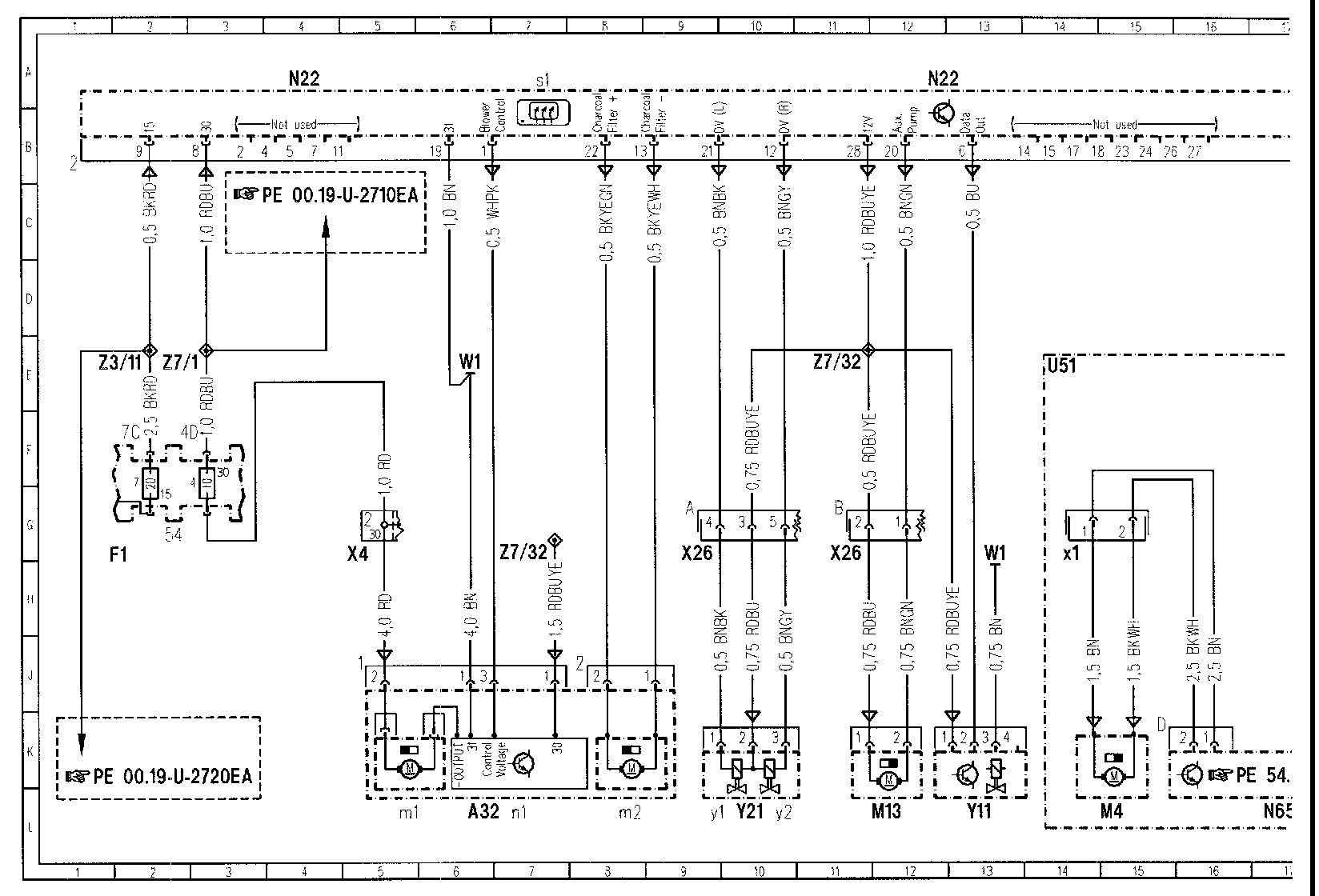

Automatic Air Conditioning (AAC) PE83.40-U-2000B



83.40-U-2000B Model 210 as of 06/01/96 up to 08/31/97 with CODE (581a) Air Conditioning (Automatic)

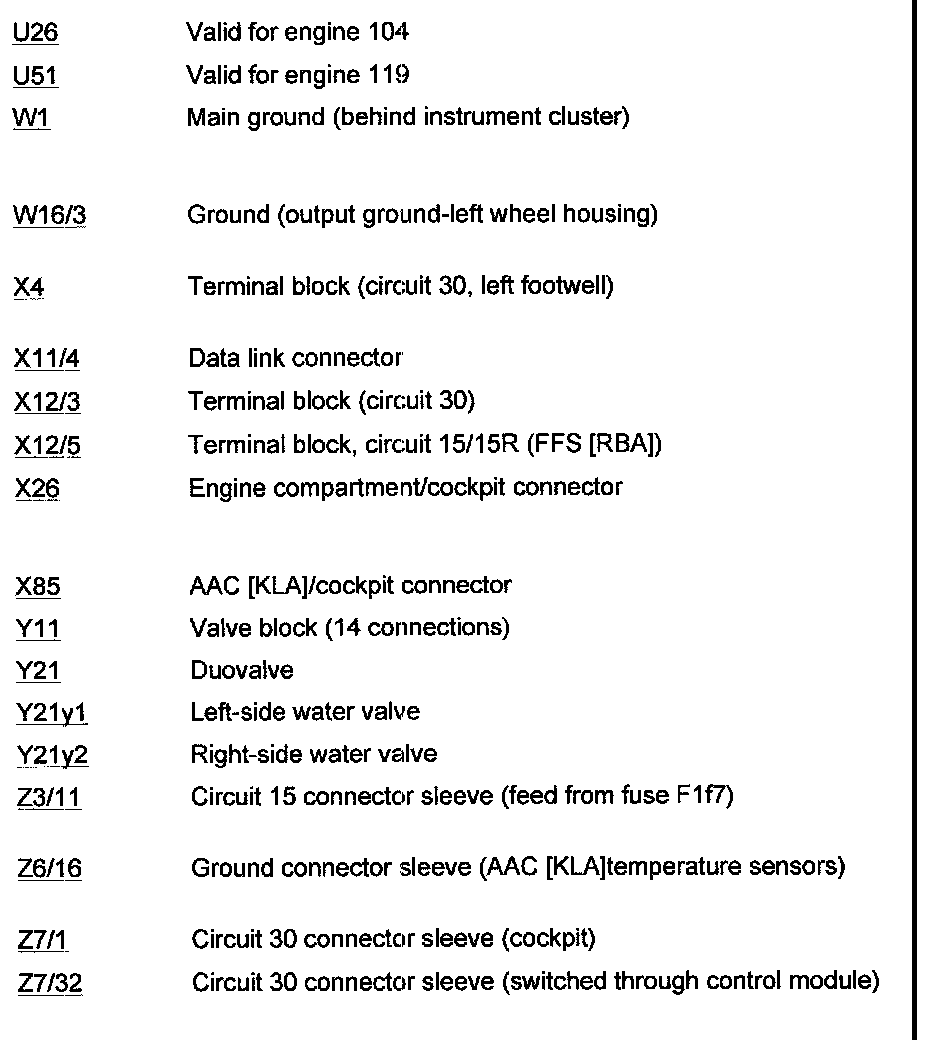

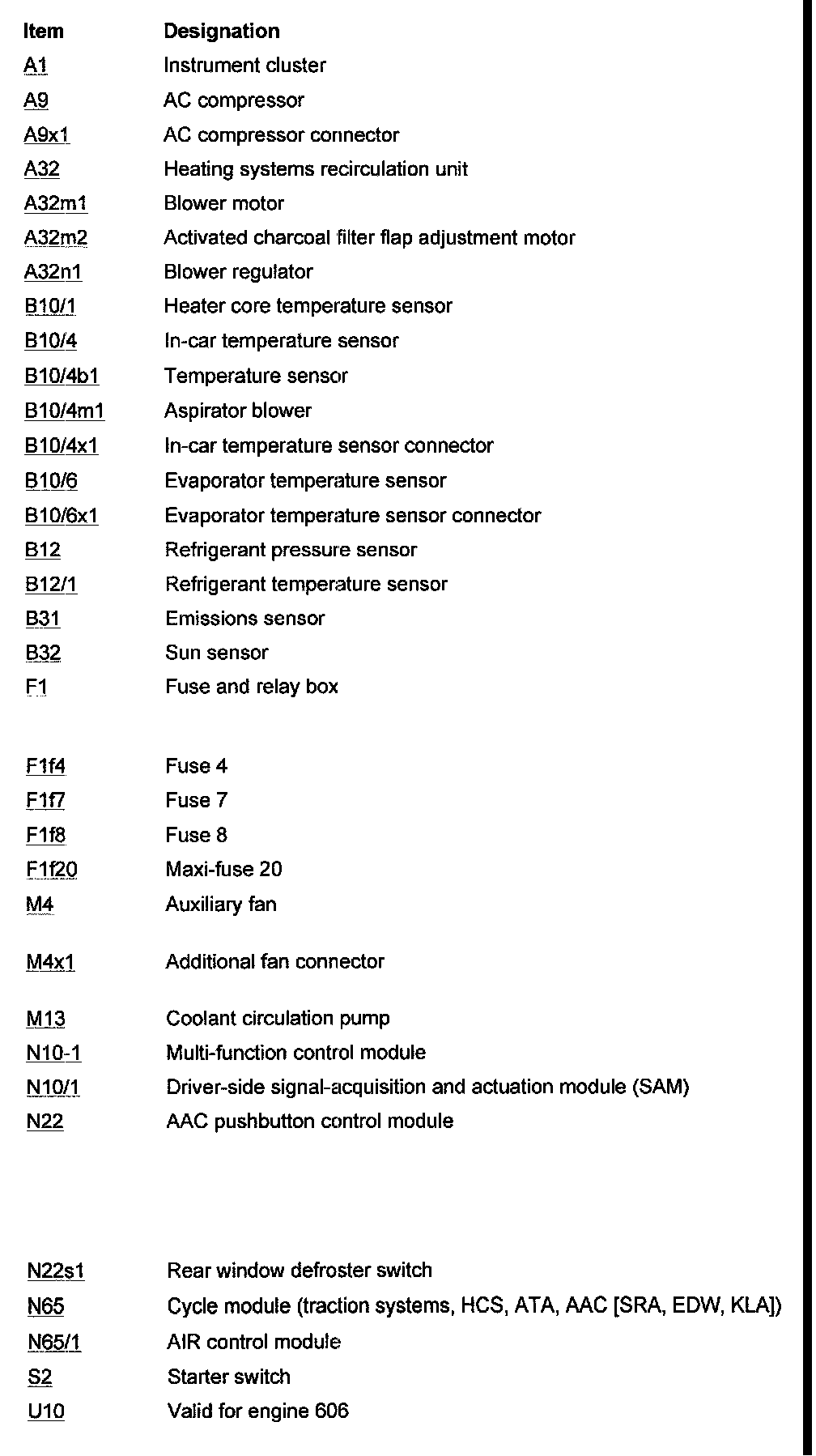

Legend
