Evaporative Emissions System: Diagrams

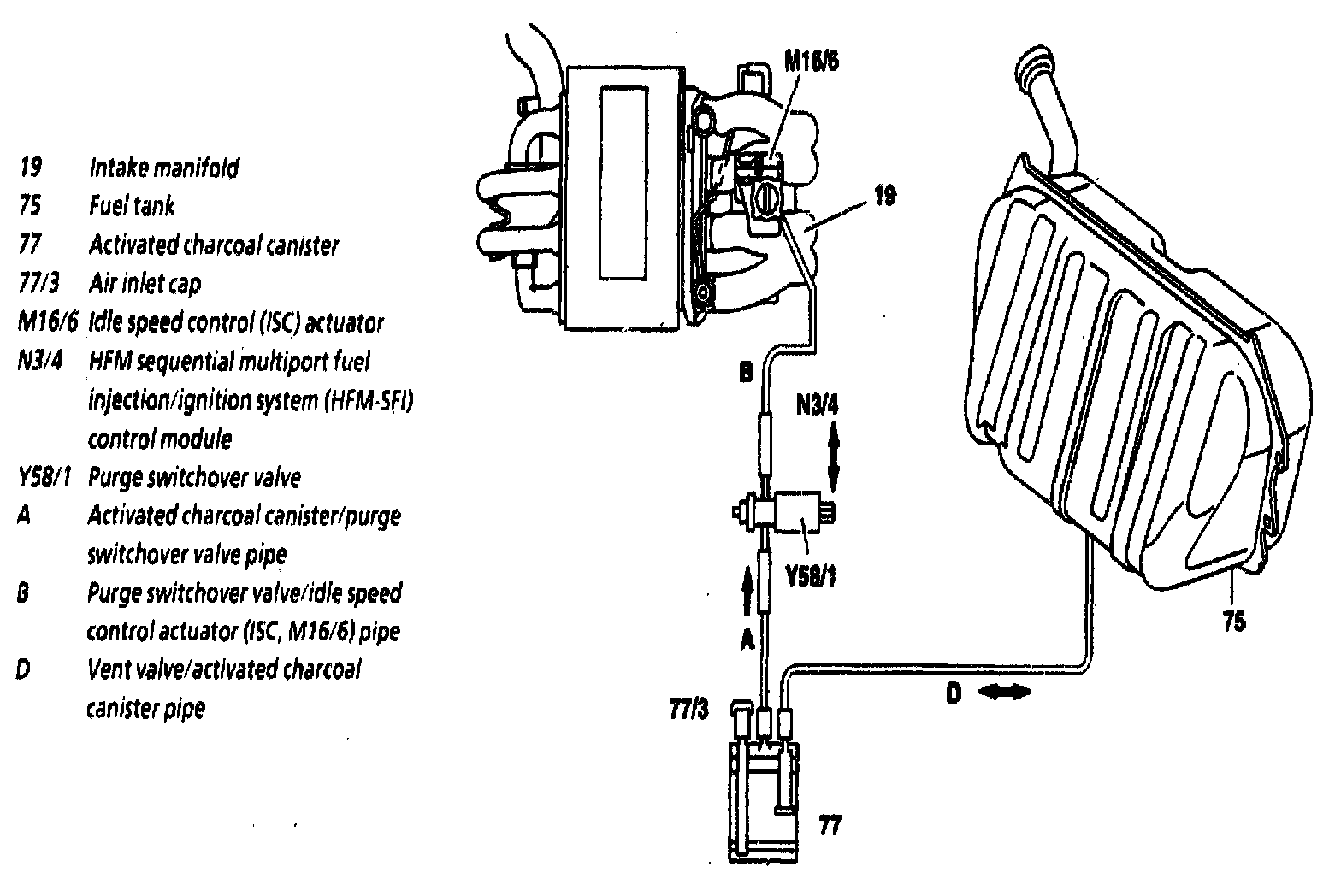

Connecting diagram of evaporation emission control system HFM-SFI
model 210 with engine 104






Connecting diagram of evaporation emission control system HFM-SFI
model 170, 210 with engine 111
