Engine - Coolant Temperature Sensor/Switch: Diagrams

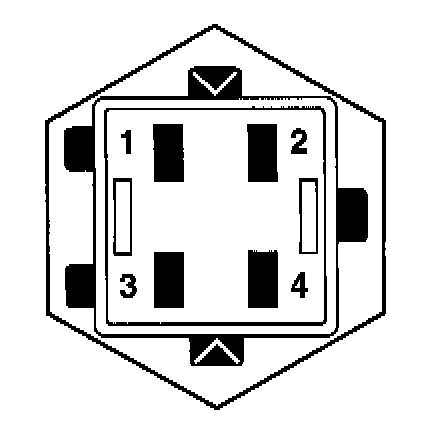

ECT sensor with modified 4-pole plug connection

Pole assignment of ECT sensor:
1 and 4: Engine control module
2 and 3: A/C pushbutton control module
