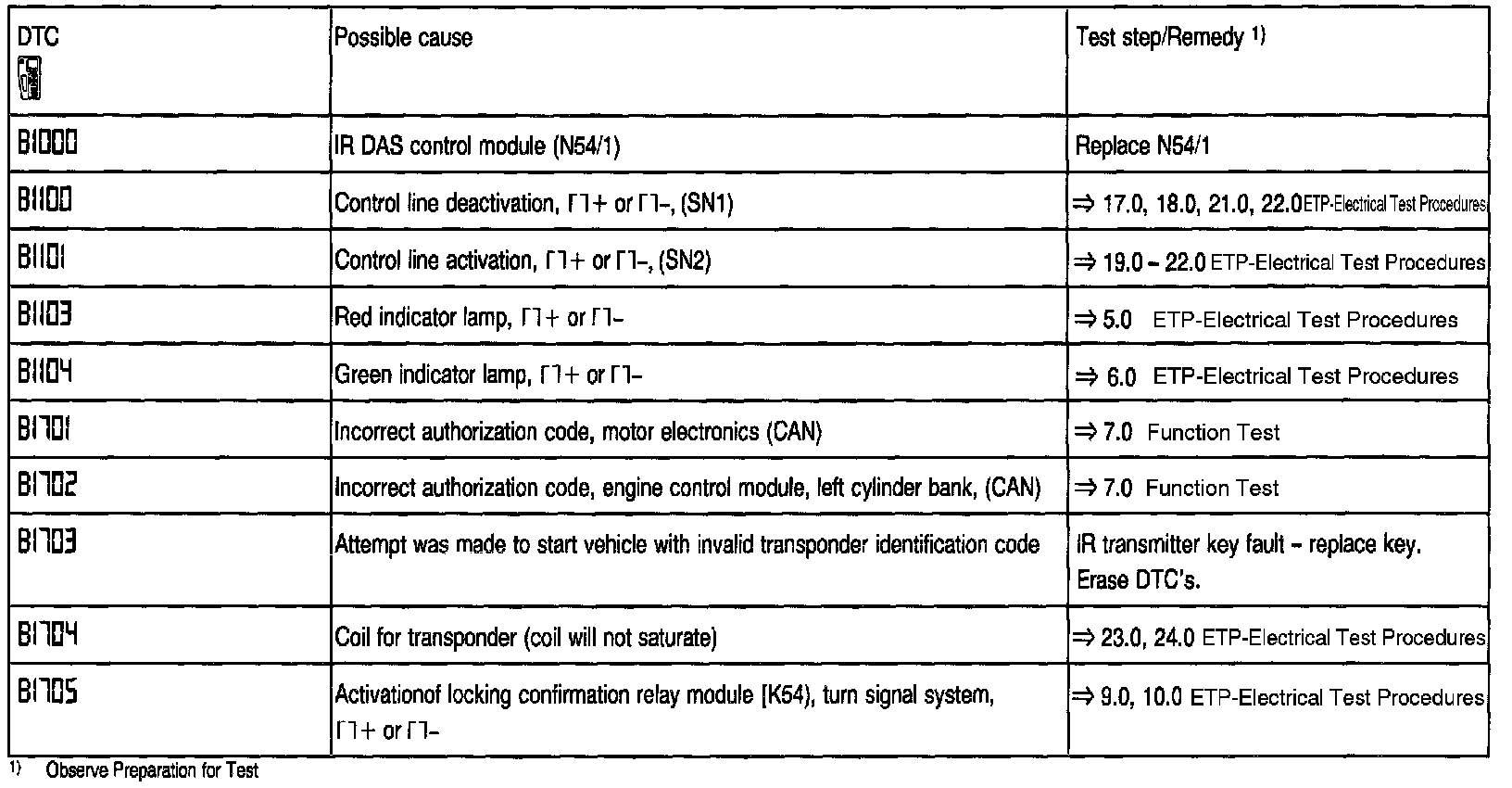

Diagnostic Trouble Code (DTC) Memory

Model 210.072 up to 06/96

Preliminary Work:
- Perform function test

Preparation for Test (DTC readout):
1. Fuses OK.
2. Battery voltage > 11 V.
3. Unlock vehicle.
4. Ignition ON.
5. Connect Hand-Held Tester (HHT).

NOTE: The diagnostic trouble codes (DTC's) can only be read out and erased using the Hand-Held Tester (HHT).

Note regarding Diagnostic Trouble Codes (DTC's):
Current diagnostic trouble codes are highlighted in black on the display. Additional detailed fault information based on fault type is displayed with nearly all diagnostic codes (DTC's) such as:







Additionally, further diagnostic info. such as fault frequency is displayed with some of the diagnostic trouble codes.






Special Tools
