E 420 (210.072) V8-4.2L (119.985)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

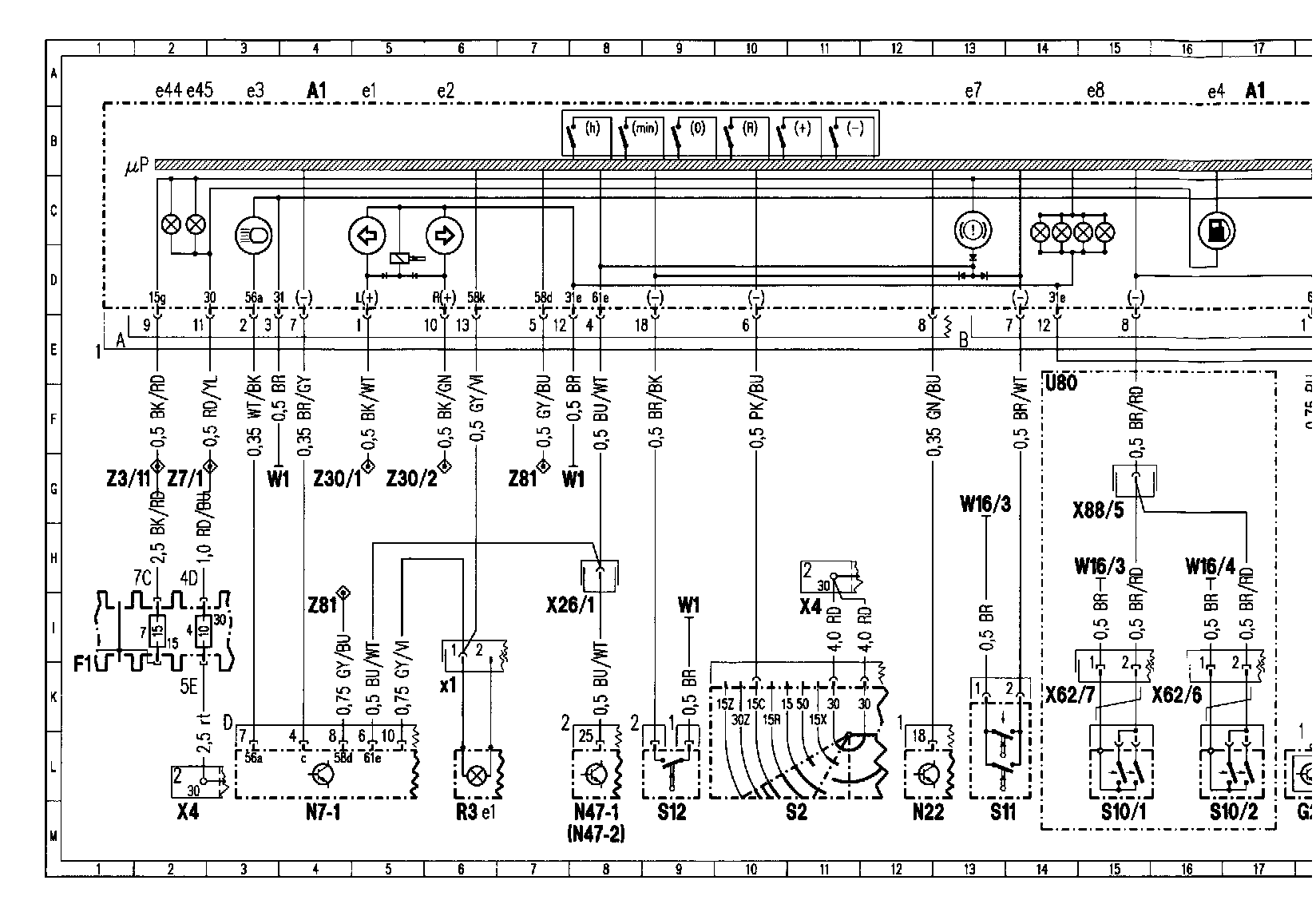

�7�X!s�XWiring Diagram for Instrument Cluster/Display Instruments/Warning Devices:
Component Grid Location

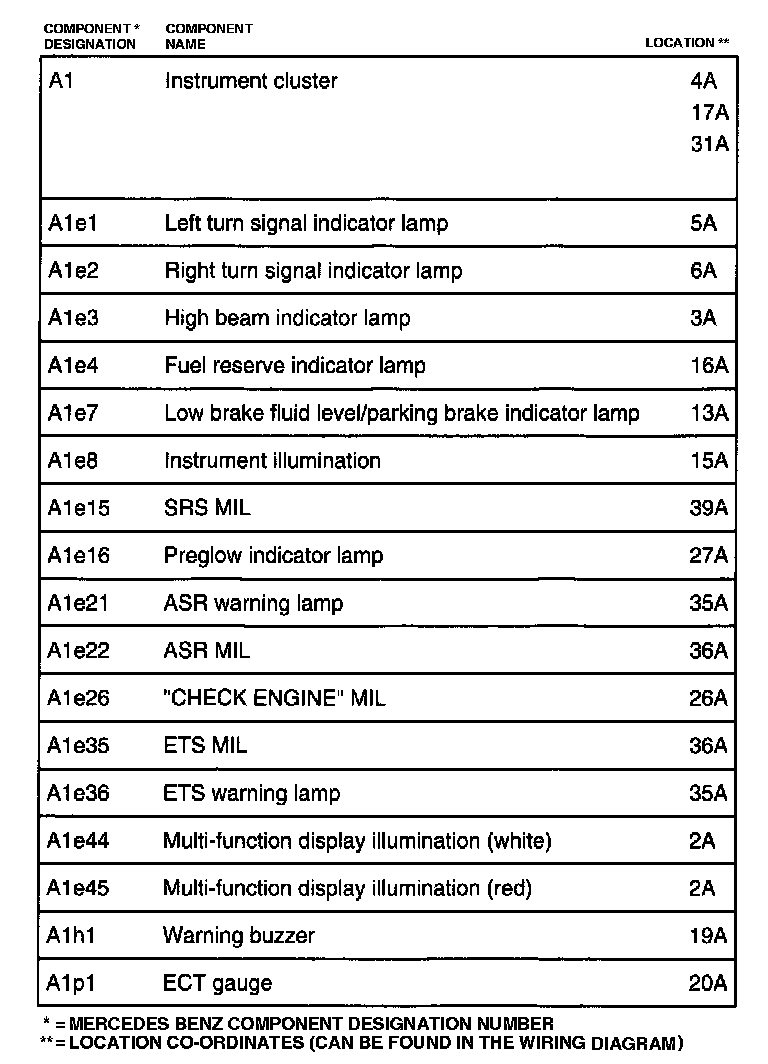

A1 - A1p1:

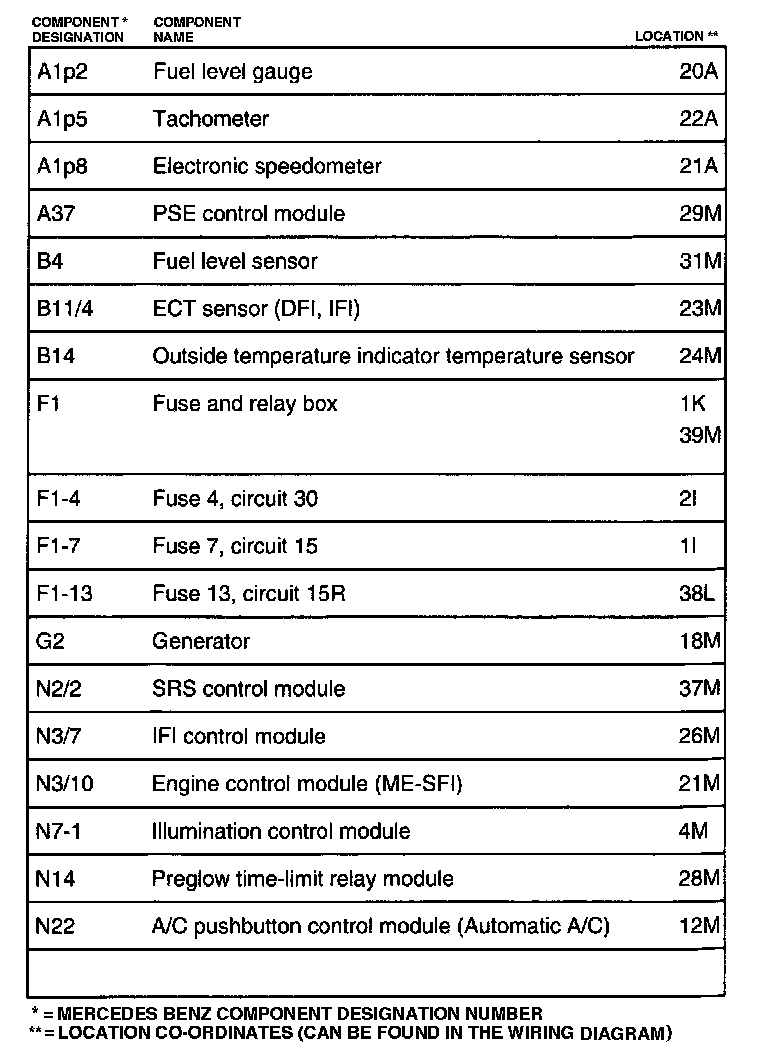

A1p2 - N22:

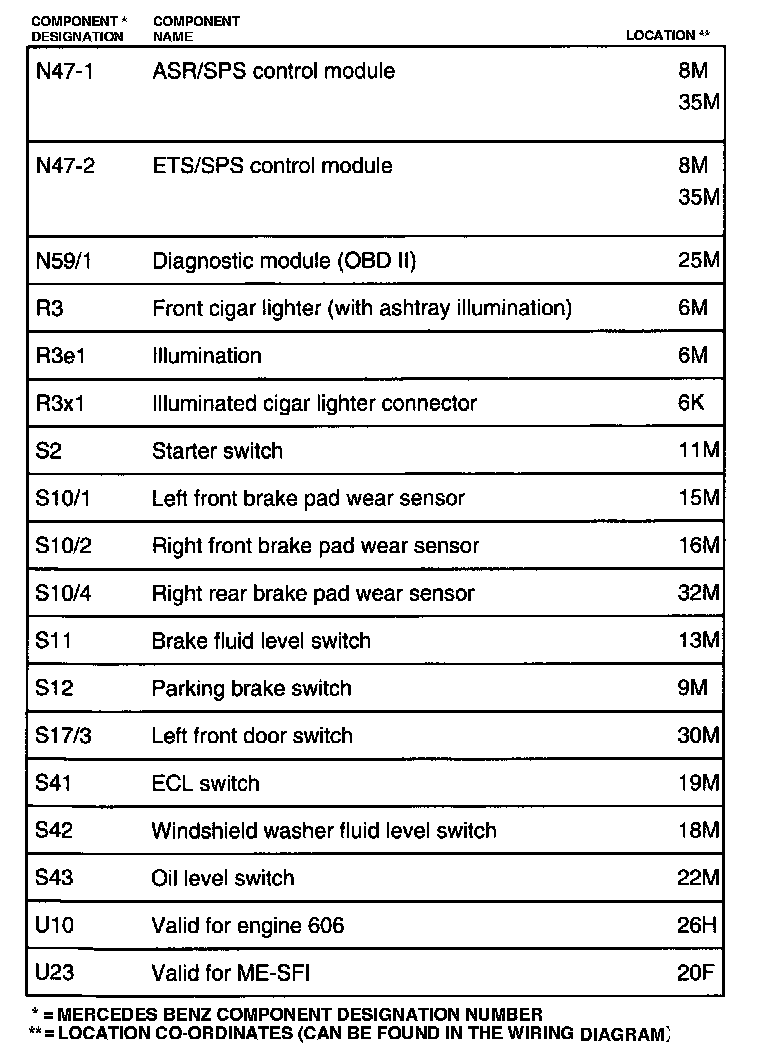

N47-1 - U23:

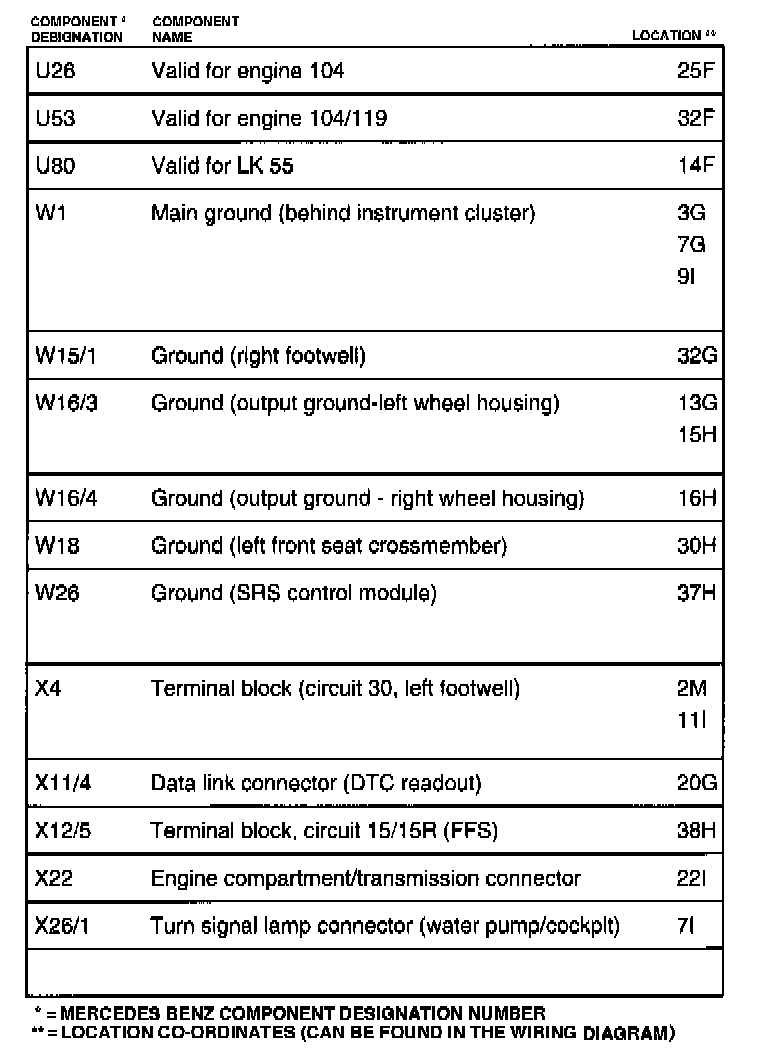

U26 - X26/1:
X62/2 - Z92:
