Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1997
>>
S 420 (140.043) V8-4.2L (119.981)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Engine Components
>>

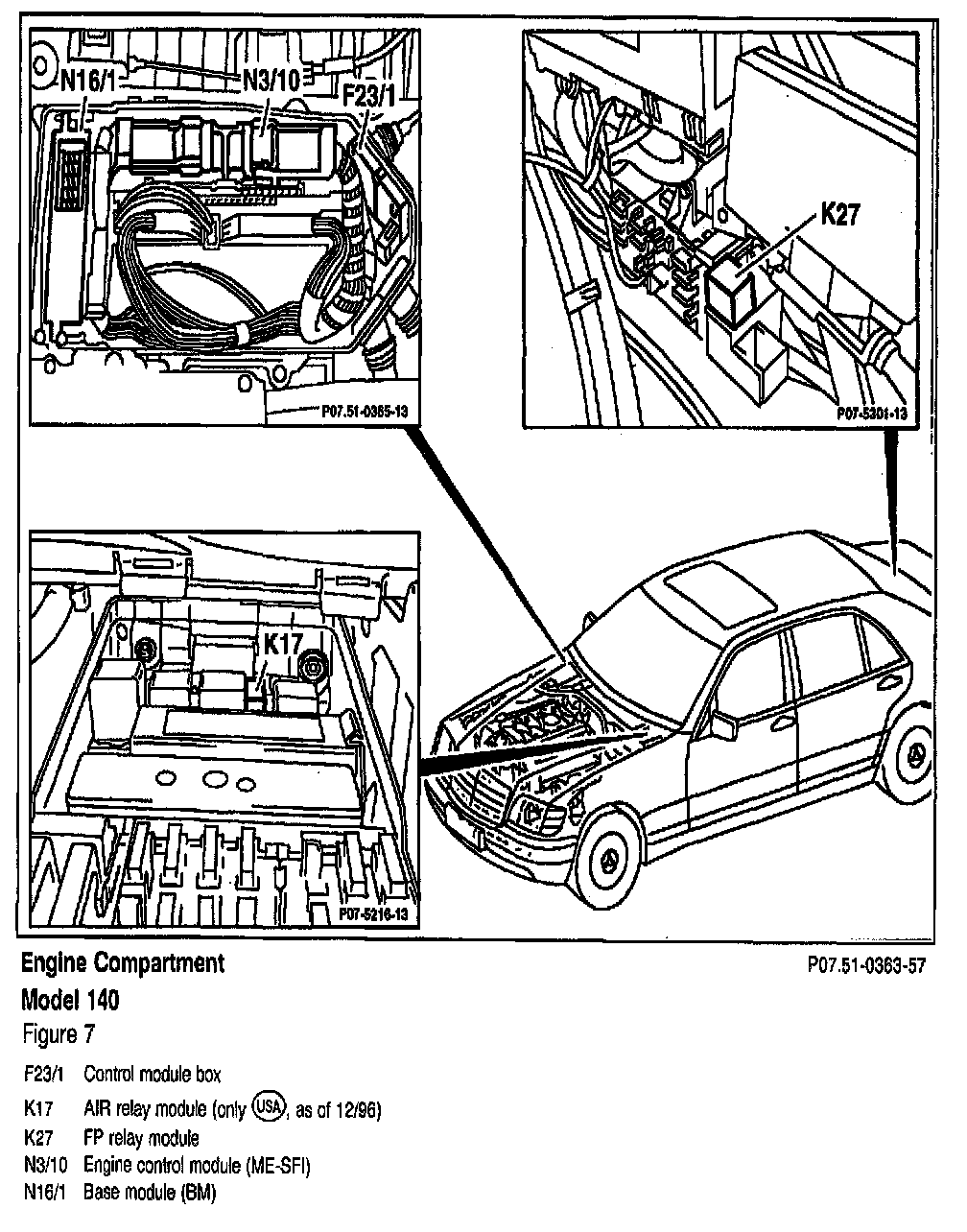

Figure 7
Figure 7
