Vehicles With Electronic Stability Program (ESP)

Connector Assignment:

Connector Assignment:

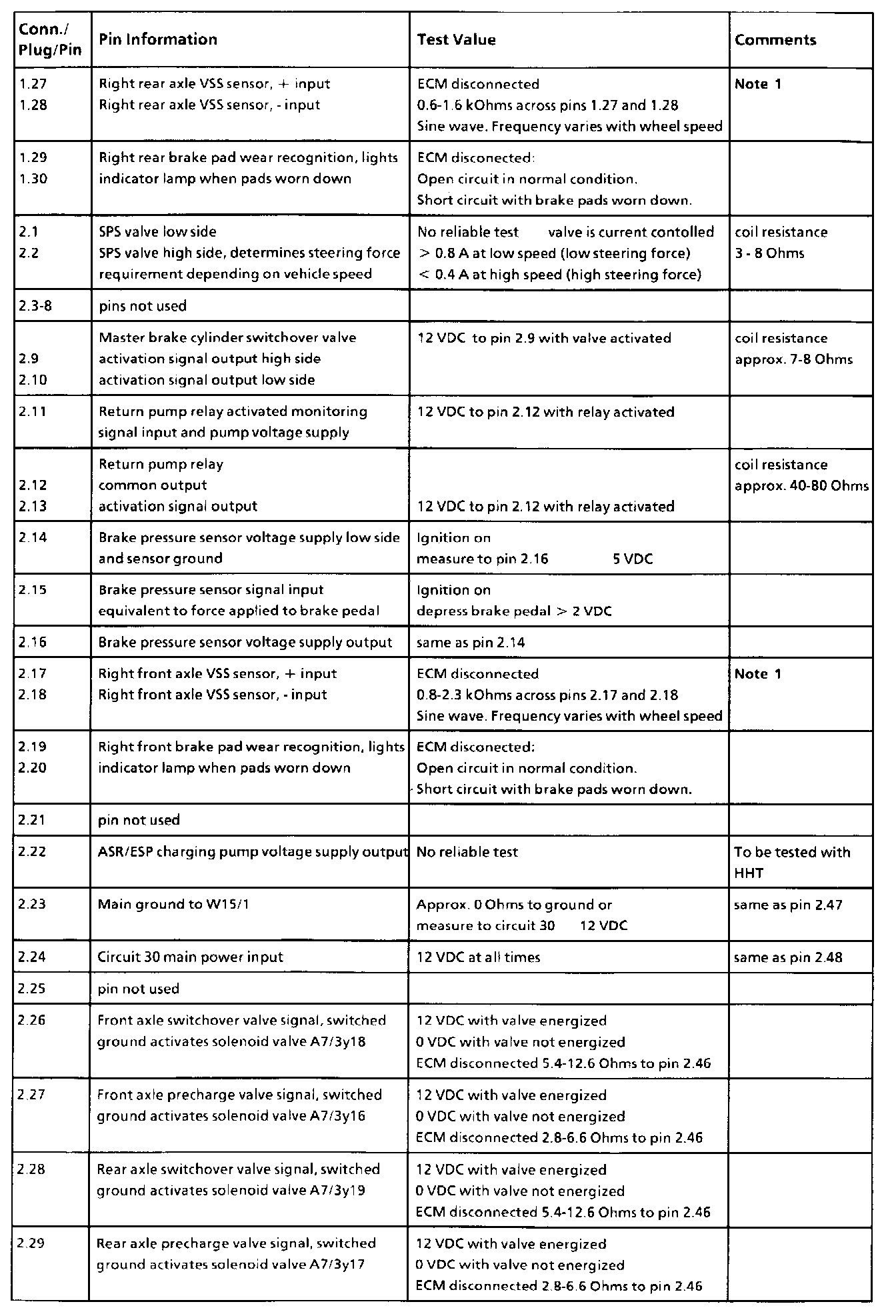

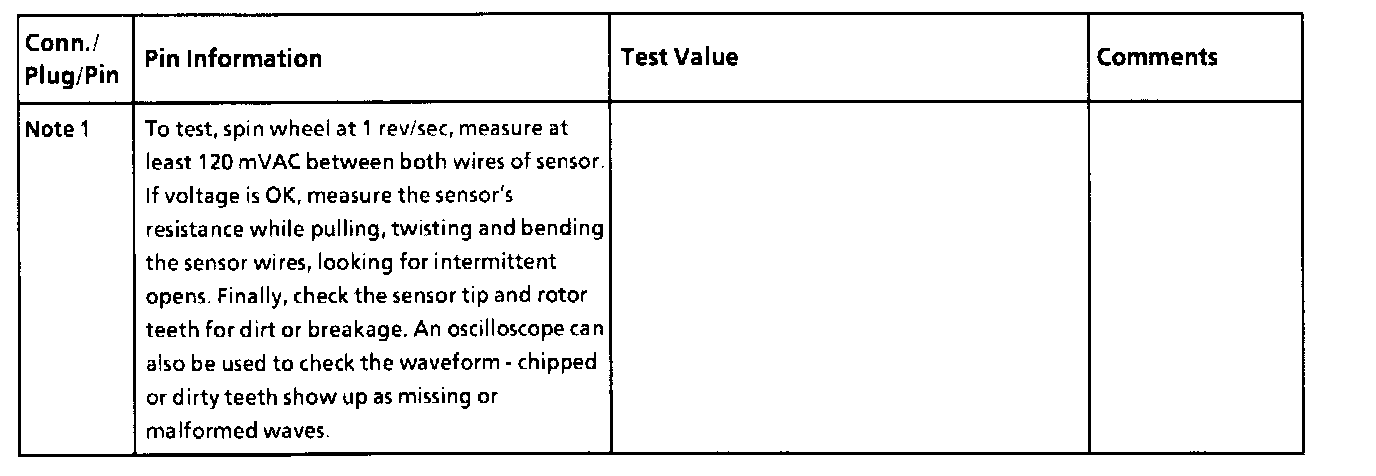

Pin Information, Part 1:

Pin Information, Part 2:

Pin Information, Part 3:

Pin Information, Part 4:

All values measured to ground unless otherwise noted
