Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1997
>>
S 600 Coupe (140.076) V12-6.0L (120.982)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>

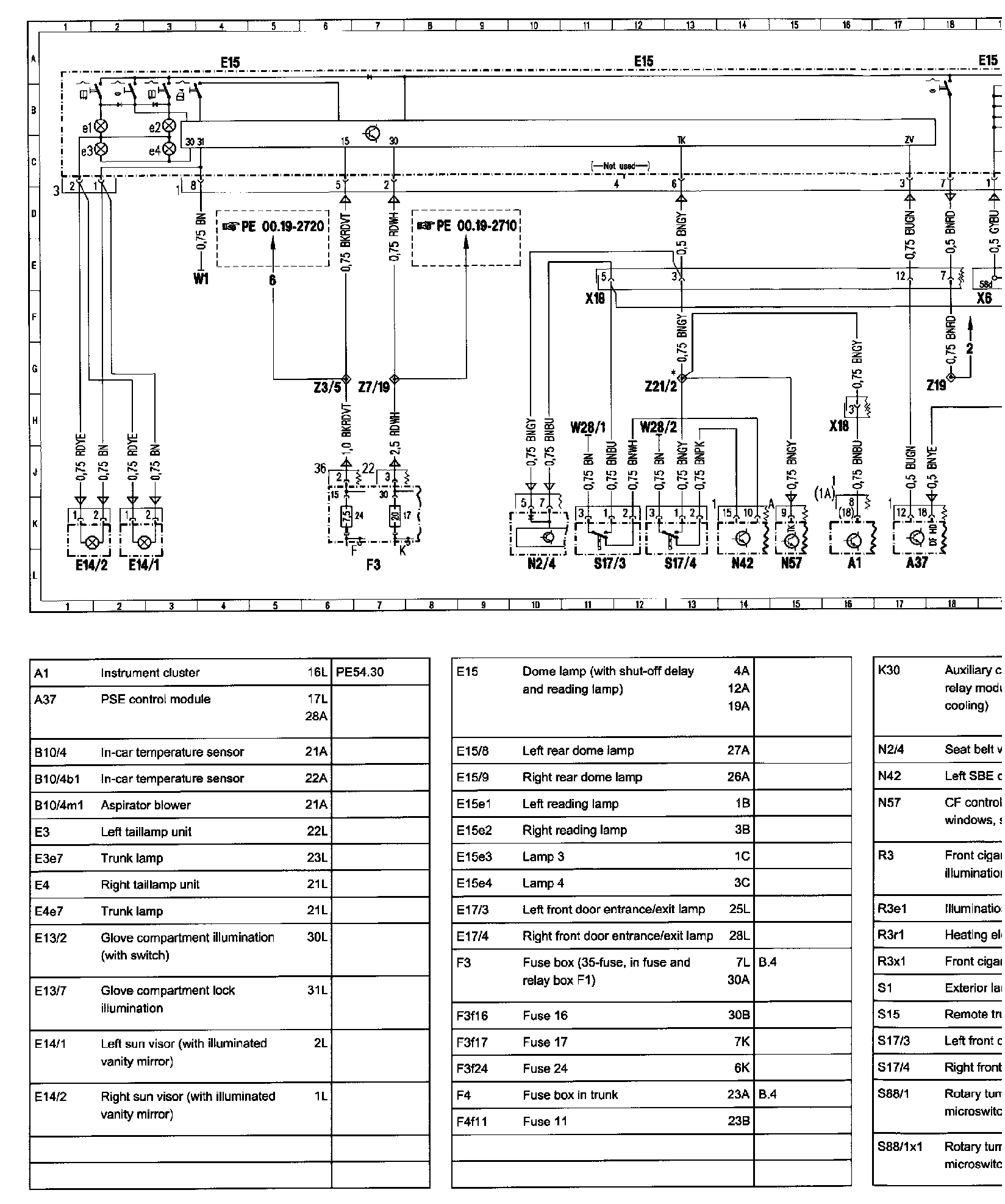

Interior Lights PE82.20-U-2000XE
Interior Lights PE82.20-U-2000XE
[�9Z� :ZPE82.20-U-2000-XE - Coupe - With Non Variable Instrument Illumination:
