Cellular Phone
Cellular Phone

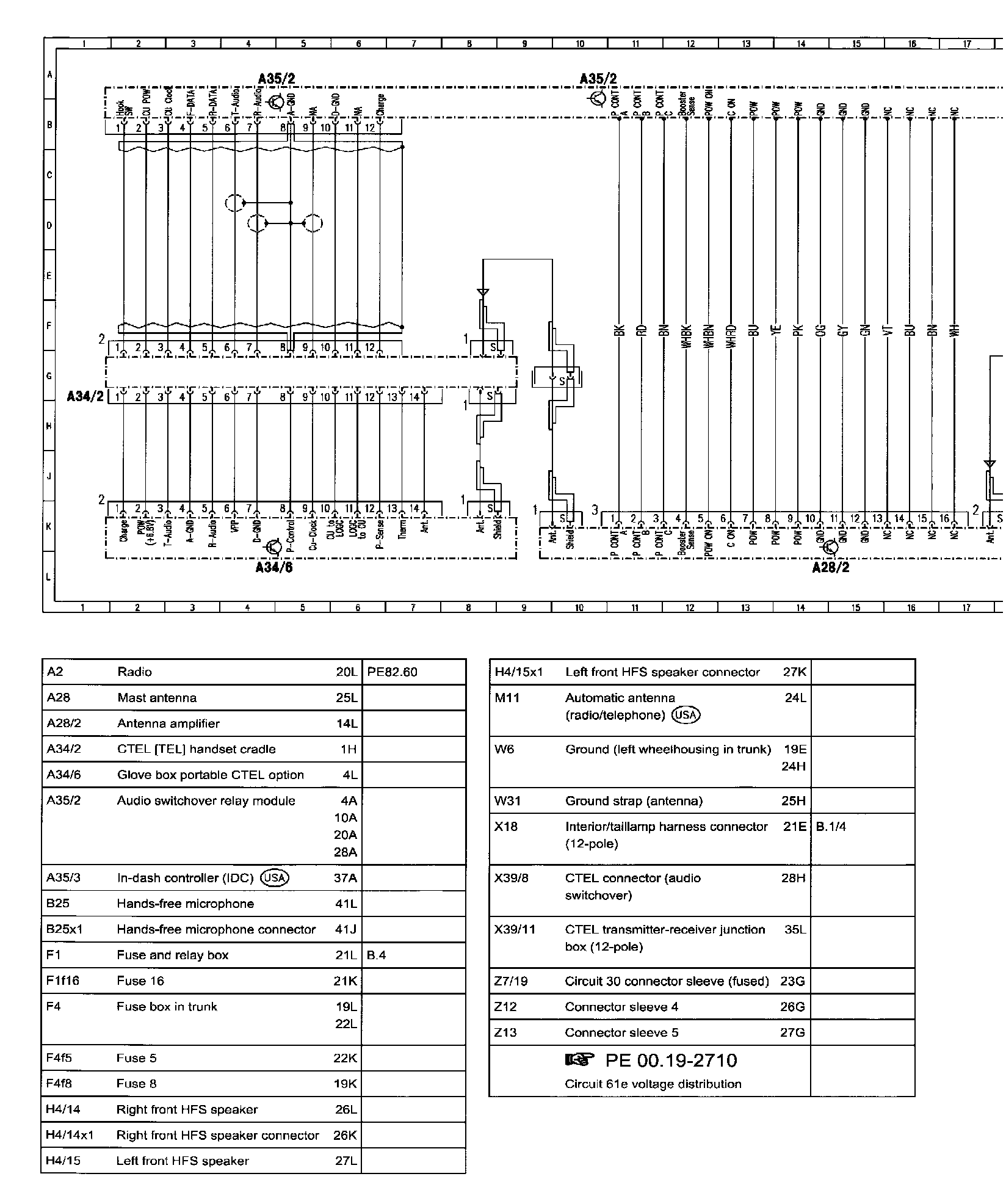

Wiring Diagram
�o�8"��8PE82.70-U-2000YD:

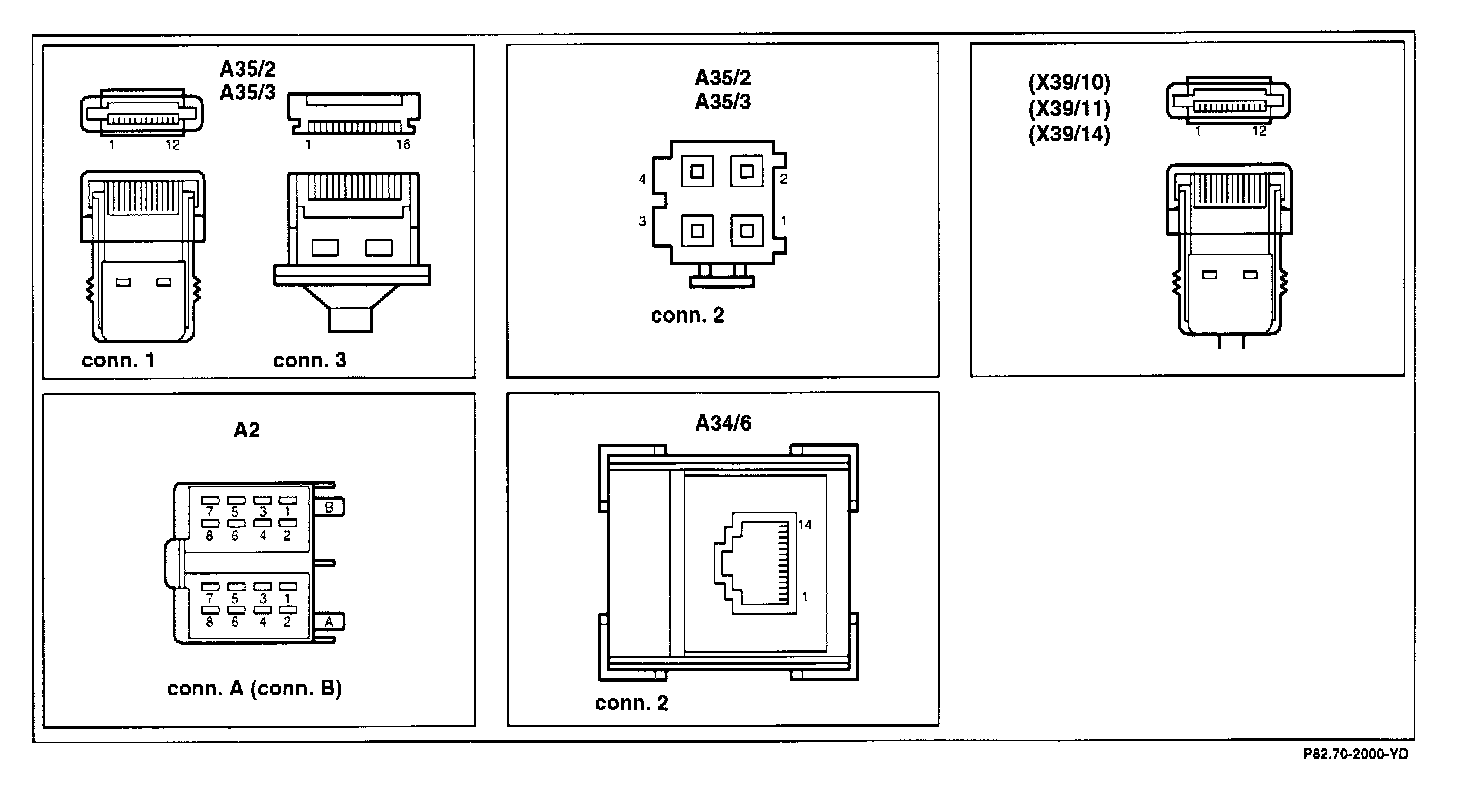

Connector Assignment:

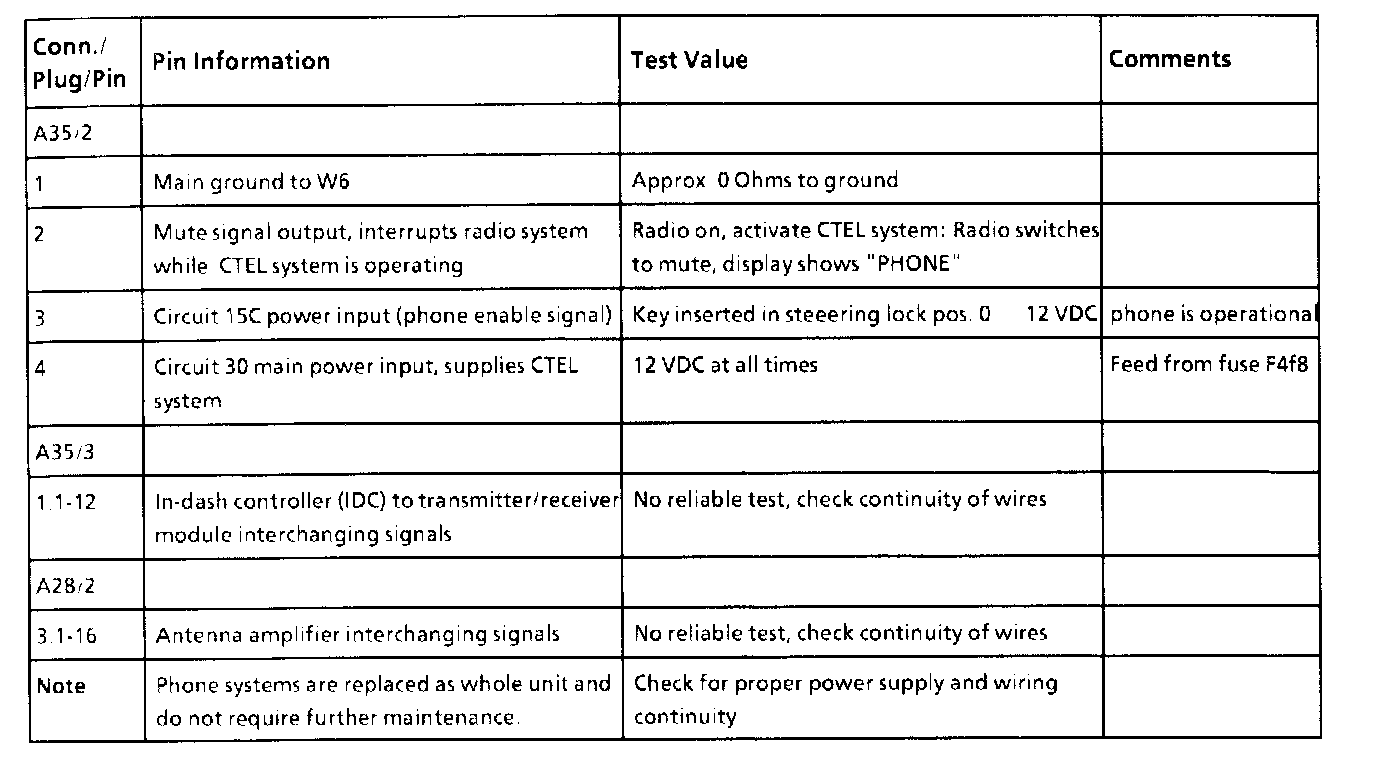

Pin Information:
All values measure to ground unless otherwise noted.
