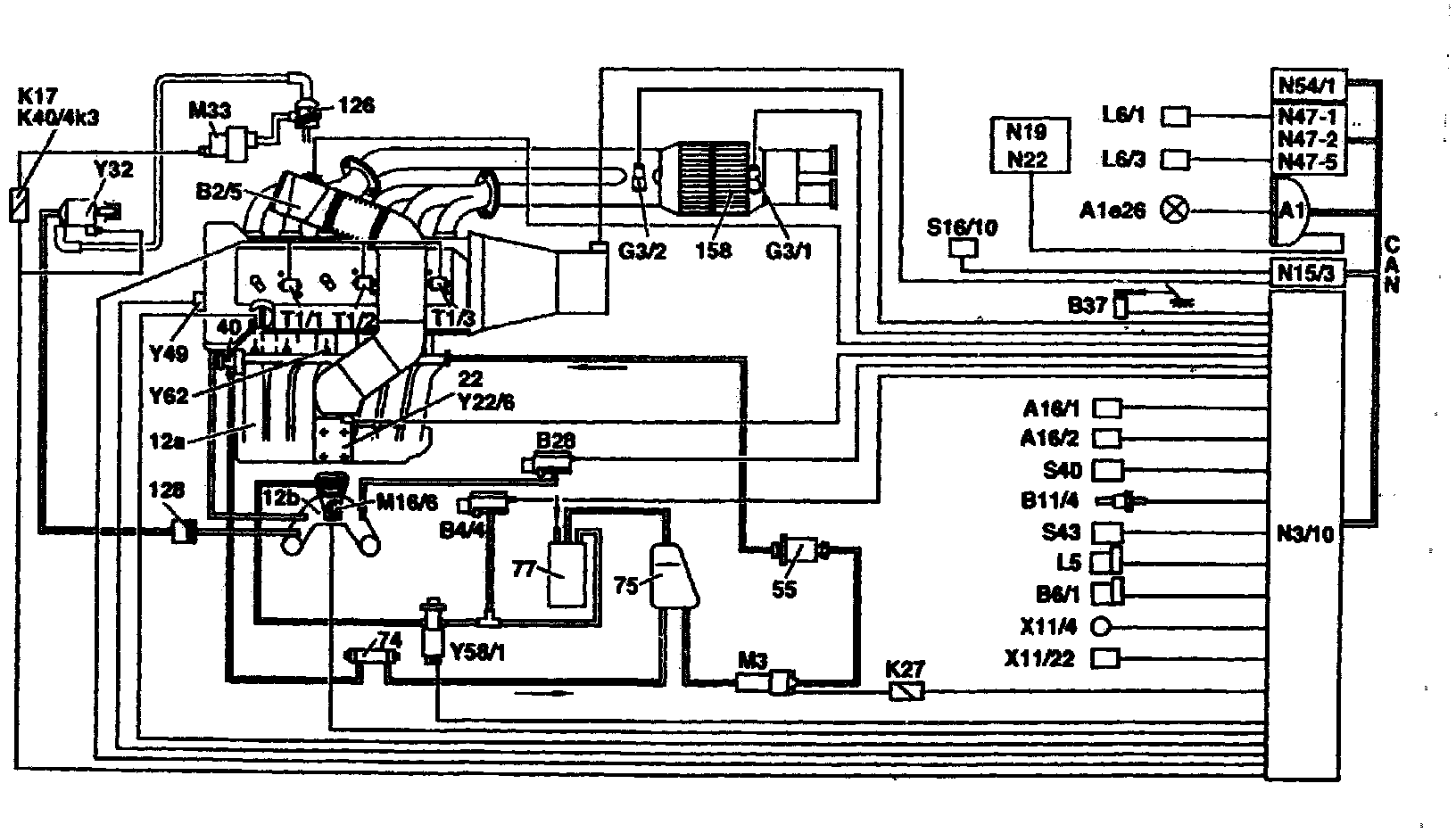

Function Diagrams

Engine 104, Chassis 129, 202:

12a Top part of intake manifold
12b Bottom part of intake manifold
22 Resonance flap
40 Diaphragm pressure regulator
55 Fuel filter
74 Fuel cooler
75 Fuel tank
77 Activated charcoal filter
126 Secondary air injection shutoff valve (combination valve: check valve integrated)
128 Check valve (vacuum)
158 Catalytic converter
A1 Instrument cluster
A1e26 CHECK ENGINE malfunction indicator lamp
A16/1 Left knock sensor 1
A16/2 Right knock sensor 2
B2/5 Hot film mass air flow sensor (intake air temperature sensor integrated)
B4/4 Purge monitor pressure sensor
B6/1 Camshaft Hall sensor
B11/4 Coolant temperature sensor
B28 Pressure sensor
B37 Pedal value sensor
G3/1 O2 sensor downstream of TWC
G3/2 O2 sensor upstream of TWC
K17 Secondary air injection relay, model 129
K27 Fuel pump relay
K40/4k3 Secondary air injection relay, model 202 (integrated in fuse and relay module)
L5 Crankshaft position sensor
L6/1 Front left rpm sensor
L6/3 Rear left rpm sensor
M3 Fuel pump
M16/6 Throttle valve actuator
M33 Electric air pump
N3/10 ME-SFI control module
N15/3 ETC (electronic transmission control) control module
N19 Air conditioning push button control module
N22 Automatic air conditioning (automatic A/C) push button control module
N47-1 ASR/SPS control module
N47-2 ETS/SPS control module
N47-5 ESP/SPS control module
N54/1 Infrared drive authorization system control module
S16/10 Gear recognition switch
S40 Cruise control switch
V Decelerate/Set
B Accelerate/Set
SP Resume
A Off
S43 Oil level switch
T1/1 Twin-spark ignition coil 1, cylinders 2 and 5
T1/2 Twin-spark ignition coil 2, cylinders 3 and 4
T1/3 Twin-spark ignition coil 3, cylinders 1 and 6
X11/4 Data link connector, 39-pin
X11/22 Data link connector II
Y22/6 Resonance intake manifold switch over valve
Y32 Air pump switchover valve
Y49 Adjustable camshaft timing solenoid
Y58/1 Purge control valve
Y62 Fuel injection valves
CAN Data bus (Controller Area Network)
