Mercedes Benz
>>
1997
>>
SL 320 (129.063) L6-3.2L (104.991)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

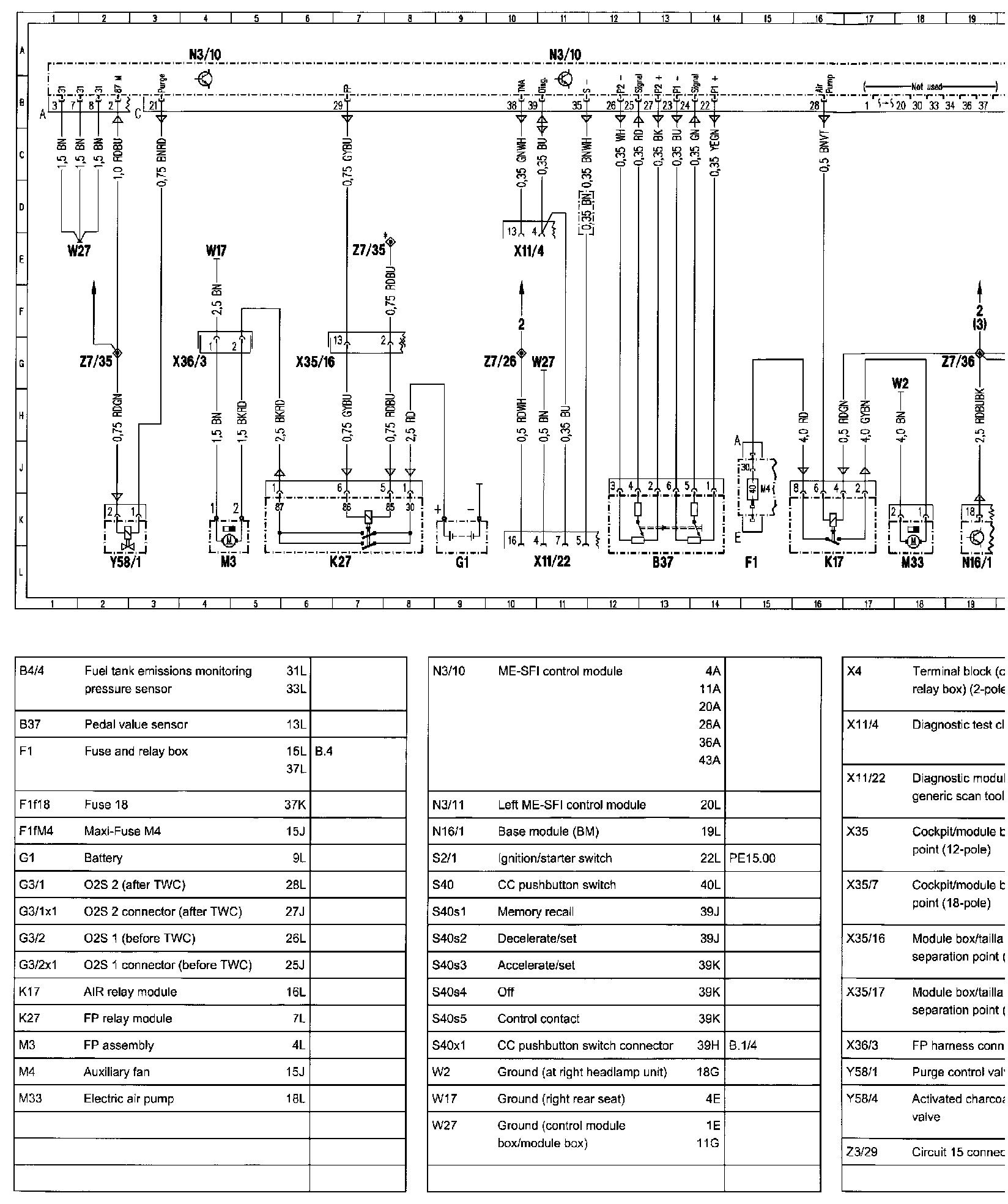

ME-SFI Fuel Injection/Ignition System PE07.61-U-2000YB (Interior)
ME-SFI Fuel Injection/Ignition System PE07.61-U-2000YB (Interior)
ߋ� j�� PE07.61-U-2000YB - ME-SFI Fuel Injection and Ignition System:
