Intake Manifold

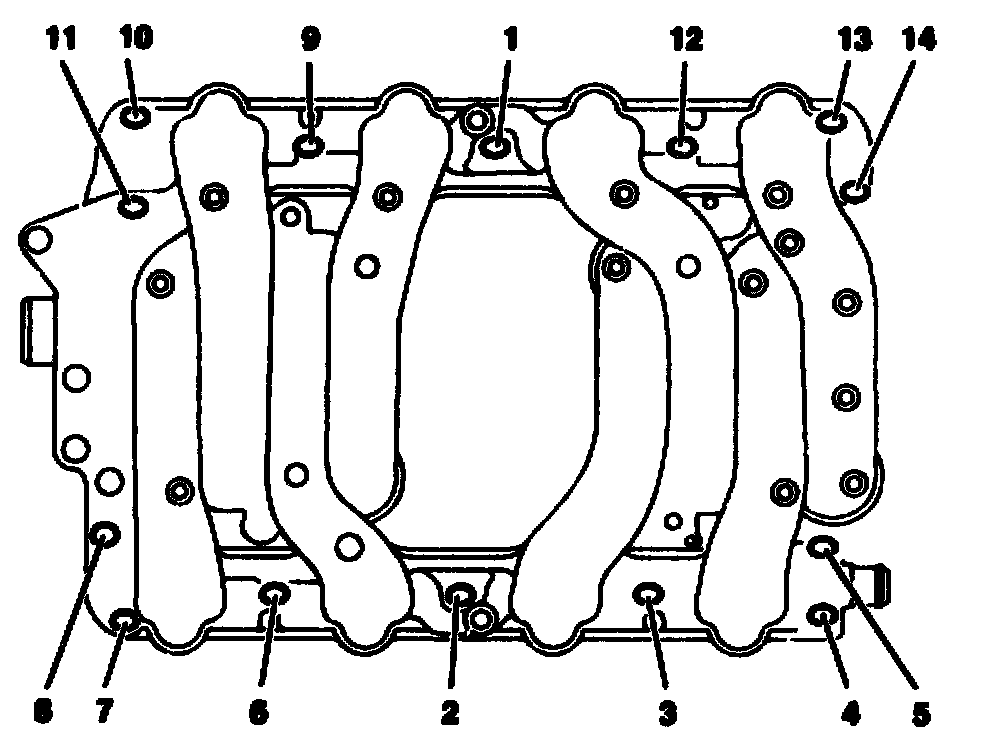

Tightening diagram for attaching intake manifold
Use the above illustration when tightening intake manifold to engine.
Bolts of intake manifold to cylinder head 25-30 Nm
Bolts of top part of intake manifold to bottom part 25 Nm
Tightening diagram for attaching intake manifold
Use the above illustration when tightening intake manifold to engine.
Bolts of intake manifold to cylinder head 25-30 Nm
Bolts of top part of intake manifold to bottom part 25 Nm
