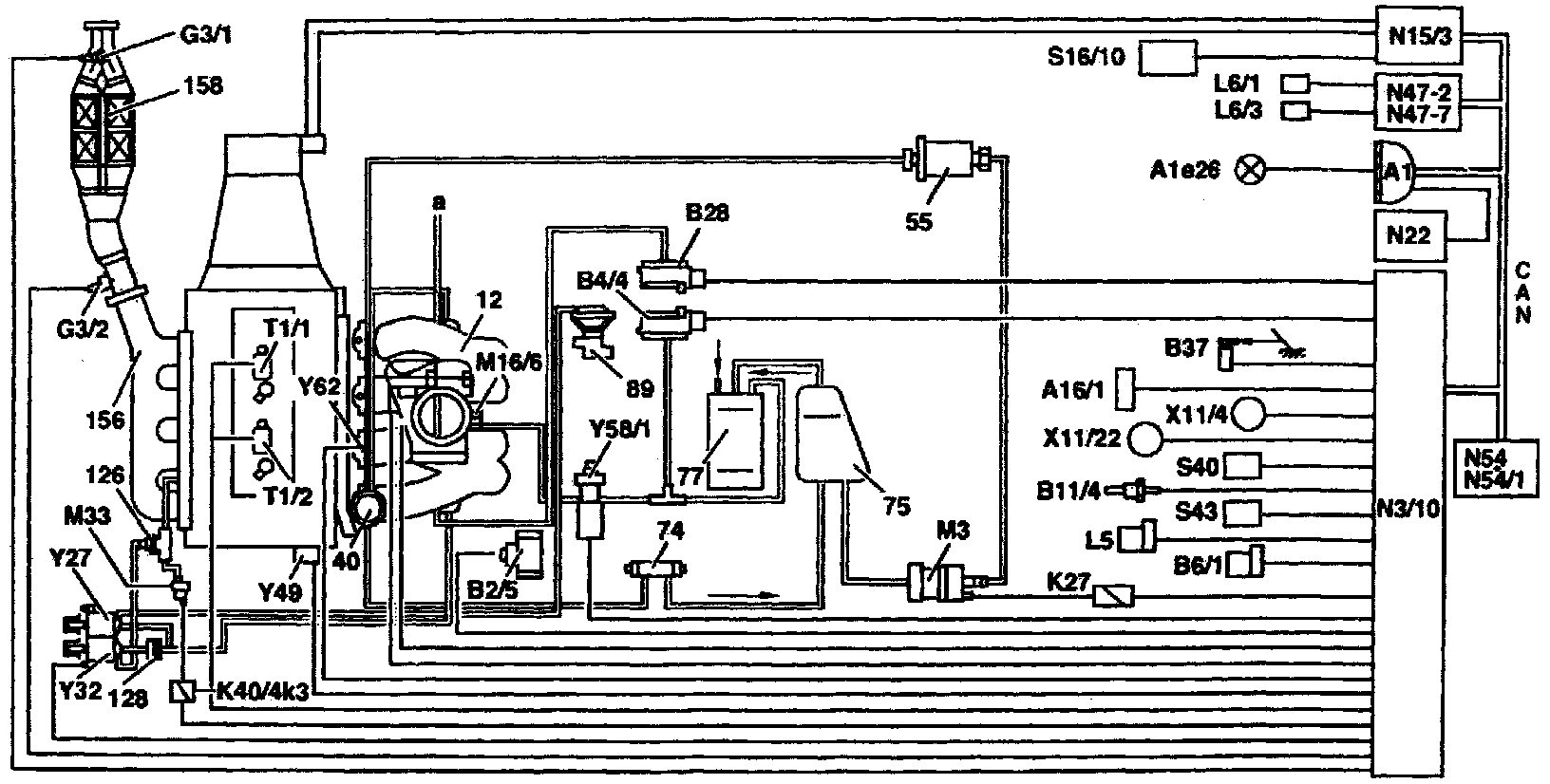

Function Diagrams

Engine 111, Chassis 202:

12 Intake manifold
40 Diaphragm pressure regulator
55 Fuel filter
74 Fuel cooler
75 Fuel tank
77 Activated charcoal filter
89 EGR valve
126 Secondary air injection shutoff valve (combination valve: check valve integrated)
128 Check valve (vacuum)
156 Exhaust manifold
158 Catalytic converter
a Other components
A1 Instrument cluster
A1e26 CHECK ENGINE malfunction indicator lamp
A16/1 Knock sensor
B2/5 Hot film mass air flow sensor (intake air temperature sensor integrated)
B4/4 Purge monitoring pressure sensor
B6/1 Camshaft Hall sensor
B11/4 Coolant temperature sensor
B28 Pressure sensor
B37 Pedal value sensor
G3/1 O2 sensor downstream of TWC
G3/2 O2 sensor upstream of TWC (in exhaust pipe)
K27 Fuel pump relay
K40/4k3 Secondary air injection relay (integrated in fuse and relay module)
L5 Crankshaft position sensor
L6/1 Front left rpm sensor
L6/3 Rear left rpm sensor
M3 Fuel pump
M16/6 Throttle valve actuator
M33 Electric air pump
N3/10 ME-SFI control module
N15/3 ETC (electronic transmission control) control module
N22 Automatic air conditioning (automatic A/C) push button control module
N47-2 ETS/SPS control module
N47-7 ABS control module
N54/1 Infrared drive authorization system control module
N54 RCL (remote central locking) control module
S16/10 Gear recognition switch
S40 Cruise control switch
V Decelerate/Set
B Accelerate/Set
SP Resume
A Off
S43 Oil level switch
T1/1 Twin-spark ignition coil 1, cylinders 1 and 4
T1/2 Twin-spark ignition coil 2, cylinders 2 and 3
X11/4 Data link connector, 38-pin
X11/22 Data link connector OBD II
Y27 EGR switchover valve
Y32 Air pump switchover valve
Y49 Adjustable camshaft timing solenoid
Y58/1 Purge control valve
Y62 Fuel injection valves
CAN Data bus (Controller Area Network)
