ME-SFI Fuel Injection And Ignition System PE07.61-U-2000L

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000L
- Engine block wiring harness
- Up to 5/31/98

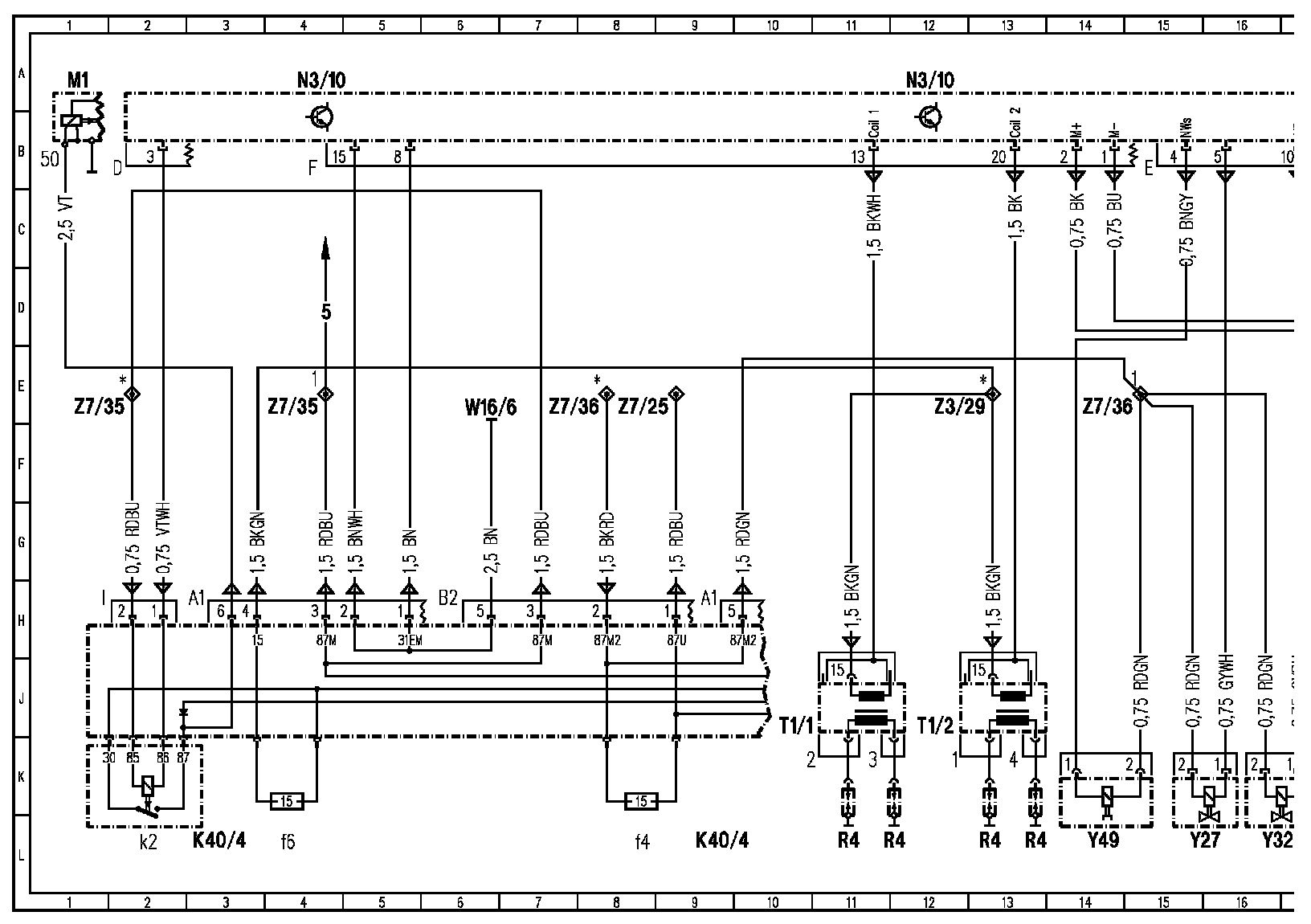

Wiring Diagram, Part 1:

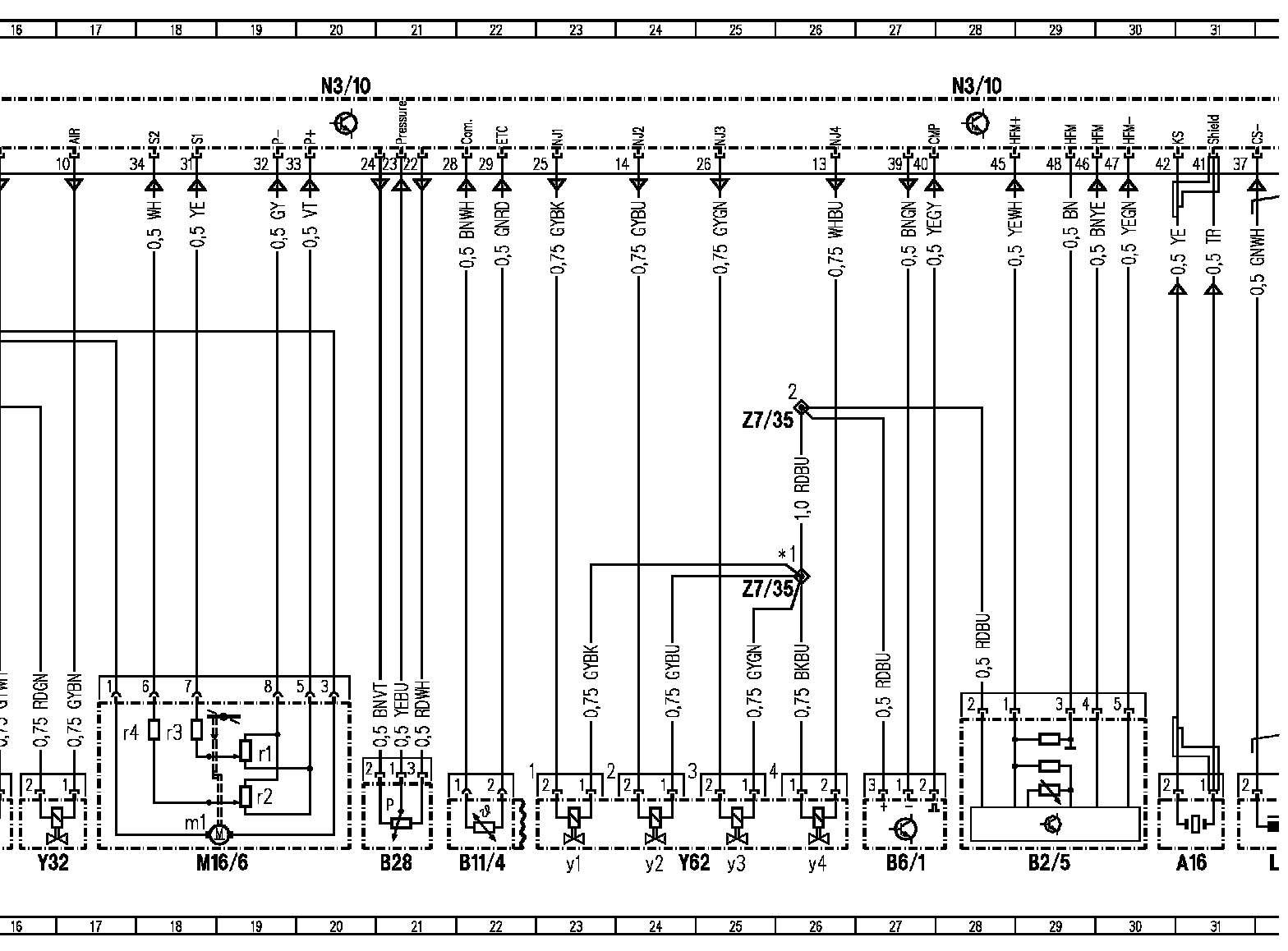

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Component Description/Coordinates, A16 To T1/2:

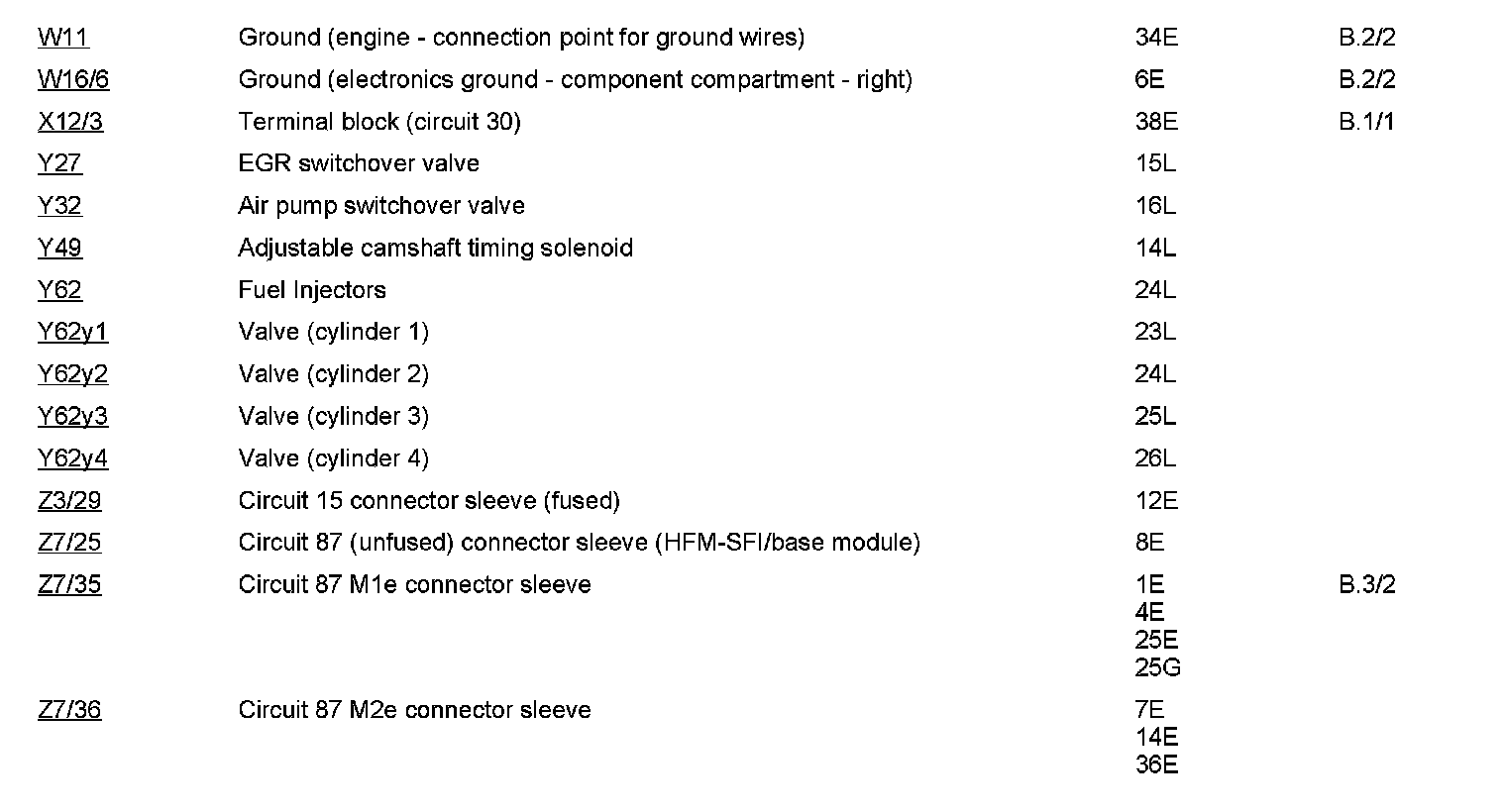

Component Description/Coordinates, W11 To Z7/36:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
