Airbag PE91.60-U-2000E

Airbag PE91.60-U-2000E
- with side airbag, emergency tensioning retractor and automatic child seat recognition (ACSR [AKSE])

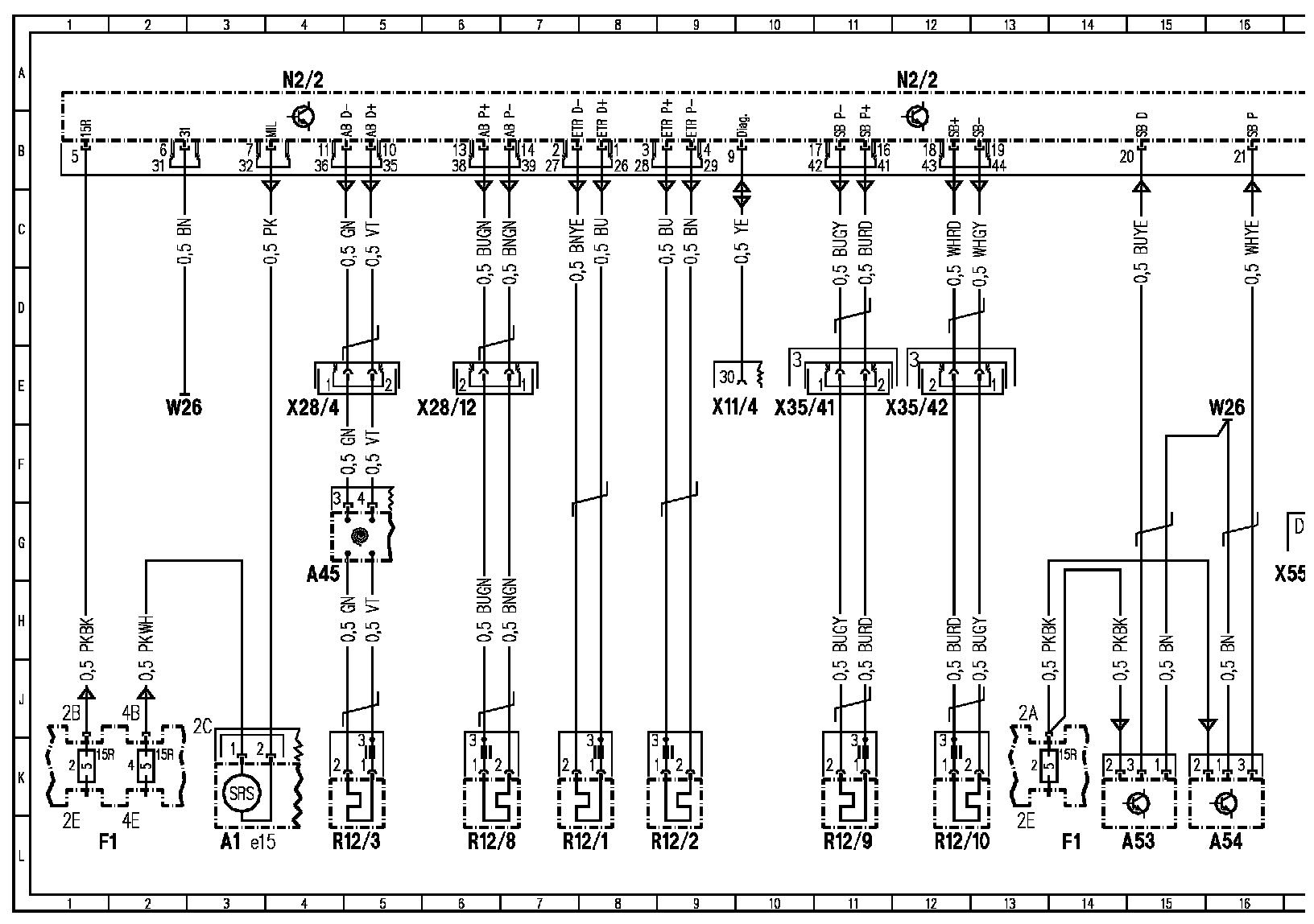

Wiring Diagram, Part 1:

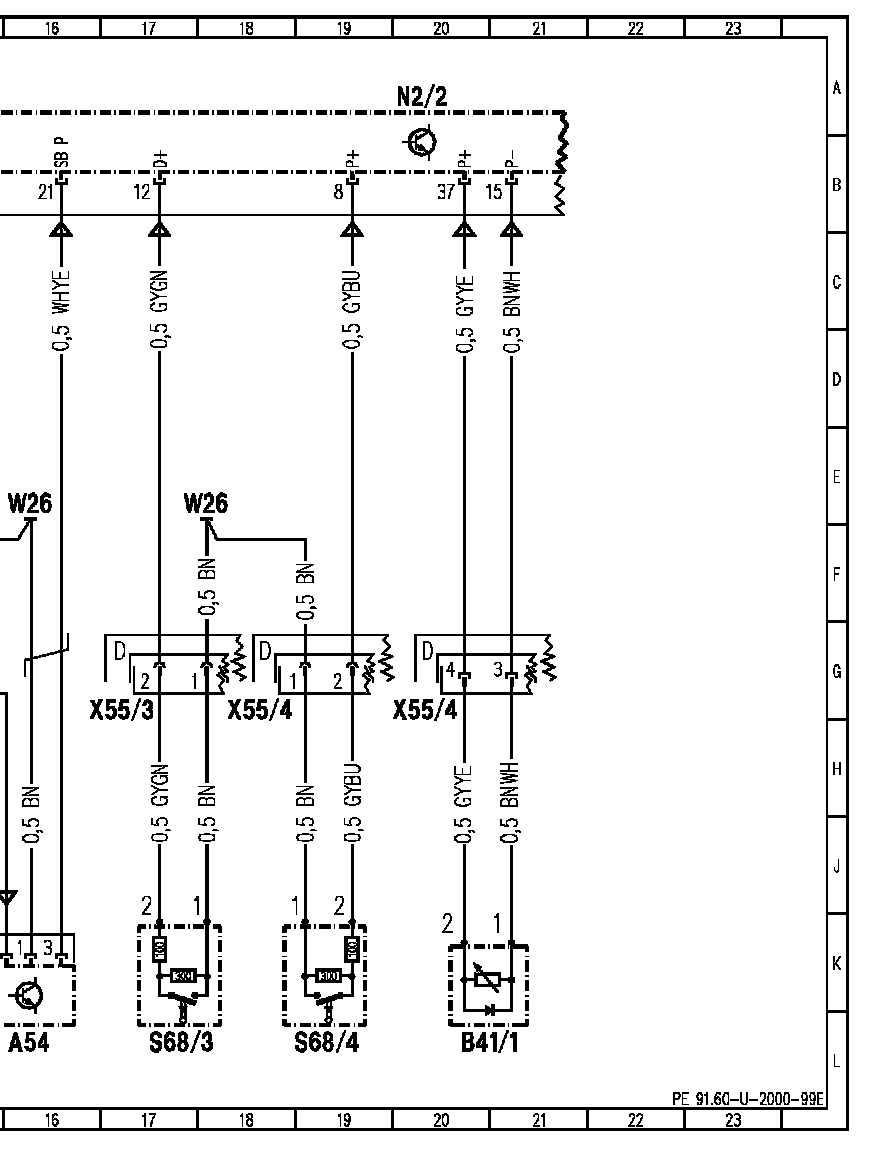

Wiring Diagram, Part 2:

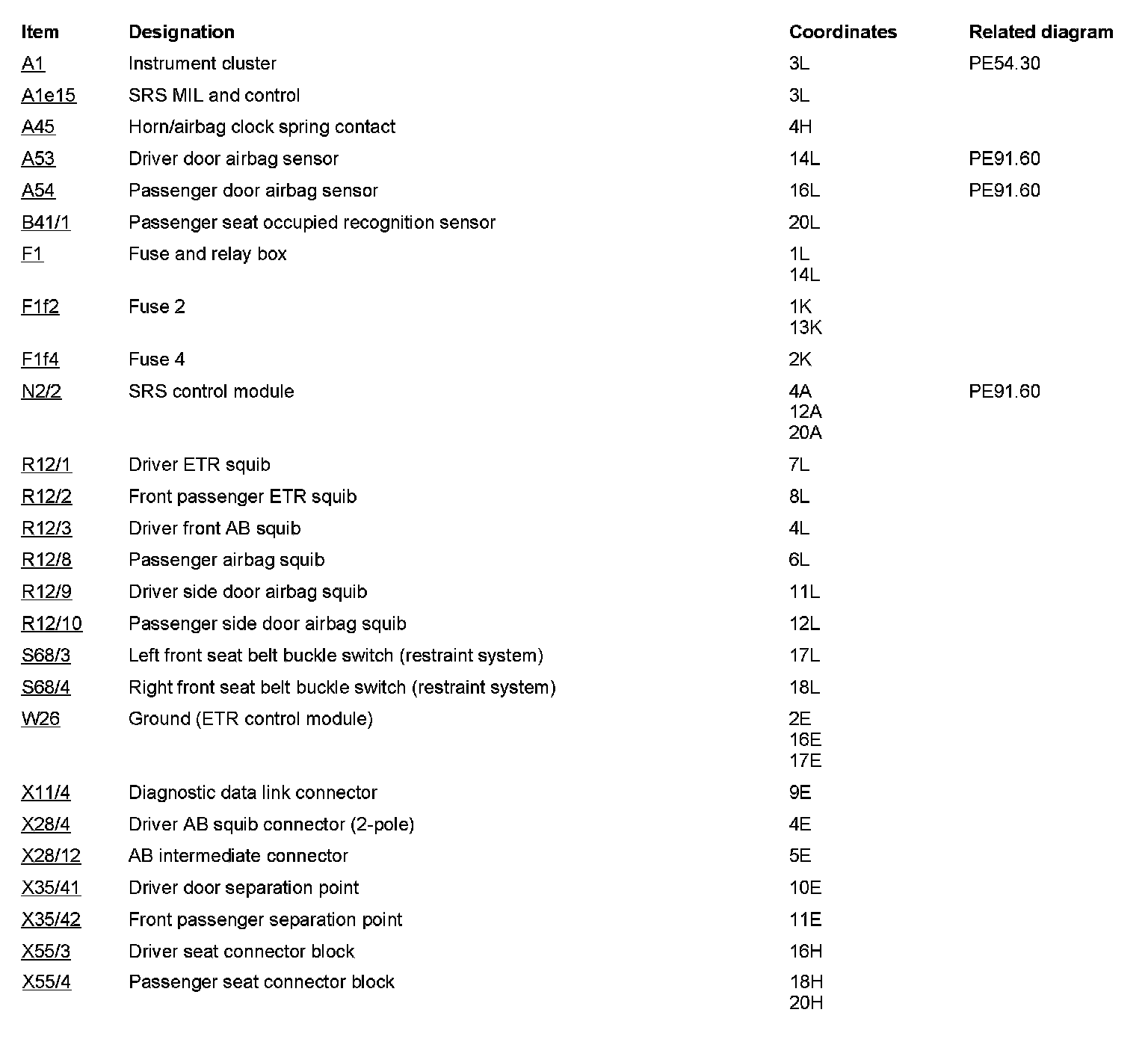

Component Description/Coordinates, A1 To X55/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
