ME-SFI Fuel Injection And Ignition System PE07.61-U-2000O

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000O
- Engine compartment / frame floor system wiring harness
- with CODE (440a) Cruise control

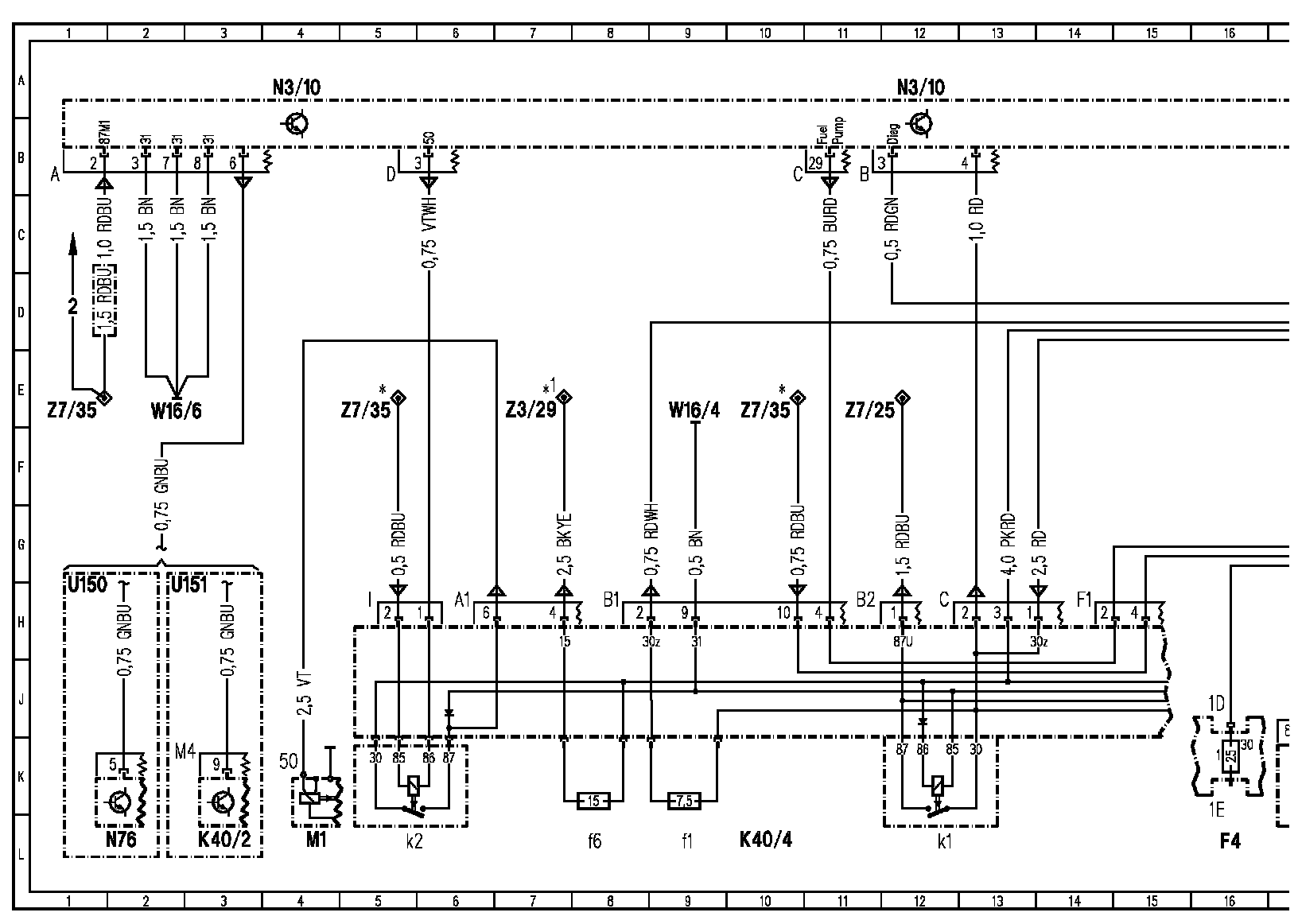

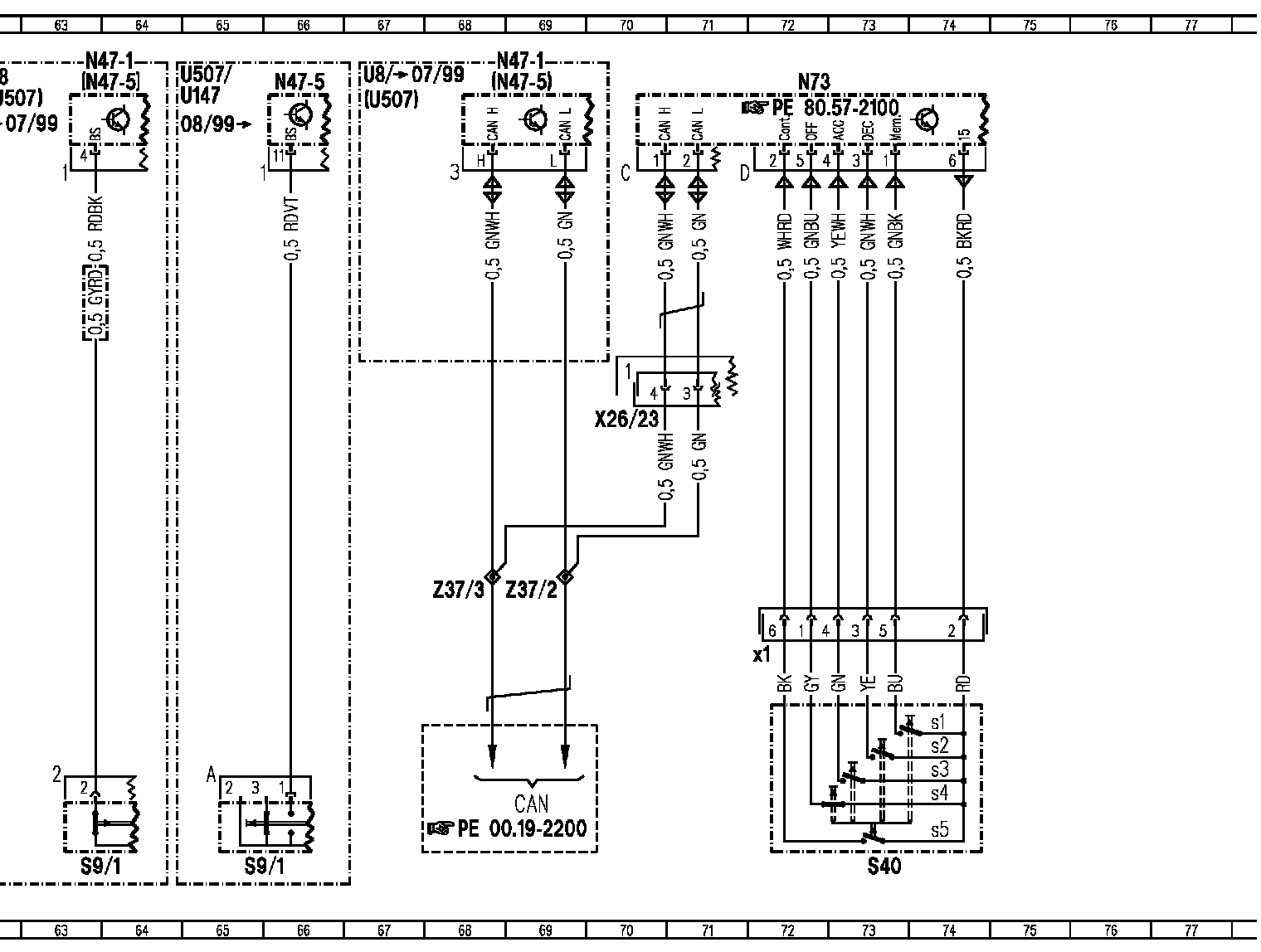

Wiring Diagram, Part 1:

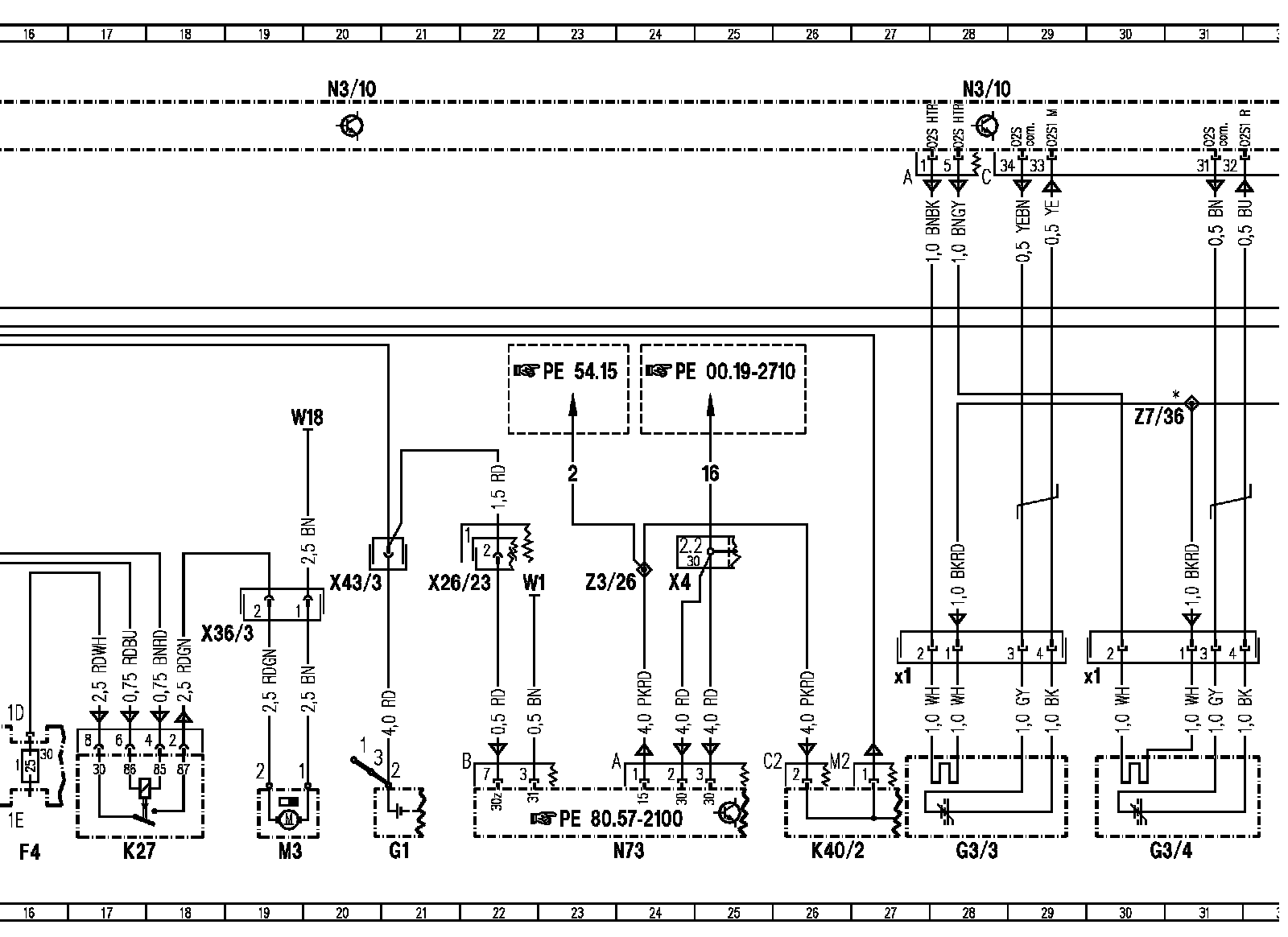

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

Component Description/Coordinates, B4/3 To N3/10:

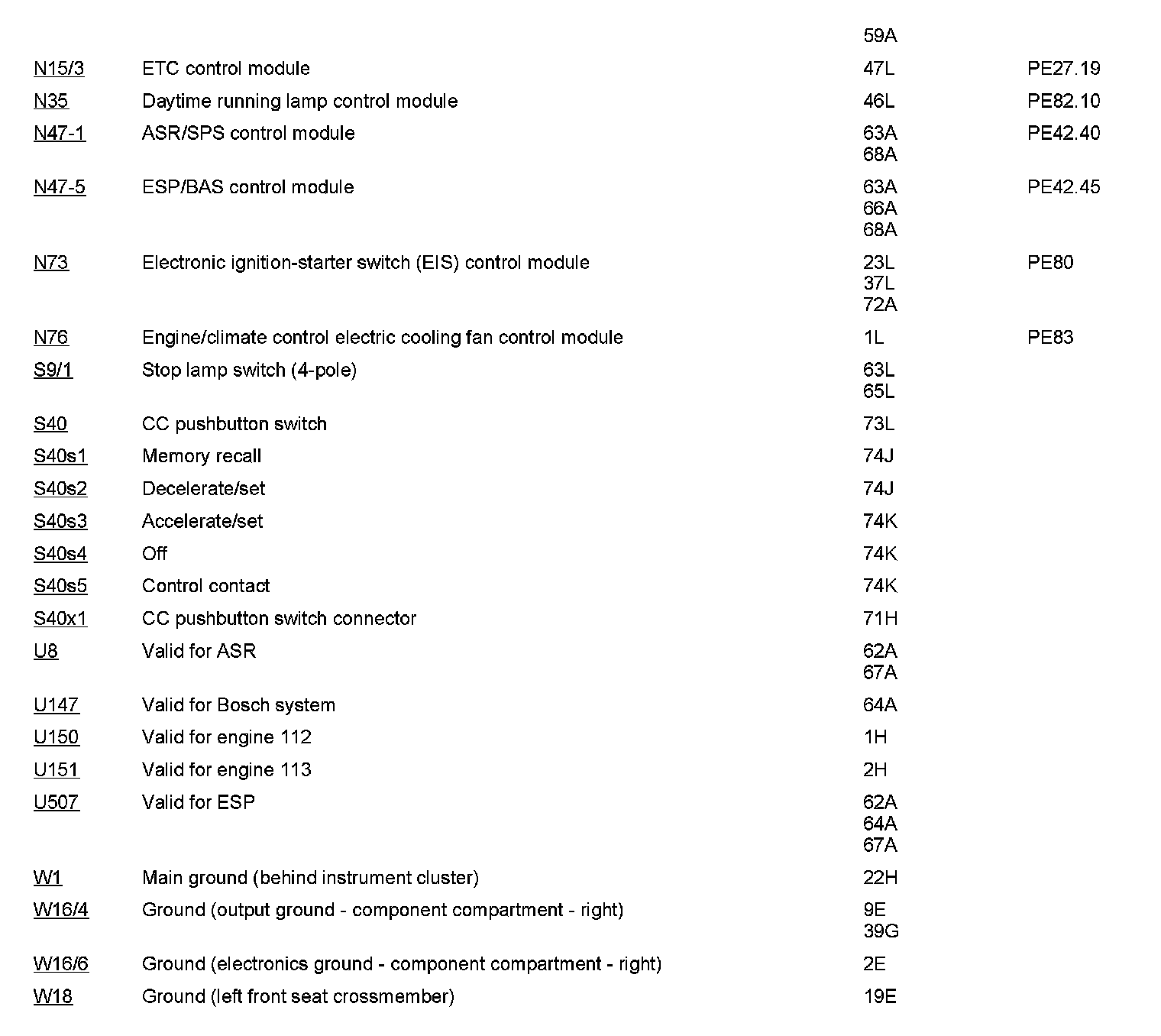

Component Description/Coordinates, N15/3 To W18:

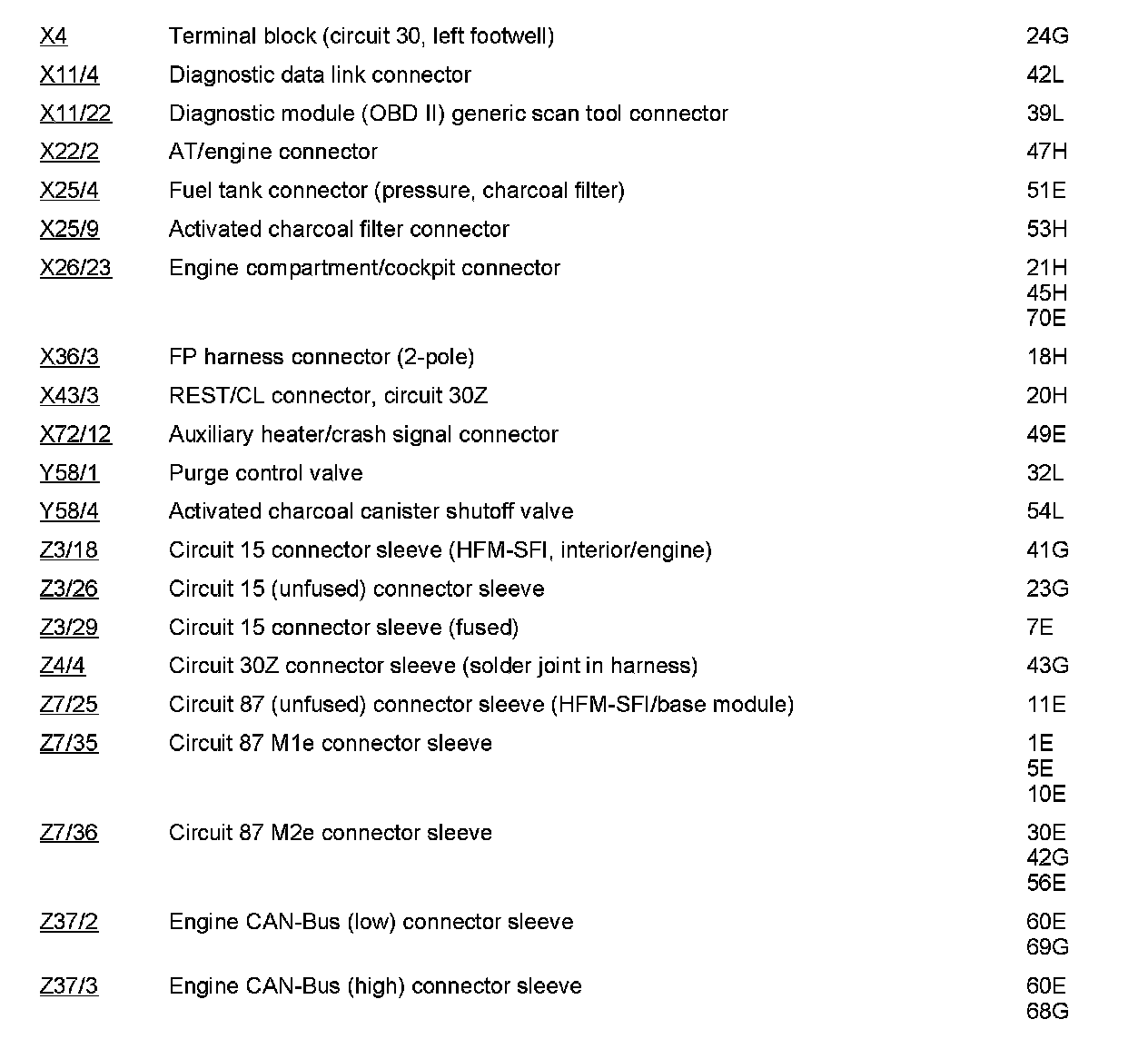

Component Description/Coordinates, X4 To Z37/3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
