ME-SFI Fuel Injection And Ignition System PE07.61-U-2000P

ME-SFI Fuel Injection And Ignition System PE07.61-U-2000P
- Engine block wiring harness
- with CODE (440a) Cruise control

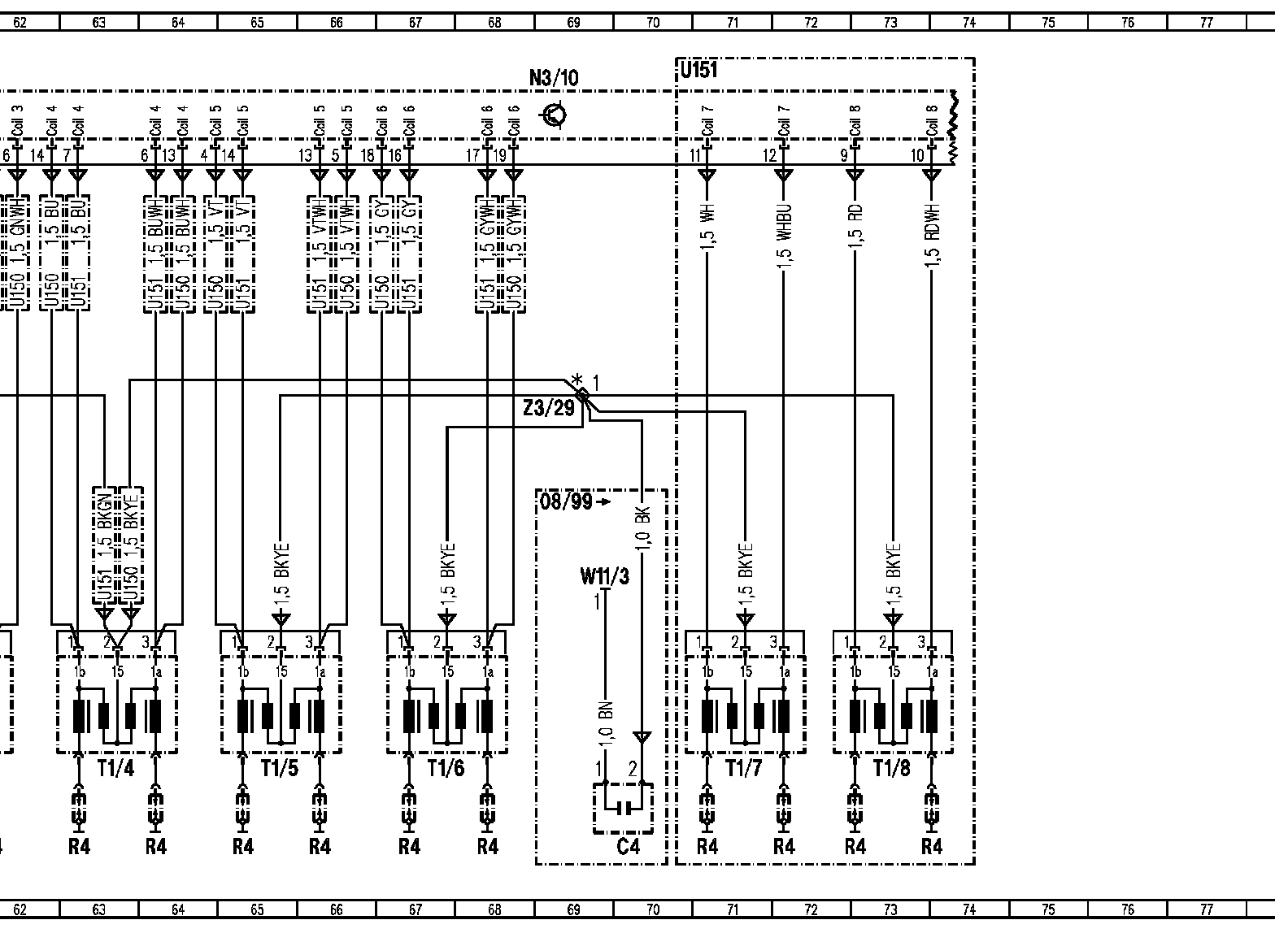

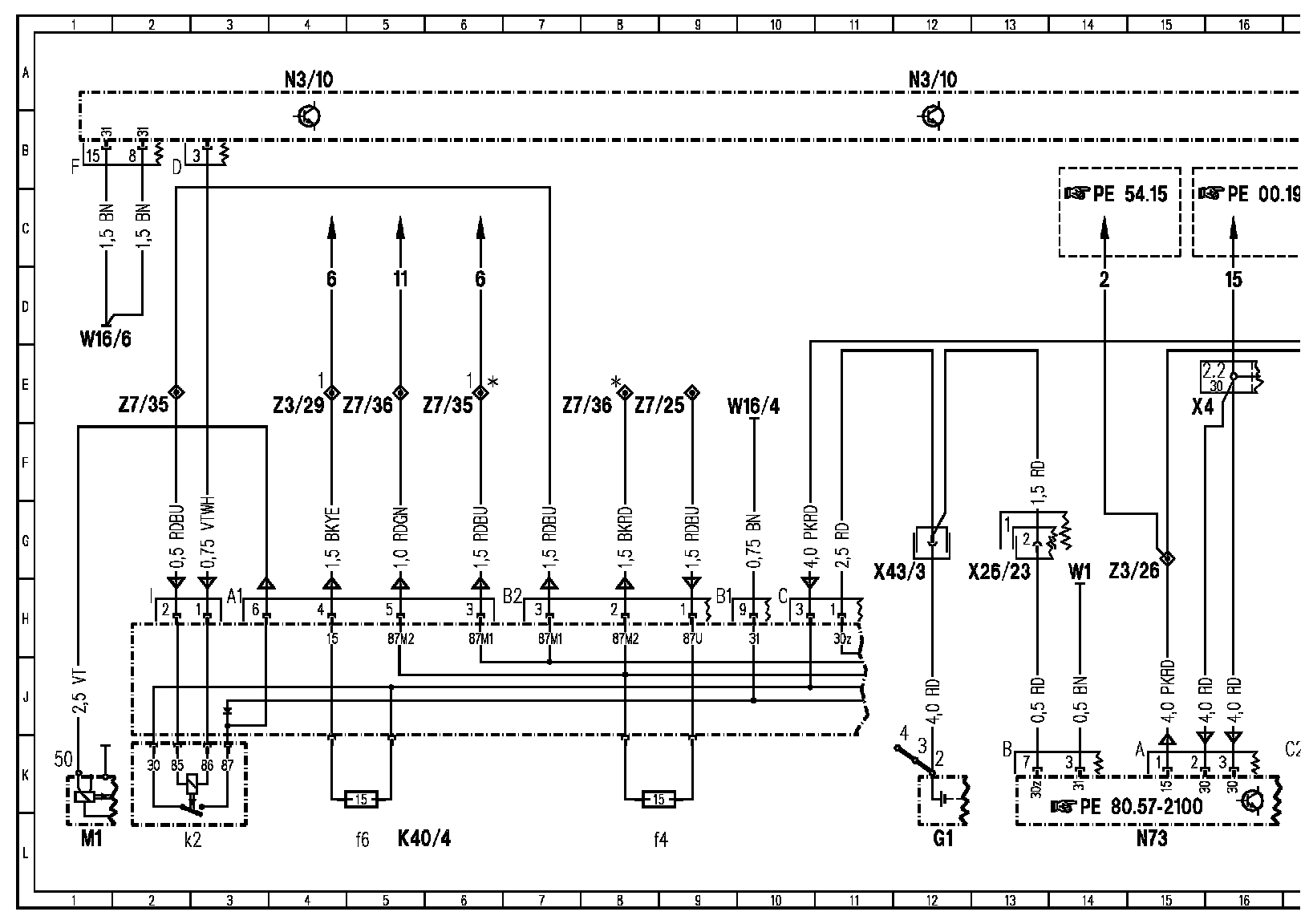

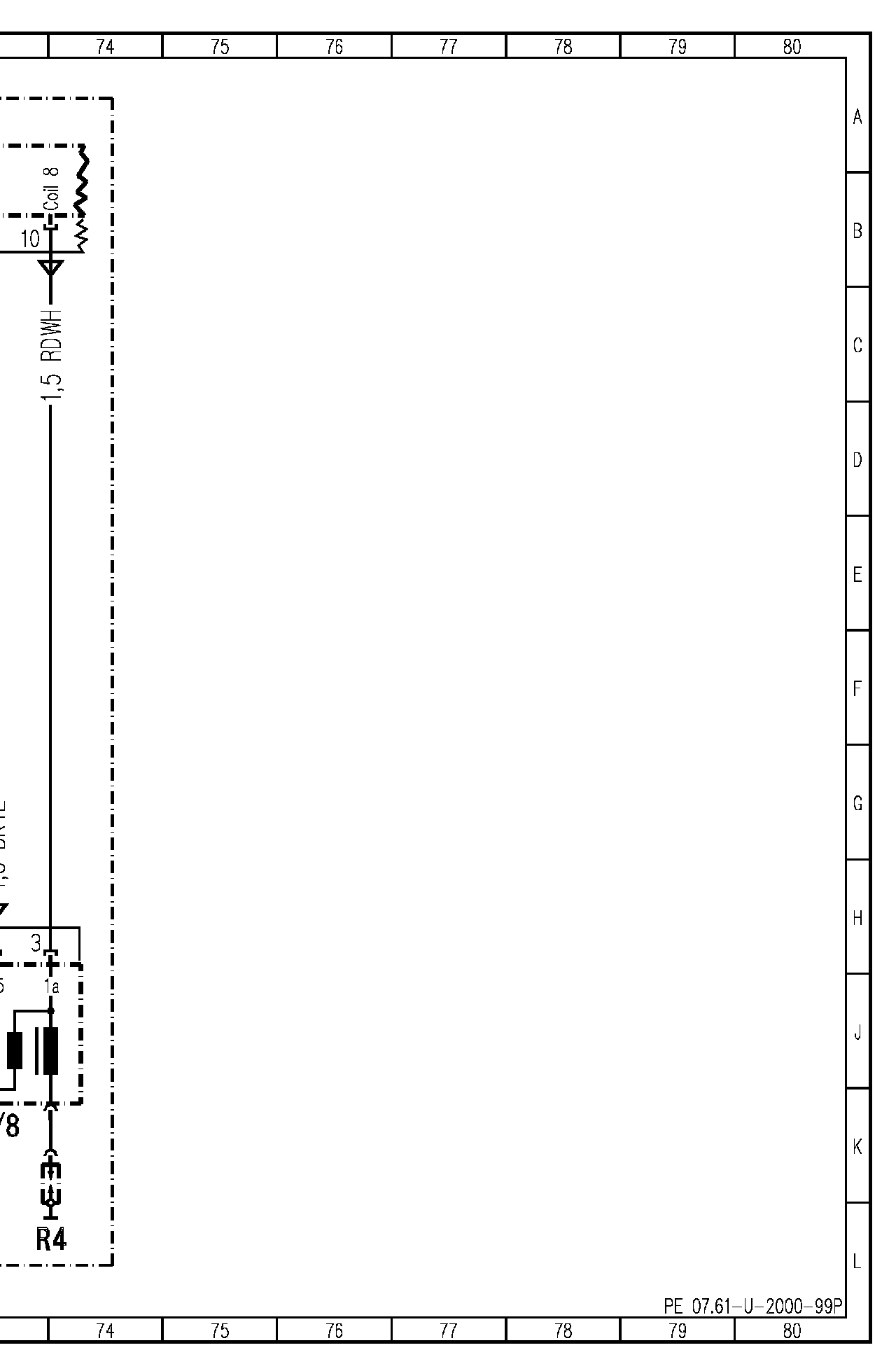

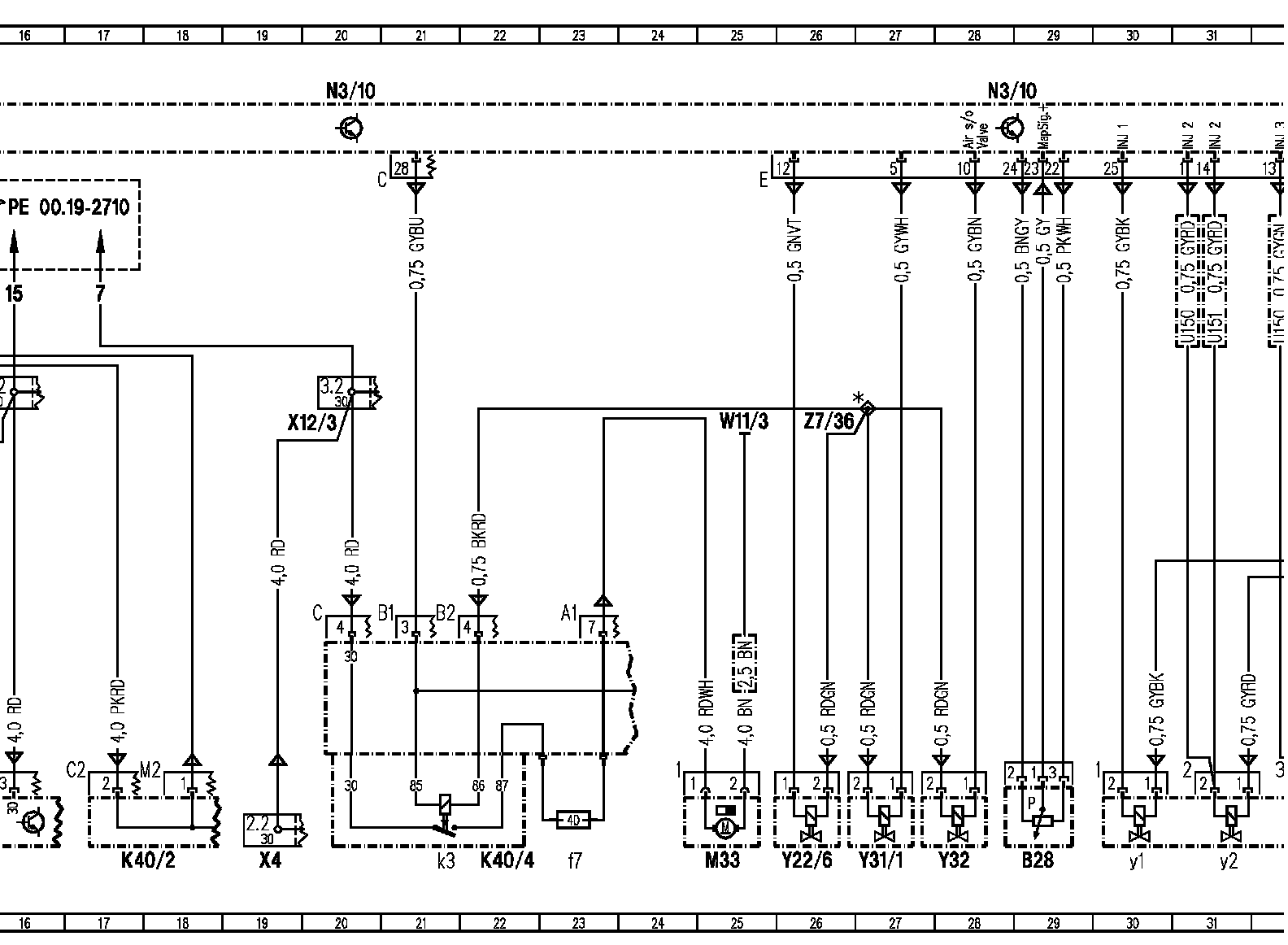

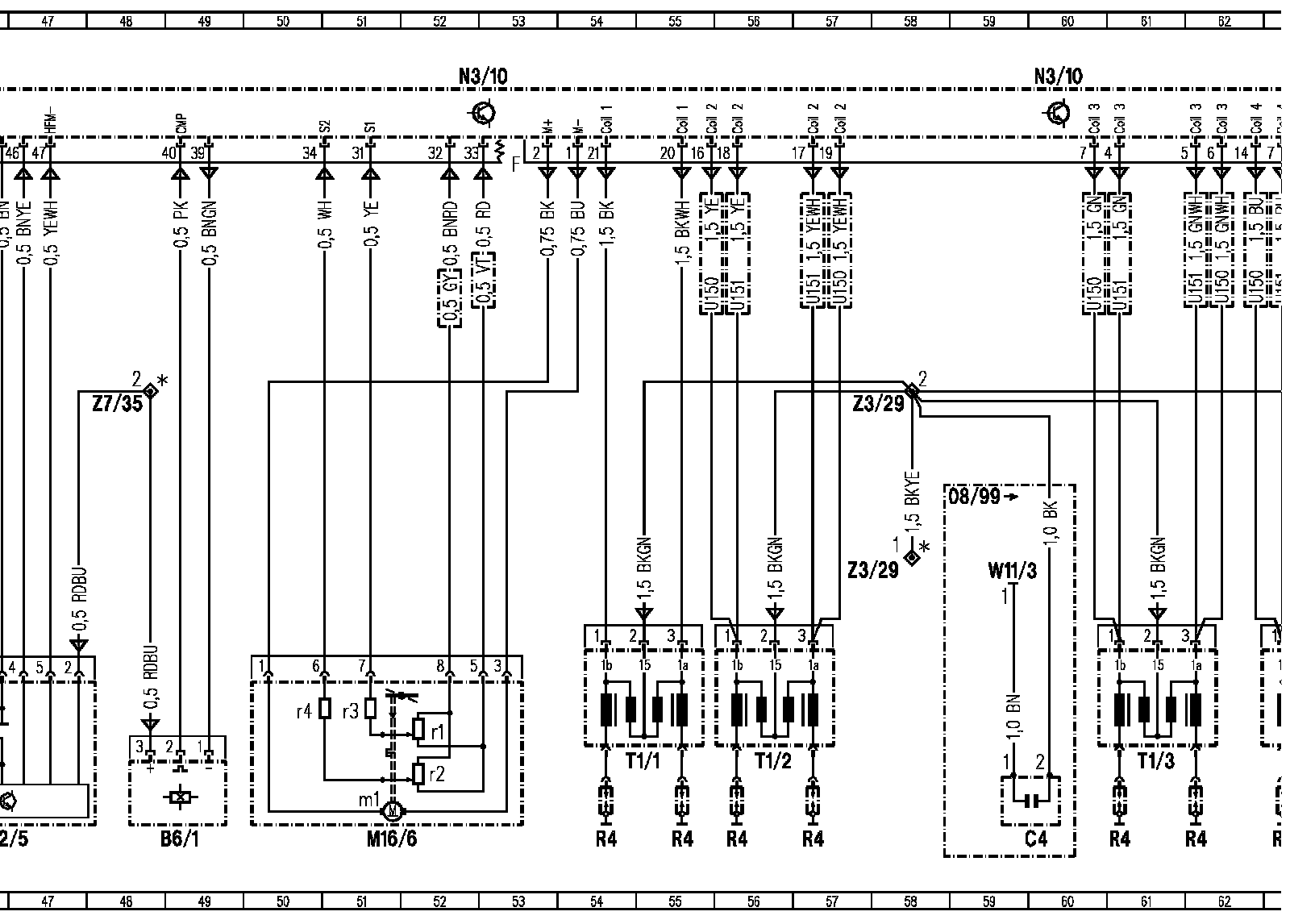

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

Wiring Diagram, Part 6:

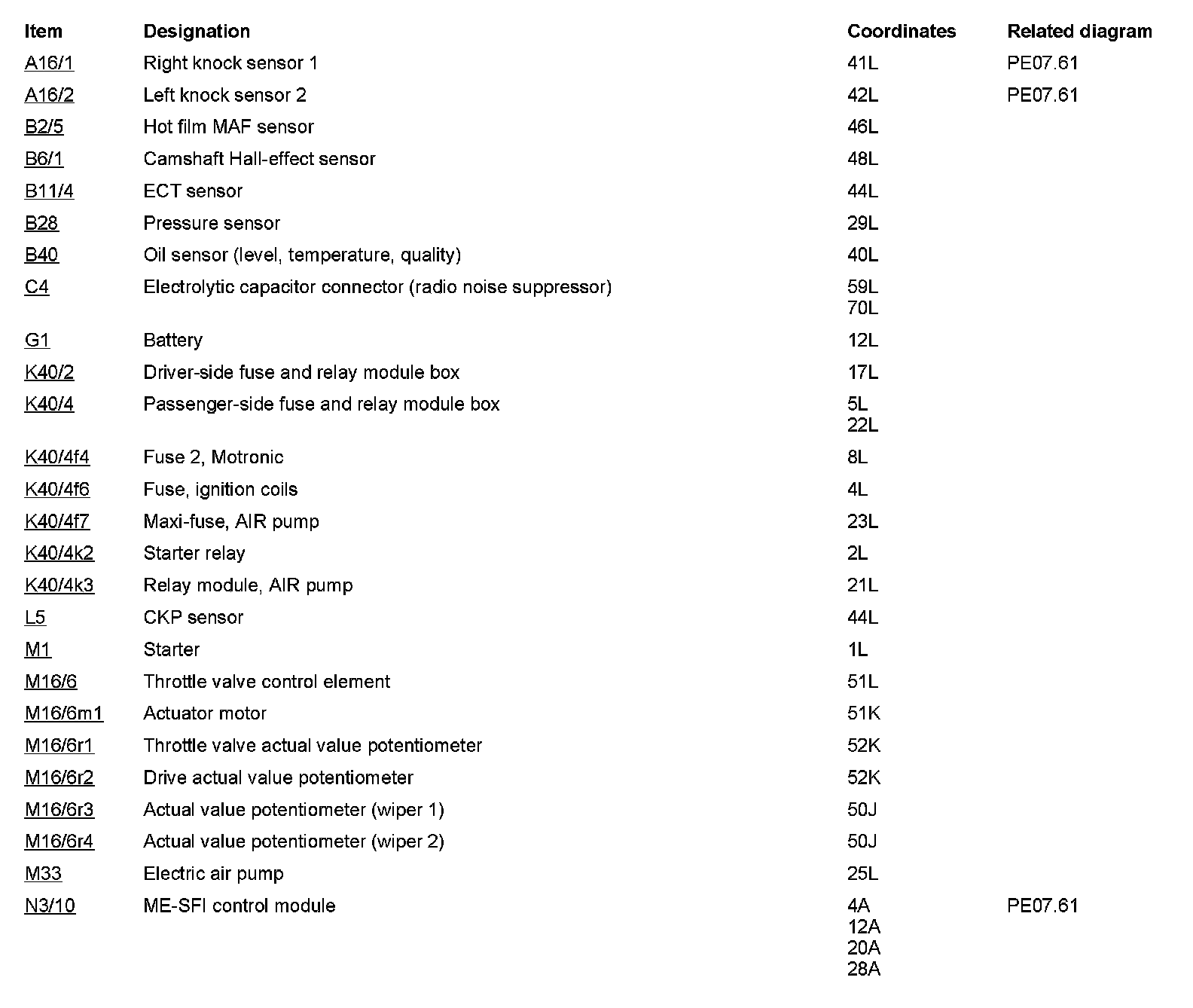

Component Description/Coordinates, A16/1 To N3/10:

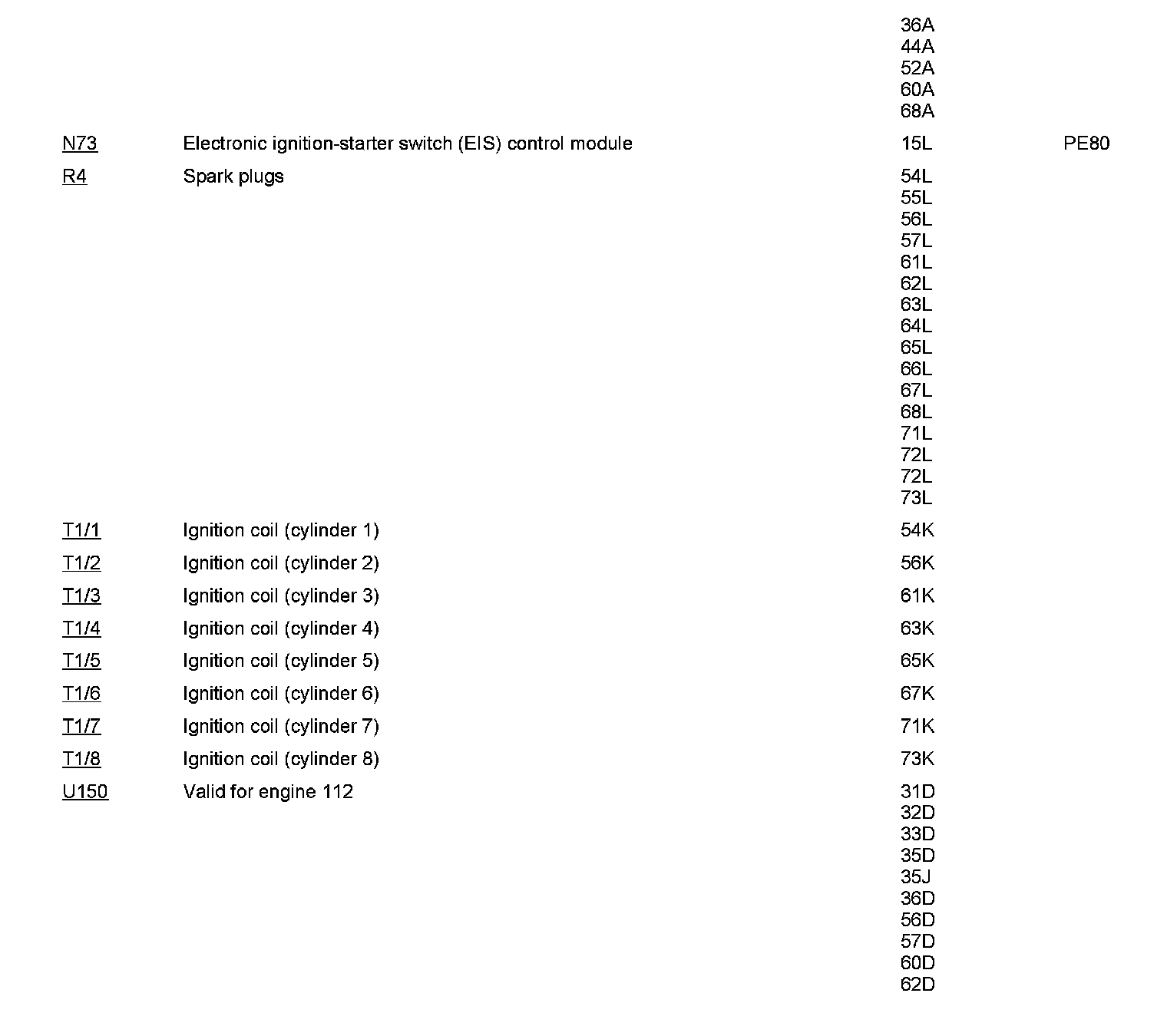

Component Description/Coordinates, N73 To U150:

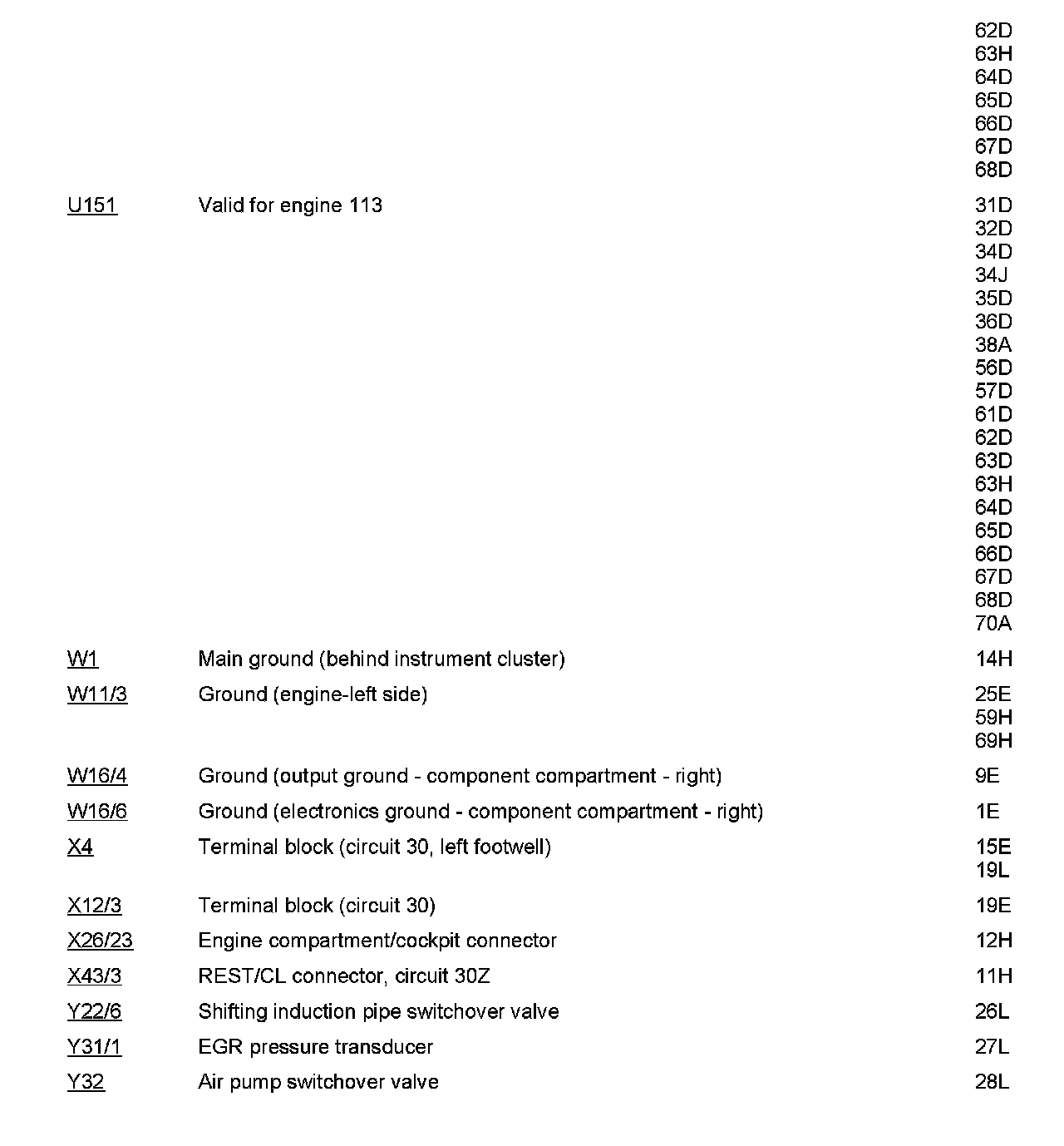

Component Description/Coordinates, U151 To Y32:

Component Description/Coordinates, Y62 To Z7/36:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
