Circuit 15C Wiring PE00.19-U-2721XA
Circuit 15C Wiring PE00.19-U-2721XA

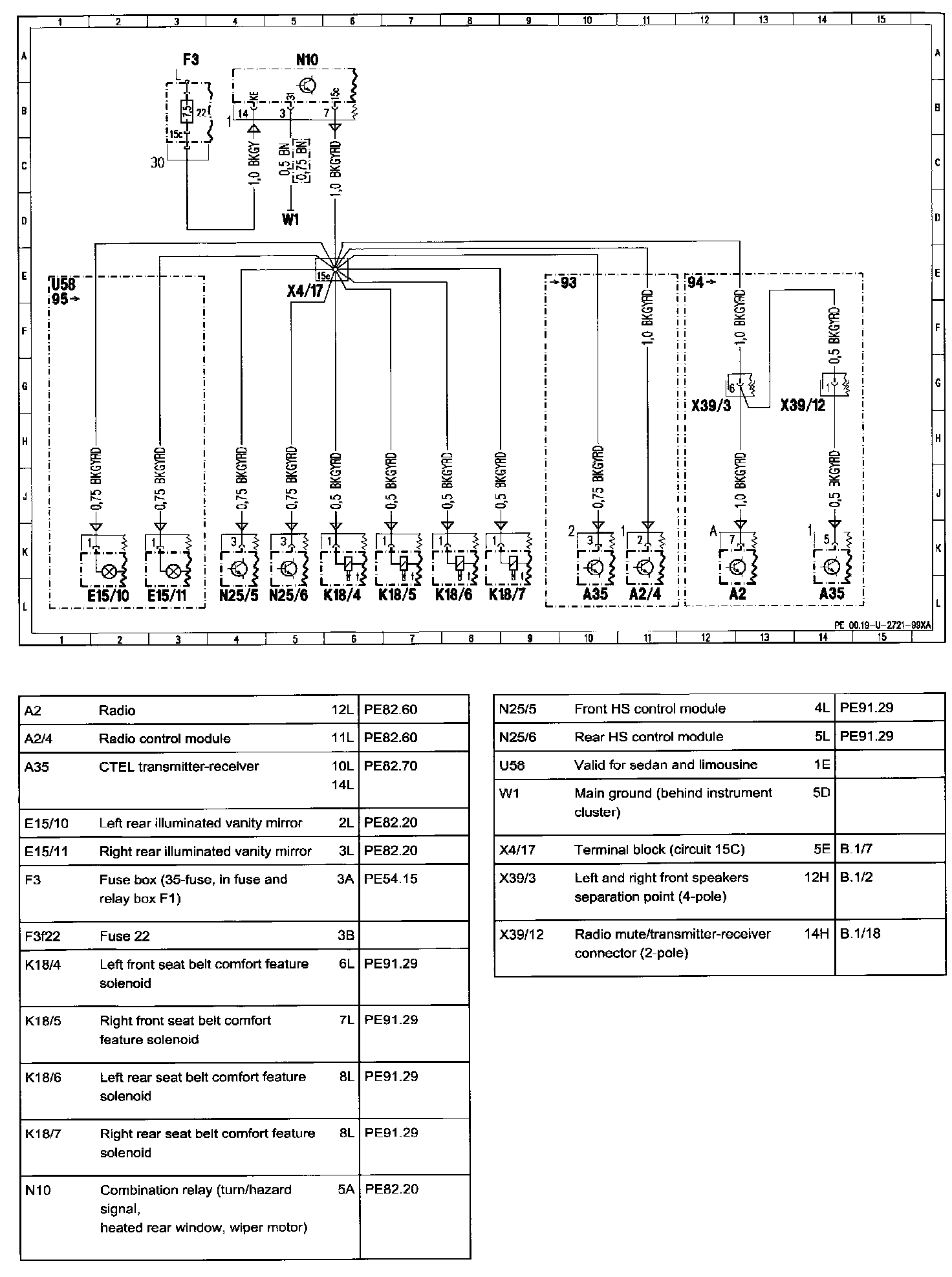

PE00.19-U-2721-XA - Voltage Distribution Via Terminal Block X 4/17:
